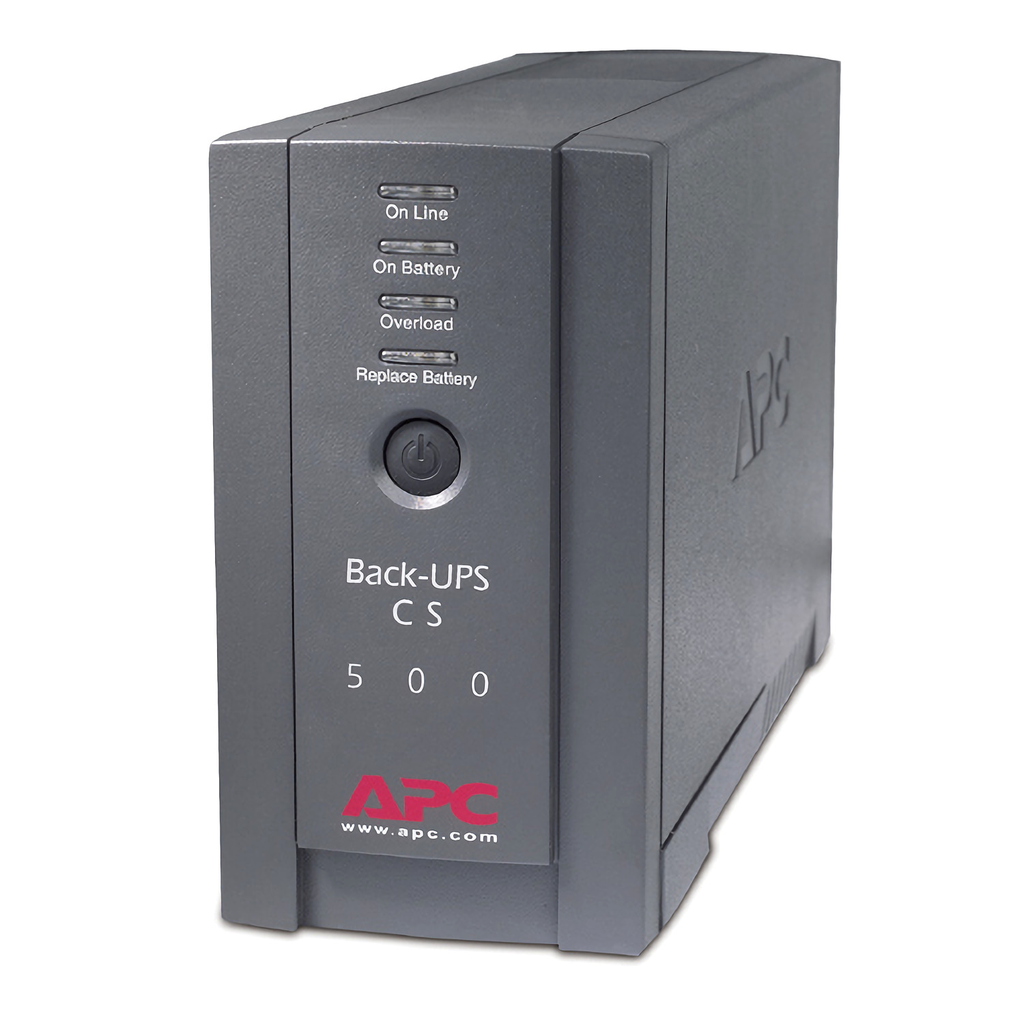

This APC Back-UPS offers power and surge protection for wireless networks, computers, gaming consoles and other electronics in your home or business. The 500VA tower UPS has 6 total outlets, 3 of which are battery backup, and 3 that are surge protection only. The UPS has a surge energy rating of 480 Joules. It provides data line protection with a RJ45 analog phone line for phone, fax, modem or DSL. This UPS has a 2-year warranty.

• Features
• Compact size accommodates installation in various environments
• LED display for easy-to-read status of unit and utility power conditions
• Easy-to-use auto-shutdown software with power and energy management features
• Data line protection helps protect equipment from surges
• Restore power backup capacity with user-replaceable battery (RBC2 sold separately)
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Communications & Management Attributes
• Control Panel : LED status display with on line : on battery : replace battery and overload indicators, LED Status display with On Line : On Battery
• Alarm : alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
• Physical Attributes
• Cable Length : 6 ft
• Color : Black
• Conformance Attributes
• Product Certifications : cUL Listed, California (CEC) Battery Charger, ENERGY STAR V2.0 (USA), Industry Canada
• Complementary Attributes
• Curve Load Maximum : 100 %
• Curve Load Minimum : 1 %
• Curve X Axis Maximum : 100 %
• Curve X Axis Minimum : 0 %
• Curve Y Axis Maximum : 100 %
• Curve Y Axis Minimum : 50 %
• Maximum Configurable Power In VA : 500 VA
• Rated Power In VA : 500 VA
• Rated Power In W : 300 W
• Important Information Attributes
• Persona Type Ids : EUA, OM, SC, VR
• Persona Type Names : Consumer, Original Equipment Manufacturer, Electrician, IT Channel Partner
• Market Segmentation Id : RESIDENTIAL, COMMERCIAL, INDUSTRIAL
• Market Segmentation : Residential, Commercial, Industrial
• Mounting Mode : tower, not rack-mountable
• Output Connection Type : 3 NEMA5-15R, 3 NEMA5-15Rsurge
• Provided Equipment : CD with software, Cord management straps, User Manual, USB cable
• Carbon Footprint Of The Distribution Phase A4 : 0.7177454545454545, 0.7 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.6 kg CO2 eq., 0.6330818181818182
• Carbon Footprint Of The Installation Phase A5 : 0, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 67 kg CO2 eq., 66.59363636363636
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 179 kg CO2 eq., 179.43636363636364
• Warranty In Months : 12 Battery, 36 UPS
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-09
• Pre Comm Date : 2000-12-05
• Manufacturer : American Power Conversion Corp. (APC)
• Device Type : UPS - Computer and Peripheral
• Serviceability : No
• Traceability : Yes
• Field Service Division : SPIBS
• Average Life Duration : 5 year(s)
• Service Catalog Item : Finished good
• Legacy WEEE Scope : In
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1712010_EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Dangerous Goods Code : BATTERIES WET NON SPILLABLE (ELECTRIC STORAGE or LEAD ACID)
• Function Option Id : STANDARD
• Function Option : Standard
• Acoustic Level : 45 dBA
• Curve Equation : efficiency
• Curve Load Maximum : 100 %
• Curve Load Minimum : 1 %
• Curve Test Cond Id : Curve fit of data measured in accordance with the US DOE Test Procedure for Uninterruptible Power Supplies. All measurements taken in normal mode(s), at typical environmental conditions, with 120V/60Hz electrical input and balanced resistive load (PF = 1.0) output.
• Curve X Axis Maximum : 100 %
• Curve X Axis Minimum : 0 %
• Curve X Axis Title : load
• Curve X Axis Units : percentage
• Curve Y Axis Maximum : 100 %
• Curve Y Axis Minimum : 50 %
• Curve Y Axis Title : efficiency
• Curve Y Axis Units : percentage
• Efficiency At Full Load : 98...140 V
• Energy Efficiency Optimized : Energy efficient product
• Filtering : Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : mee
• Input Connection Type : NEMA 5-15P
• Maximum Configurable Power In VA : 500 VA
• Mounting Location : front
• Mounting Preference : no preference
• Number Of Tare Power : 7 W
• Package Weight Lbs : 6.95 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : uninterruptible power supply (UPS)
• Range Of Product : Back-UPS
• Redundant : No
• Returnability : Yes
• Show Note Op Temperature : No
• Size Ups Version : Workstation
• Surge Energy Rating : 480 J
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 248 kg CO2 eq.
• Transfer Time : 8ms typical : 12ms maximum
• Typical Recharge Time : 8 h
• Ups Connectivity : USB port
• Ups Size : WS
• Usb Compatible : Yes
• Waveform Type : Stepped approximation to a sinewave
• Medium Desc : APC Back-UPS, 500VA, Tower, 120V, 6 NEMA 5-15R Outlets , User Replaceable Battery
• Stocking Flag : Y
• Product Kit Identifier : N
• Battery Charge Power Watts3 : 13 W rated
• Output Frequency Sync To Mains3 : 50/60 Hz +/- 3 Hz sync to mains
• Max Configurable Power Watts3 : 300 W
• Pep Code : ENVPEP1712010EN
• Database Version : 2025-30
• Pep Verification Date : 2025-10-25
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0010-ed1.1-EN-2015 10 16
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : The functional unit is the transmission of electricity between electrical/electronic equipment and a power source for a distance of 2.5m for up to 10A of current at 230V AC
• Functional Unit Unit : unit
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; High voltage; 2020; Asia Pacific, APAC
• Energy Model Installation A5 2 : No energy used
• Energy Model Use B6 2 : Electricity Mix; Low voltage; 2020; Europe, EU-27
• Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
• Global Commercial Status : Commercialised
• Type Of Usb Power Supply : none
• Environment Attributes Main
• EU ROHS Directive : Compliant By Exemption , Compliant with Exemptions
• ROHS Exemption Information : Yes
• Take Back : Yes
• Energy Star : ENERGY STAR UPS V2.0 (USA)
• Recycled Metal Content At Cr Level : 0 %
• Mercury Free : Yes
• Optimized Energy Efficiency : Energy efficient product
• Carbon Footprint : 247.6727272727273
• Ambient Air Temperature For Operation : 0-40 °C
• Ambient Air Temperature For Storage : -15-45 °C
• Circularity Profile : ENVEOLI1712010_EN
• Environmental Disclosure : ENVPEP1712010EN
• Online Thermal Dissipation : 24 Btu/h
• Operating Altitude : 0...10000 ft
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 0-95 %
• Storage Altitude : 0-50000 ft
• Storage Relative Humidity : 0-95 %
• Pep Code : ENVPEP1712010EN
• Pep Verification Date : 2025-10-25
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0010-ed1.1-EN-2015 10 16
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Provided Equipment : CD with software, Cord management straps, User Manual, USB cable
• Product Or Component Type : uninterruptible power supply (UPS)
• Range Of Product : Back-UPS
• Output Attributes
• Output Voltage : 120 V AC 1 phase
• Surge Protection And Filtering Attributes
• Filtering : Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : mee
• Surge Energy Rating : 480 J
• Contractual Warranty Attributes
• Warranty Period : 3 years repair or replace
• Warranty : 3 years repair or replace
• Input Attributes
• Efficiency At Full Load : 98...140 V
• Input Frequency : 50/60 Hz +/- 3 Hz auto-sensing
• Main Input Voltage : 120 V AC 1 phase
• Specifications
• Depth : 284 mm
• Batteries & Runtime Attributes
• Removable Battery : USER_REPLACEABLE, User replaceable
• Battery Curve : B
• Battery Life : 4-6 year(s)
• Battery Power In VAH : 78 VAh runtime
• Battery Size : lead-acid internal included
• Battery Slots Empty : 0
• Battery Type : Lead-Acid battery
• Included Battery Modules : 0
• Battery Graph Comments : This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several variables including battery age, battery charge level, environmental conditions and characteristics of the connected load.
