ADVANCE

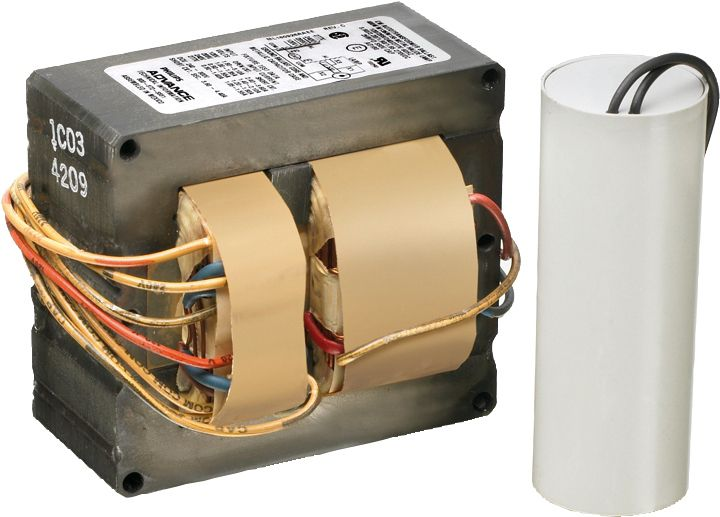

CORE & COIL HID MH BAL 1500W M48 QUAD KIT

BALLAST - MH 1500W MULTITAP

ADV71A6772001 71A6772001 781087677216
387.69 / EA
http://schema.org/OutOfStock
Mayer-DDS-CORE & COIL HID MH BAL 1500W M48 QUAD KIT-1
  • Ballast Type: Magnetic HID
  • Frequency: 60 Hz
  • Input Current: 5.9 A
  • Input Wattage: 1610 W
  • Lamp Type: MH
  • Lamp Wattage: 1500 W
  • Length: 5.4 in, 6 in
  • Power Factor: 0.90
  • Width: 3.9 in, 4.3 in
  • Wire Type: Stranded
The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire. The core and coil also forms the nucleus of Philips Advance's five other ballast configurations.
QTY
  • Product Description
  • Specifications
The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire. The core and coil also forms the nucleus of Philips Advance's five other ballast configurations.
  • Product Data
    • Bar code on case : 30781087677217
    • Full product name : MH BAL 1500W M48 QUAD KIT
    • Skus/Case : 1
    • Short product name : MH BAL 1500W M48 QUAD KIT
    • Logistics code(s) : 913700574909
    • Bar code on pack : 781087677216
    • eop_net_weight_pp : 14.302 kg
    • Pieces per Sku : 1
    • Product number : 71A6772001
  • idw_core
    • catalog : 71A6772001
    • idwItemCtrl : 781087677216
    • upc : 781087677216
    • gtin : 00781087677216
    • brandLabel : PHILIPS ADVANCE
    • unspsc : 39101902
    • igcc : 3708
    • idwIndex : 7588287
    • sequenceId : 807
  • Product Dimensions
    • Length A3 : 4.4 in
    • Length A1 : 6 in
    • Length A2 : 5.4 in
    • Coil Depth C1 : 6.7 in
    • Stack Height C2 : 4.7 in
    • Width B2 : 3.9 in
    • Width B1 : 4.3 in
  • Wiring Characteristics
    • Wire Length by Color : 12"
    • Wire Type : Stranded
    • Recommended Fuse : 30/25/20/15 A
    • Allowed Wiring Config(Remote) : Yes
    • Max Dist. Ball to Lamp(Remote) : Determined by AWG used
    • Wire Striplength : 0.5 mm
  • General Characteristics
    • Circuit Type : CWA
    • Capacitor Dia/Oval Dim : 2 in
    • Ignitor Catalog Number : NA
    • Ignitor Temp Rating : NA
    • Capacitor Requirements : 525V
    • Input Current (Operating) : 13.4/7.8/6.8/5.9 A
    • Capacitor value [μF] : 32 MFD
    • Family Name : Core & Coil MH High Power
    • Capacitor Height : 3.75 in
    • Lamp Type : 1500W MH
    • Suitable for Outdoor use? : Yes
    • Number of Lamps : 1 piece
    • Line Voltage : 120/208/240/277 V
    • Capacitor Temp Rating : 90°C
    • Line Frequency : 60 Hz
    • Core Size : 4 1/4 x 6 (2 Coil NB)
    • Base Model : 71A6772
    • Capacitor Catalog Number : MD3202100
    • Ballast Type : Magnetic HID
  • Operating Characteristics
    • Ballast factor : 1 -
    • Power Factor : 0.90
    • Input Power Gear : 1610 W
    • Input Current (Starting) : 10.8/6.13/5.42/4.72 A
    • Constant wattage deviation : 12%
    • Nominal Open Circuit Voltage : 460 V
    • Input Current Short Circuit : 9.1-13.6/5.22-7.83/4.56-6.84/3.96-5.95 V
    • Input Voltage at Lamp Dropout : 70/120/135/150 V
    • Automatic restart : No
    • Inp. Current (Open Circuit) : 5.72/3.29/3.04/2.57 A
    • Secondary ShortCircuit Current : 7.29-8.9 A
  • Approval & Application Chars
    • CCC certificate : No
    • Approbation Marks : ULR, CSA, RoHS
    • cUL certificate : No
    • CE marking : No
    • UL Recognized : Yes
    • Temperature marking : G/E/E/G
    • HiPot Test (1 minute) : 2000 V
    • UL Listed : No
    • NOM certificate : No
    • CEC Listing : No
    • ANSI Code : M48
    • UL Temperature Code : 1029G
    • VDE certificate : No
    • SASO Certificate : No
    • RoHS Compliant : Yes
    • EISA : No
    • HiPot Test (2 seconds) : 2500 V
    • Chia Quality Certificate : No
    • UL Insulation Class : H(180°C)
    • FIDE Certificate : No
    • ETL Certificate : No
    • Open Circ Voltage Test (Volts) : 414-506 V
    • CSA certificate : Yes
  • System Chars On Driver Level
    • Rated Lamp Watts : 1500W
