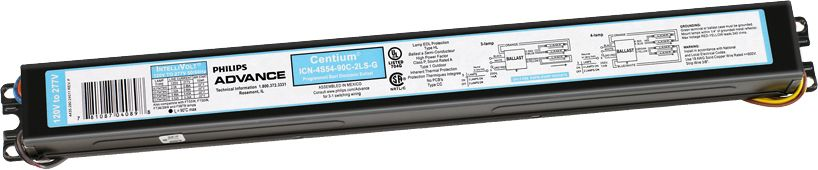

CENTIUM ELE BALLAST (4) F54T5/HO 347-480V

CENTIUM ELE BALLAST (4) F54T5/HO 347-480V

ADVHCN4S5490C2LSG35I HCN4S5490C2LSG35I 781087047880
528.08 / EA
  • Ballast Type: Electronic Fluorescent
  • Frequency: 50/60 Hz
  • Height: 1.18 in
  • Housing Material: Metal
  • Input Voltage: 347-480 V
  • Input Wattage: 239-237 W
  • Lamp Type: F54T5/HO
  • Lamp Wattage: 54 W
  • Length: 16.34 in, 16.70 in
  • Power Factor: 0.98
  • Width: 1.70 in
  • Wire Size: 18 AWG
  • Wire Type: Solid
No matter what the conditions require, operating at a variety of line voltages between 120V to 480V, whether located in high ambient temperature environments (requiring a 90° C rating) or not, our family of Philips Advance Centium ballasts are ideal for a wide variety of applications.
  • Product Description
  • Specifications
No matter what the conditions require, operating at a variety of line voltages between 120V to 480V, whether located in high ambient temperature environments (requiring a 90° C rating) or not, our family of Philips Advance Centium ballasts are ideal for a wide variety of applications.
  • Rated Lamp Watts : 54W
  • idw_core
    • upc : 781087047880
    • catalog : HCN4S5490C2LSG35I
    • gtin : 00781087047880
    • sequenceId : 182
    • unspsc : 39101901
    • idwIndex : 9350805
    • idwItemCtrl : 781087047880
    • brandLabel : PHILIPS ADVANCE
    • igcc : 3700
  • Power Factor : 0.98
  • Input Power Gear : 239-237 W
  • Max THD : 10 %
  • Ballast Efficacy Factor : 0.42 -
  • Ballast factor : 1 -
  • Ignition time : 1.5 s
  • Lamp Current Crest Factor : 1.7 -
  • Automatic restart : Yes
  • Sound Rating : A
  • Approbation Marks : UL, CSA, RoHS
  • CEC Listing : Yes
  • SASO Certificate : No
  • CEE Rated : No
  • Energy Star : No
  • Circle E logo : No
  • CSA E : No
  • CSA certificate : Yes
  • NOM certificate : No
  • RoHS Compliant : Yes
  • UL Listed : Yes
  • EMC Immunity : FCC Non-Consumer
  • FIDE Certificate : No
  • NEMA Premium : No
  • DOE : No
  • cUL certificate : No
  • UL Recognized : No
  • Color output terminals : No terminals
  • Allowed Wiring Config(Remote) : Yes
  • Allowed Wiring Config(Through) : Yes
  • Wire Type : Solid
  • Connector type : No connector
  • Color input terminals : No terminals
  • Lamp Connection : Series
  • Max Dist. Ball to Lamp(Remote) : 20'
  • Wire Gauge : 18AWG
  • Wire Striplength : 0.50/0.375 mm
  • Max Dist.Ball to Lamp(Through) : Blue & Brown = 20'
  • Allowed Wiring Config(Tandem) : Yes
  • Max Dist. Ball to Lamp(Tandem) : Blue & Brown = 20'
  • Wire Length by Color : See data sheet
  • Width B1 : 1.70 in
  • Length A1 : 16.70 in
  • Length A2 : 16.34 in
  • Height C1 : 1.18 in
  • Bar code on pack : 781087047880
  • Product number : HCN4S5490C2LSG35I
  • Short product name : ELE BALLAST (4) F54T5/HO 347-480V
  • eop_net_weight_pp : 1.212 kg
  • eop_pck_cfg : 6
  • Pieces per Sku : 1
  • Skus/Case : 6
  • Bar code on case : 30781087047881
  • Full product name : ELE BALLAST (4) F54T5/HO 347-480V
  • Logistics code(s) : 913710268701
  • T-case maximum : 90 C
  • Housing Dimensions : 16.7" x 1.7" x 1.18"
  • Housing : G
  • Base Model : HCN4S5490C2LSG
  • Number of Lamps : 3/4 piece
  • Starting Method : Programmed Start
  • Input Voltage : 347-480 V
  • Lamp Type : F54T5/HO
  • Suitable for Outdoor use? : Yes
  • Line Frequency : 50/60 Hz
  • Housing Material : Metal
  • Ballast Type : Electronic Fluorescent
  • Family Name : Centium
