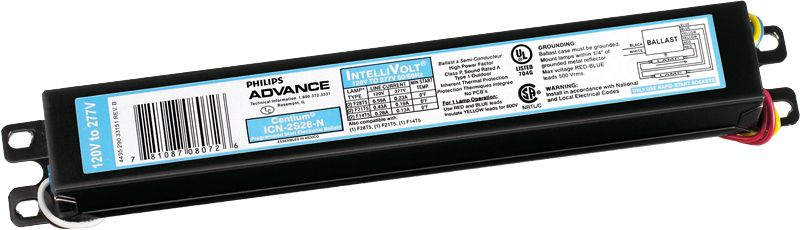

CENTIUM ELE BALLAST (2) F28T5 120-277V

CENTIUM ELE BALLAST (2) F28T5 120-277V

ADVICN2S28N35I ICN2S28N35I 781087080726
174.28 / EA
  • Ballast Type: Electronic Fluorescent
  • Frequency: 50/60 Hz
  • Height: 1.00 in
  • Housing Material: Metal
  • Input Voltage: 120/277 V
  • Input Wattage: 63-62 W
  • Lamp Type: F28T5
  • Lamp Wattage: 28 W
  • Length: 8.90 in, 9.50 in
  • Power Factor: 0.98
  • Width: 1.30 in
  • Wire Size: 18 AWG
  • Wire Type: Solid
Philips Advance Centium ballasts for T5 lamps at 120-277V are now available with our industry leading N-can at 9.5" x 1.3" x 1.0" or T-can at 14.17" x 1.18" x 1.06", which provides fixture manufacturers increased versatility in their newer generation fixture designs. These ballasts are compatible with all major energy-saving T5 linear lamps and have a variety of other features which makes them ideal for a variety of applications. The ballasts' programmed start ignition provides extended lamp life in frequent switching applications such as those where occupancy sensors are being used. They also feature lamp End-Of-Life (EOL) protection circuitry which safely removes power from the lamp at the end of lamp life.
  • Product Description
  • Specifications
Philips Advance Centium ballasts for T5 lamps at 120-277V are now available with our industry leading N-can at 9.5" x 1.3" x 1.0" or T-can at 14.17" x 1.18" x 1.06", which provides fixture manufacturers increased versatility in their newer generation fixture designs. These ballasts are compatible with all major energy-saving T5 linear lamps and have a variety of other features which makes them ideal for a variety of applications. The ballasts' programmed start ignition provides extended lamp life in frequent switching applications such as those where occupancy sensors are being used. They also feature lamp End-Of-Life (EOL) protection circuitry which safely removes power from the lamp at the end of lamp life.
  • T-case maximum : 70 C
  • Skus/Case : 10
  • Bar code on case : 30781087080727
  • eop_net_weight_pp : 0.373 kg
  • Full product name : ELE BALLAST (2) F28T5 120-277V
  • Pieces per Sku : 1
  • Product number : ICN2S28N35I
  • Short product name : ELE BALLAST (2) F28T5 120-277V
  • Logistics code(s) : 913710891601
  • Bar code on pack : 781087080726
  • Connector type : No connector
  • Wire Striplength : 0.50/0.375 mm
  • Wire Gauge : 18AWG
  • Max Dist. Ball to Lamp(Tandem) : Blue = 10'
  • Wire Length by Color : See data sheet
  • Allowed Wiring Config(Tandem) : Yes
  • Max Dist. Ball to Lamp(Remote) : 20'
  • Allowed Wiring Config(Through) : Yes
  • Max Dist.Ball to Lamp(Through) : Blue = 10'
  • Wire Type : Solid
  • Allowed Wiring Config(Remote) : Yes
  • Color output terminals : No terminals
  • Color input terminals : No terminals
  • Lamp Connection : Series
  • Length A1 : 9.50 in
  • Length A2 : 8.90 in
  • Height C1 : 1.00 in
  • Width B1 : 1.30 in
  • Housing Dimensions : 9.5" x 1.3" x 1.0"
  • Number of Lamps : 1/2 piece
  • Suitable for Outdoor use? : Yes
  • Line Frequency : 50/60 Hz
  • Housing Material : Metal
  • Housing : N
  • Starting Method : Programmed Start
  • Base Model : ICN2S28N
  • Ballast Type : Electronic Fluorescent
  • Family Name : Centium
  • Input Voltage : 120-277 V
  • Lamp Type : F28T5
  • idw_core
    • sequenceId : 320
    • brandLabel : PHILIPS ADVANCE
    • gtin : 00781087080726
    • idwItemCtrl : 781087080726
    • catalog : ICN2S28N35I
    • upc : 781087080726
    • idwIndex : 10615053
    • unspsc : 39101901
    • igcc : 3700
  • Rated Lamp Watts : 28W
  • Ignition time : 1.5 s
  • Ballast factor : 1.03 -
  • Input Power Gear : 63-62 W
  • Power Factor : 0.98
  • Ballast Efficacy Factor : 1.62 -
  • Lamp Current Crest Factor : 1.7 -
  • Max THD : 10 %
  • Sound Rating : A
  • Automatic restart : Yes
  • NEMA Premium : No
  • RoHS Compliant : Yes
  • DOE : No
  • cUL certificate : No
  • EMC Immunity : FCC Non-Consumer
  • Energy Star : No
  • Approbation Marks : UL, CSA, RoHS
  • SASO Certificate : No
  • Circle E logo : No
  • UL Listed : Yes
  • UL Recognized : No
  • CSA certificate : Yes
  • CSA E : No
  • FIDE Certificate : Yes
  • NOM certificate : Yes
  • CEC Listing : Yes
  • CEE Rated : No
