ADVANCE

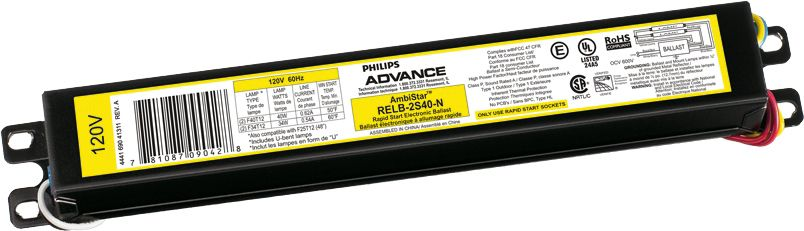

AMBISTAR ELE BALLAST (2) F40T12 120V

ADV RELB2S40N35I ELE BALLAST (

ADVRELB2S40N35I RELB2S40N35I 781087090428
28.03 / EA
http://schema.org/OutOfStock
Mayer-DDS-AMBISTAR ELE BALLAST (2) F40T12 120V-1
  • Ballast Type: Electronic Fluorescent
  • Frequency: 60 Hz
  • Height: 1 in
  • Housing Material: Metal
  • Input Current: 0.62 A
  • Input Voltage: 120 V
  • Input Wattage: 72 W
  • Lamp Type: F40T12
  • Lamp Wattage: 40 W
  • Length: 8.90 in, 9.50 in
  • Power Factor: 0.98
  • Width: 1.30 in
  • Wire Size: 18 AWG
  • Wire Type: Solid
QTY
  • Specifications
  • Product Data
    • Product number : RELB2S40N35I
    • Logistics code(s) : 913701218101
    • Pieces per Sku : 1
    • Skus/Case : 10
    • Short product name : ELE BALLAST (2) F40T12 120V
    • Bar code on pack : 781087090428
    • Bar code on case : 30781087090429
    • eop_net_weight_pp : 0.341 kg
    • Full product name : ELE BALLAST (2) F40T12 120V
  • Temperature Characteristics
    • T-case maximum : 70 C
  • idw_core
    • catalog : RELB2S40N35I
    • idwItemCtrl : 781087090428
    • upc : 781087090428
    • gtin : 00781087090428
    • brandLabel : PHILIPS ADVANCE
    • unspsc : 39101901
    • igcc : 3700
    • idwIndex : 11131847
    • sequenceId : 369
  • Product Dimensions
    • Length A1 : 9.50 in
    • Height C1 : 1.00 in
    • Width B1 : 1.30 in
    • Length A2 : 8.90 in
  • Wiring Characteristics
    • Max Dist. Ball to Lamp(Tandem) : Red = 10'
    • Color output terminals : No terminals
    • Allowed Wiring Config(Remote) : Yes
    • Allowed Wiring Config(Through) : Yes
    • Max Dist.Ball to Lamp(Through) : Red = 10'
    • Connector type : No connector
    • Wire Type : Solid
    • Wire Striplength : 0.50/0.375 mm
    • Lamp Connection : Series
    • Allowed Wiring Config(Tandem) : Yes
    • Wire Length by Color : See data sheet
    • Max Dist. Ball to Lamp(Remote) : 20'
    • Wire Gauge : 18AWG
    • Color input terminals : No terminals
  • General Characteristics
    • Housing : N
    • Number of Lamps : 1/2 piece
    • Suitable for Outdoor use? : Yes
    • Lamp Type : F40T12
    • Line Frequency : 60 Hz
    • Base Model : RELB2S40N
    • Housing Dimensions : 9.5" x 1.3" x 1.0"
    • Housing Material : Metal
    • Ballast Type : Electronic Fluorescent
    • Input Current (Operating) : 0.62 A
    • Input Voltage : 120 V
    • Family Name : AmbiStar
    • Starting Method : Rapid Start
  • Operating Characteristics
    • Input Power Gear : 72 W
    • Ignition time : 1 s
    • Automatic restart : Yes
    • Ballast Efficacy Factor : 1.18 -
    • Sound Rating : A
    • Lamp Current Crest Factor : 1.7 -
    • Power Factor : 0.98
    • Ballast factor : 0.85 -
    • Max THD : 20 %
  • Approval & Application Chars
    • cUL certificate : No
    • Energy Star : Yes
    • UL Listed : Yes
    • EMC Immunity : FCC Consumer
    • CSA E : Yes
    • FIDE Certificate : No
    • NEMA Premium : No
    • CEE Rated : No
    • CEC Listing : Yes
    • CSA certificate : Yes
    • UL Recognized : No
    • SASO Certificate : No
    • DOE : Yes
    • Approbation Marks : UL, CSA, DOE, CSA-E, RoHS
    • Circle E logo : Yes
    • NOM certificate : No
    • RoHS Compliant : Yes
  • System Chars On Driver Level
    • Rated Lamp Watts : 40W
