ADVANCE

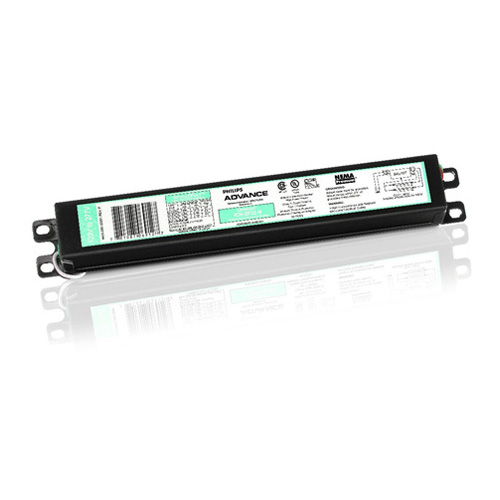

ADV ICN4P32N35I (ADVANCE) BALLAST T8 4-F17/F25/F28/F30/F32 FB16/FB24/FB29/FB30/FB32 3-F40T8 120/277V ELECTRONIC 0.88BF 112W 0.94A (REPL ICN4P32SC35I)

ADV ICN4P32N35I (ADVANCE) BALLAST T8 4-F17/F25/F28/F30/F32 FB16/FB24/FB29/FB30/FB32 3-F40T8 120/277V ELECTRONIC 0.88BF 112W 0.94A (REPL ICN4P32SC35I)

ADVICN4P32N35I ICN4P32N35I 781087091517
22.44 / EA
http://schema.org/OutOfStock
  • Ballast Type: Electronic Fluorescent
  • Frequency: 50/60 Hz
  • Height: 1 in
  • Housing Material: Metal
  • Input Voltage: 120/277 V
  • Input Wattage: 111-111 W
  • Lamp Type: F32T8
  • Lamp Wattage: 32 W
  • Length: 8.90 in, 9.50 in
  • Power Factor: 0.98
  • Width: 1.30 in
  • Wire Size: 18 AWG
  • Wire Type: Solid
Reliable and energy efficient Philips Advance's Centium commercial grade specifications, plus added benefits of lamp striation reduction technology.
QTY
  • Product Description
  • Specifications
Reliable and energy efficient Philips Advance's Centium commercial grade specifications, plus added benefits of lamp striation reduction technology.
  • idw_core
    • catalog : ICN4P32N35I
    • idwItemCtrl : 781087091517
    • upc : 781087091517
    • gtin : 00781087091517
    • brandLabel : PHILIPS ADVANCE
    • unspsc : 39101901
    • igcc : 3700
    • idwIndex : 11131836
    • sequenceId : 375
  • Product Data
    • Skus/Case : 10
    • Product number : ICN4P32N35I
    • Bar code on pack : 781087091517
    • Pieces per Sku : 1
    • Logistics code(s) : 913701220301
    • eop_net_weight_pp : 0.459 kg
    • Full product name : ELE BALLAST (4) F32T8 120-277V
    • Bar code on case : 30781087091518
    • Short product name : ELE BALLAST (4) F32T8 120-277V
  • General Characteristics
    • Starting Method : Instant Start
    • Housing Material : Metal
    • Ballast Type : Electronic Fluorescent
    • Line Frequency : 50/60 Hz
    • Number of Lamps : 3/4 piece
    • Housing : N
    • Housing Dimensions : 9.5" x 1.3" x 1.0"
    • Suitable for Outdoor use? : Yes
    • Input Voltage : 120-277 V
    • Family Name : Centium
    • Lamp Type : F32T8
    • Base Model : ICN4P32N
  • Approval & Application Chars
    • FIDE Certificate : No
    • CSA certificate : Yes
    • RoHS Compliant : Yes
    • UL Recognized : No
    • UL Listed : Yes
    • DOE : No
    • Energy Star : No
    • Circle E logo : No
    • SASO Certificate : No
    • EMC Immunity : FCC Non-Consumer
    • CEC Listing : Yes
    • NOM certificate : Yes
    • NEMA Premium : Yes
    • CEE Rated : Yes
    • cUL certificate : No
    • Approbation Marks : UL, CSA, NEMA Premium, RoHS
    • CSA E : No
  • Operating Characteristics
    • Input Power Gear : 111-111 W
    • Ballast Efficacy Factor : 0.8 -
    • Lamp Current Crest Factor : 1.7 -
    • Sound Rating : A
    • Ignition time : 0.1 s
    • Automatic restart : Yes
    • Ballast factor : 0.89 -
    • Max THD : 10 %
    • Power Factor : 0.98
  • Product Dimensions
    • Height C1 : 1.00 in
    • Length A1 : 9.50 in
    • Length A2 : 8.90 in
    • Width B1 : 1.30 in
  • Wiring Characteristics
    • Color output terminals : No terminals
    • Max Dist. Ball to Lamp(Remote) : ES = 6' / Standard = 20'
    • Lamp Connection : Parallel
    • Allowed Wiring Config(Through) : Yes
    • Connector type : No connector
    • Wire Type : Solid
    • Color input terminals : No terminals
    • Allowed Wiring Config(Tandem) : Yes
    • Max Dist.Ball to Lamp(Through) : ES = 6' / Standard = 20'
    • Max Dist. Ball to Lamp(Tandem) : ES = 6' / Standard = 20'
    • Wire Striplength : 0.50/0.375 mm
    • Allowed Wiring Config(Remote) : Yes
    • Wire Gauge : 18AWG
    • Wire Length by Color : See data sheet
  • System Chars On Driver Level
    • Rated Lamp Watts : 32W
  • Temperature Characteristics
    • T-case maximum : 70 C
