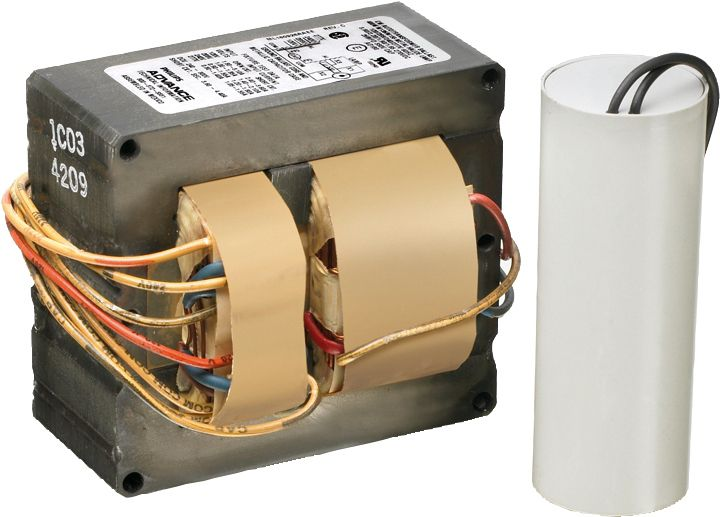

CORE & COIL HID 71A8071001D

BALLAST - 100W QUAD HPS

ADV71A8071001D 71A8071001D 781087807118
195.56 / EA
http://schema.org/OutOfStock
Mayer-DDS-CORE & COIL HID 71A8071001D-1
  • Frequency: 60 Hz
  • Input Voltage: 120/208/240/277 V
  • Lamp Type: HPS
  • Number of Lamps: 1
  • Wattage: 100 W
  • Weight: 3.207 kg
The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire. The core and coil also forms the nucleus of Philips Advance's five other ballast configurations.
QTY
  • Specifications
  • Product Data
    • Order product name : CORE & COIL HID 71A8071001D
    • EAN/UPC - Product : 781087807118
    • Order code : 913700556409
    • Numerator - Quantity Per Pack : 1
    • Numerator - Packs per outer box : 1
    • Material Nr. (12NC) : 913700556409
    • Net Weight (Piece) : 3.207 kg
  • Operating and Electrical
    • Input Voltage : 120/208/240/277 V
    • Input Frequency : 60 Hz
    • Input Current (Open Circuit) : 2.2/1.25/1.1/0.85 A
    • Input Current (Starting) : 0.75/0.45/0.37/0.3 A
    • Input Current (Short Circuit) : 0.6-0.9/0.35-0.55/0.3-0.45/0.29-0.43 A
    • Secondary Short Circuit Current : 2.6-3.3 A
    • Constant Wattage Deviation : Within Trapezoid
    • Ballast Factor (Nom) : 1
    • Power Factor (Nom) : 0.90
    • Open Circuit Voltage : 125 V
    • Input Current (Nom) : 1.15/0.67/0.58/0.5 A A
    • Input Power (Nom) : 135 W
    • Rated Lamp Power : 100 W
  • Wiring
    • Wire Striplength : 0.5 mm
    • Wire Length by Color : 12"
    • Wire Type : Stranded
    • Remote Wiring Configuration Allowed : Yes
    • Max Ballast-Lamp Distance Remote Wiring : 2'
    • Recommended Fuse Value : 7/5/3/3 A
  • Approval and Application
    • Open Circuit Voltage Test (Volts) : 110-130 V
    • Approval Marks : ULR
    • Temperature Marking : E/F/E/D
    • UL Recognized : Yes
    • Hipot Test (1 Minute) : 2000 V
    • Hipot Test (2 Seconds) : 2500 V
    • UL Insulation Class : H(180°C)
    • UL Temperature Code : 1029F
  • General Information
    • ANSI Code : S54
    • Lamp Type : 100W HPS
    • Number of Lamps : 1 piece/unit
    • Circuit Type : HX-HPF
    • Ballast Type : Magnetic HID
    • Base Model : 71A8071
    • Core Size : 3 X 4 (2 LW)
    • Suitable For Outdoor Use : Yes
    • Ignitor Catalog Number : LI551-H4
    • Ignitor Temperature Rating : 105°C
    • Capacitor Value : 10 MFD
    • Capacitor Catalog Number : 7C100M30RA
    • Capacitor Requirements : 280V
    • Capacitor Temperature Rating : 105°C
    • Capacitor Diameter/Oval Dimensions : 1.65 in
    • Capacitor Height : 2.75 in
    • Automatic Restart : No
