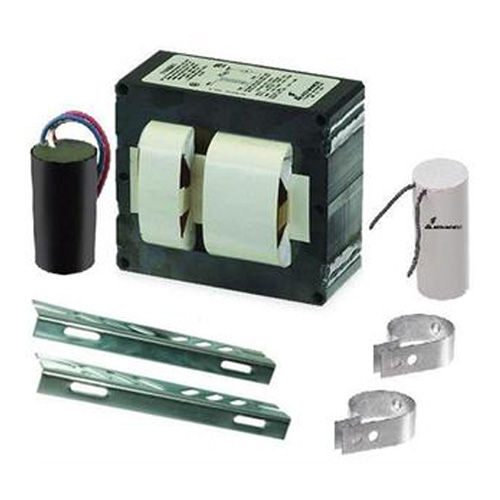

The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire. The core and coil also forms the nucleus of Philips Advance's five other ballast configurations.

• idw_core
• catalog : 71A5390001D
• idwItemCtrl : 781087017838
• upc : 781087017838
• gtin : 00781087017838
• brandLabel : PHILIPS ADVANCE
• unspsc : 39101902
• igcc : 3708
• idwIndex : 7575145
• sequenceId : 64
• Product Data
• Logistics code(s) : 913700533009
• Skus/Case : 1
• Short product name : MH BAL 100W 90/140 QUAD KIT
• eop_net_weight_pp : 2.541 kg
• Bar code on pack : 781087017838
• Product number : 71A5390001D
• Full product name : MH BAL 100W 90/140 QUAD KIT
• Bar code on case : 30781087017839
• Pieces per Sku : 1
• General Characteristics
• Capacitor Dia/Oval Dim : 1.65 in
• Input Current (Operating) : 1.15/0.66/0.58/0.5 A
• Core Size : 3 X 4 (2 LW)
• Ignitor Temp Rating : 105°C
• Capacitor value [μF] : 12 MFD
• Capacitor Catalog Number : 7C120M30RA
• Number of Lamps : 1 piece
• Line Voltage : 120/208/240/277 V
• Family Name : Core & Coil MH
• Ballast Type : Magnetic HID
• Line Frequency : 60 Hz
• Ignitor Catalog Number : LI533-H4
• Circuit Type : HX-HPF
• Capacitor Requirements : 280V
• Lamp Type : 100 MH
• Suitable for Outdoor use? : Yes
• Base Model : 71A5390
• Capacitor Height : 2.75 in
• Capacitor Temp Rating : 105°C
• Approval & Application Chars
• ANSI Code : M90/M140
• CE marking : No
• CCC certificate : No
• FIDE Certificate : No
• Temperature marking : B/B/A/A
• ETL Certificate : No
• HiPot Test (2 seconds) : 2500 V
• HiPot Test (1 minute) : 2000 V
• UL Temperature Code : 1029B
• UL Listed : No
• Approbation Marks : ULR, CSA, RoHS
• VDE certificate : No
• cUL certificate : No
• Open Circ Voltage Test (Volts) : 240-300 V
• UL Insulation Class : H(180°C)
• NOM certificate : No
• RoHS Compliant : Yes
• CSA certificate : Yes
• UL Recognized : Yes
• Chia Quality Certificate : No
• CEC Listing : No
• EISA : No
• SASO Certificate : No
• Operating Characteristics
• Nominal Open Circuit Voltage : 260 V
• Input Power Gear : 129 W
• Input Voltage at Lamp Dropout : 90/156/180/208 V
• Power Factor : 0.90
• Inp. Current (Open Circuit) : 2.5/1.5/1.3/1.12 A
• Ballast factor : 1 -
• Constant wattage deviation : 12%
• Secondary ShortCircuit Current : 1.35-1.7 A
• Automatic restart : No
• Input Current Short Circuit : 0.63-0.95/0.43-0.65/0.37-0.55/0.29-0.44 A
• Input Current (Starting) : 1.24/0.54/0.45/0.4 A
• Product Dimensions
• Length A1 : 3.9 in
• Width B2 : 2.4 in
• Length A2 : 3.5 in
• Width B1 : 2.8 in
• Coil Depth C1 : 3.07 in
• Stack Height C2 : 1.5 in
• Wiring Characteristics
• Recommended Fuse : 10/5/5/4 A
• Wire Striplength : 0.5 mm
• Max Dist. Ball to Lamp(Remote) : 20'
• Wire Type : Stranded
• Wire Length by Color : 12"
• Allowed Wiring Config(Remote) : Yes
• System Chars On Driver Level
• Rated Lamp Watts : 100W
