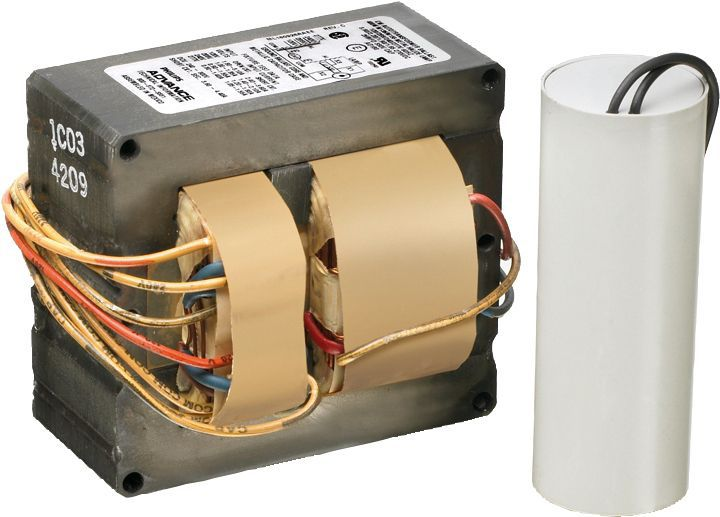

ADV 71A5292001D (ADVANCE) KIT MH/PSMH 70W CORE & COIL 120/208/240/277V WITH DRY FILM CAPACITOR, IGNITOR & MOUNTING (ANSI M98/M143)

ADV 71A5292001D (ADVANCE) KIT MH/PSMH 70W CORE & COIL 120/208/240/277V WITH DRY FILM CAPACITOR, IGNITOR & MOUNTING (ANSI M98/M143)

ADV71A5292001D 71A5292001D 781087050729
625.08 / EA
  • Ballast Type: Magnetic HID
  • Frequency: 60 Hz
  • Input Current: 0.37 A
  • Input Wattage: 92 W
  • Lamp Type: MH
  • Lamp Wattage: 70 W
  • Length: 3.5 in, 3.9 in
  • Power Factor: 0.90
  • Width: 2.4 in, 2.8 in
  • Wire Type: Stranded
The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire. The core and coil also forms the nucleus of Philips Advance's five other ballast configurations.
  • Product Description
  • Specifications
The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire. The core and coil also forms the nucleus of Philips Advance's five other ballast configurations.
  • Secondary ShortCircuit Current : 1.03-1.26 A
  • Ballast factor : 1 -
  • Power Factor : 0.90
  • Input Current Short Circuit : 0.65-0.98/0.4-0.6/0.32-0.49/0.29-0.44 A
  • Nominal Open Circuit Voltage : 255 V
  • Inp. Current (Open Circuit) : 1.66/0.97/0.83/0.73 A
  • Input Current (Starting) : 0.71/0.41/0.4/0.3 A
  • Constant wattage deviation : 7%
  • Input Voltage at Lamp Dropout : 90/156/180/208 V
  • Automatic restart : No
  • Input Power Gear : 92 W
  • Bar code on case : 30781087050720
  • eop_net_weight_pp : 2.486 kg
  • Pieces per Sku : 1
  • Full product name : MH BAL 70W M98/143 QUAD KIT
  • Bar code on pack : 781087050729
  • Skus/Case : 1
  • Logistics code(s) : 913700571809
  • Product number : 71A5292001D
  • Short product name : MH BAL 70W M98/143 QUAD KIT
  • Capacitor Height : 2.75 in
  • Line Voltage : 120/208/240/277 V
  • Line Frequency : 60 Hz
  • Base Model : 71A5292
  • Ignitor Catalog Number : LI533-H4
  • Ignitor Temp Rating : 105°C
  • Ballast Type : Magnetic HID
  • Family Name : Core & Coil MH
  • Capacitor Catalog Number : 7C080L30RA
  • Circuit Type : HX-HPF
  • Number of Lamps : 1 piece
  • Capacitor Requirements : 280V
  • Core Size : 3 X 4 (2 LW)
  • Input Current (Operating) : 0.85/0.49/0.42/0.37 A
  • Capacitor Dia/Oval Dim : 1.25 in
  • Lamp Type : 70W MH
  • Suitable for Outdoor use? : Yes
  • Capacitor Temp Rating : 105°C
  • Capacitor value [μF] : 8 MFD
  • Wire Striplength : 0.5 mm
  • Wire Type : Stranded
  • Allowed Wiring Config(Remote) : Yes
  • Recommended Fuse : 4/3/2/2 A
  • Max Dist. Ball to Lamp(Remote) : 15'
  • Wire Length by Color : 12"
  • Coil Depth C1 : 2.88 in
  • Stack Height C2 : 1.44 in
  • Width B2 : 2.4 in
  • Width B1 : 2.8 in
  • Length A1 : 3.9 in
  • Length A2 : 3.5 in
  • Rated Lamp Watts : 70W
  • FIDE Certificate : No
  • Open Circ Voltage Test (Volts) : 230-280 V
  • UL Temperature Code : 1029A
  • RoHS Compliant : Yes
  • UL Listed : No
  • CSA certificate : Yes
  • Temperature marking : A/A/A/A
  • cUL certificate : No
  • EISA : No
  • VDE certificate : No
  • Chia Quality Certificate : No
  • HiPot Test (2 seconds) : 2500 V
  • CEC Listing : No
  • CE marking : No
  • HiPot Test (1 minute) : 2000 V
  • Approbation Marks : ULR, CSA, RoHS
  • NOM certificate : No
  • SASO Certificate : No
  • ANSI Code : M98/M143
  • CCC certificate : No
  • UL Recognized : Yes
  • ETL Certificate : No
  • UL Insulation Class : H(180°C)
