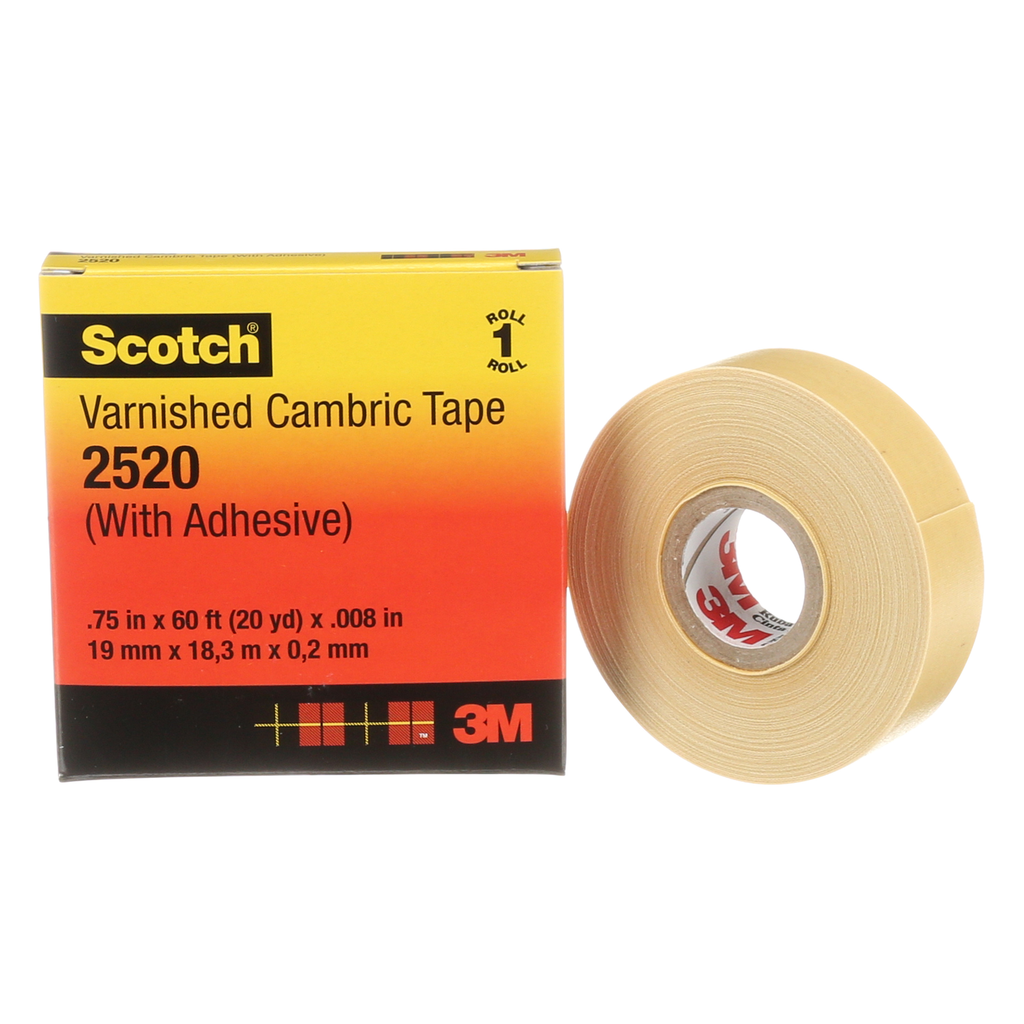

Scotch® Varnished Cambric Tape 2520, 3/4 in x 60 ft, Yellow, 1 roll/carton, 20 rolls/Case

Scotch® Varnished Cambric Tape 2520, 3/4 in x 60 ft, Yellow, 1 roll/carton, 20 rolls/Case

MMM252034X60 2520-3/4X60FT 54007048367
68.16 / Roll
http://schema.org/OutOfStock
Mayer-DDS-Scotch® Varnished Cambric Tape 2520, 3/4 in x 60 ft, Yellow, 1 roll/carton, 20 rolls/Case-1
  • Applications: Electrical Maintenance
  • Backing Material: Cotton Cloth
  • Country of Origin: USA
  • Max. Operating Temperature: 105.0 °C, 220.0 °F
  • Overall Length: 18.3 m, 60.0 ft
  • Shelf Life: 1825 yr
  • Tensile Strength: 100 mm, 876.0 N
  • Width: 0.75 in, 19.05 mm
Scotch Varnished Cambric Tape 2520 is an 8-mil thick conformable tape with a non-corrosive, pressure-sensitive adhesive that is suitable for bus bar, motor leads and service drop connections. Varnished Cambric tapes are flexible, electrically insulating and moisture resistant with a smooth finish. The tape is made from straight-cut woven cotton cambric fabric that is oil primed and coated with a high-grade yellow electrical insulating varnish.
QTY
  • Product Description
  • Features
  • Specifications
Scotch Varnished Cambric Tape 2520 is an 8-mil thick conformable tape with a non-corrosive, pressure-sensitive adhesive that is suitable for bus bar, motor leads and service drop connections. Varnished Cambric tapes are flexible, electrically insulating and moisture resistant with a smooth finish. The tape is made from straight-cut woven cotton cambric fabric that is oil primed and coated with a high-grade yellow electrical insulating varnish.
  • Features
    • Tape is made from oil primed and coated straight-cut woven cotton cambric fabric
    • Tape provides protective resistance to abrasion, puncture and cut-through
    • This varnished cambric tape is rated up to 221F (105C)
    • Non-corrosive pressure-sensitive adhesive holds tape in position until jacketing is applied
    • This tape should not be used as primary insulation for splicing and terminating PILC Cable
    • RoHS 2011/65/EU Compliant
  • Specifications
    • Country of Origin : United States
    • RDS URL (Regulatory Data Sheet) : https://cdmsweb.3m.com/ingredientcommunication/file/Media/6DimvGL515Y=
    • Adhesive Type : Rubber Resin
    • Overall Width (Imperial) : 0.75 in
    • AIS URL (Article Information Sheet) : https://https://cdmsweb.3m.com/ingredientcommunication/file/Media/3o//PCLagFU=
    • ETIM Class 8.0 : EC000128
    • Overall Width (Metric) : 19.05 mm
    • Total Tape Thickness without Liner (Imperial) : 8.0 mil
    • Total Tape Thickness without Liner (Metric) : 0.203 mm
    • Application : Electrical Maintenance
    • Application/Industry : Appliance and Fixture
    • Backing (Carrier) Material : Cotton Cloth
    • Dielectric Strength : 800.0 V/mil
    • Maximum Operating Temperature (Celsius) : 105.0 Degree
    • Maximum Operating Temperature (Fahrenheit) : 220.0 Degree
    • Overall Length (Imperial) : 60.0 ft
    • Overall Length (Metric) : 18.3 m
    • Product Color : Yellow
    • Product Markets : Electrical Construction
    • Rolls per Carton : 1.0
    • Rolls per Case : 20.0
    • Shelf Life : 1825 Year
    • Specifications Met : ASTM Approved, ASTM D-1000, ASTM D-295, ASTM D-374, RoHS 2011/65/EU, UL 94 V-2
    • Tape Grade : Professional
    • Tensile Strength (Metric) : 876.0 N/100mm
    • Units per Case : 1000.0
