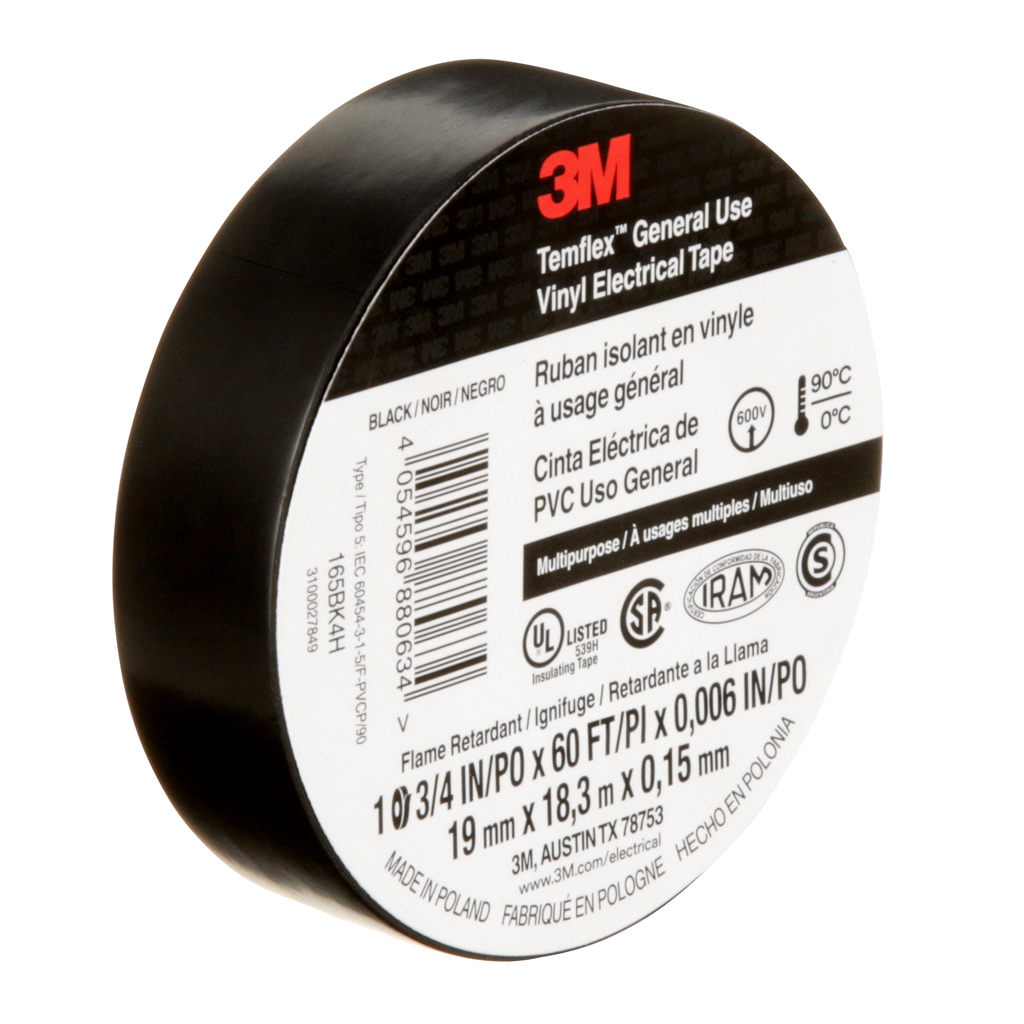

3M™ Temflex™ Vinyl Electrical Tape 175, Black, 3/4 in x 60 ft (19 mm x 18 m), 7 mil, 100 Rolls/Case

TAPE - VINYL BLACK 3/4 X 60

MMM165BK4A 076308925680
0.00 / EA
  • Adhesive Type: Rubber
  • Applications: Insulation
  • Overall Length: 18.3 m, 60 ft
  • Width: 0.75 in, 19 mm
3M™ Temflex™ Vinyl Electrical Tape 175 is a 7-mil thick, high-performance general-purpose vinyl insulating tape. It is designed to perform in ambient temperatures up to 194°F (90°C). The tape is conformable for cold weather application down to 19°F (-7°C). It has excellent resistance to abrasion, moisture, alkalies, acid, copper corrosion and varying weather conditions. The combination of an elastic PVC backing and pressure-sensitive rubber-based adhesive provides electrical and mechanical protection with minimum bulk.
  • Product Description
  • Features
  • Specifications
3M™ Temflex™ Vinyl Electrical Tape 175 is a 7-mil thick, high-performance general-purpose vinyl insulating tape. It is designed to perform in ambient temperatures up to 194°F (90°C). The tape is conformable for cold weather application down to 19°F (-7°C). It has excellent resistance to abrasion, moisture, alkalies, acid, copper corrosion and varying weather conditions. The combination of an elastic PVC backing and pressure-sensitive rubber-based adhesive provides electrical and mechanical protection with minimum bulk.
  • Flame-retardant and inhibits the corrosion of electrical conductors
  • Withstands a temperature range of 19 to 194°F (-7 to 90 °C)
  • Compatible with rubber and synthetic splicing compounds
  • Resists abrasion, moisture, alkalis, solvents and acids
  • Made of durable PVC
  • UL Listed and CSA Certified
  • Elongation at Break : 200
  • Suitable for High Voltage : No
  • Tape Color : Black
  • Adhesion to Steel : en-CA: 18 oz/in - en-US: 18 oz/in - fr-CA: 18 oz/in
  • Total Tape Thickness without Liner (Metric) : 0.177 mm
  • Voltage Rating : 600 V
  • Tape Width (Metric) : 19 mm
  • Maximum Operating Temperature (Celsius) : 90 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit) : 194 Degree Fahrenheit
  • Color Family : Black
  • Tape Length (Metric) : 18.3 m
  • Total Tape Thickness without Liner (Imperial) : 0.007 in
  • Overall Length (Metric) : 18.3 m
  • Minimum Operating Temperature (Fahrenheit) : 19 Degree Fahrenheit
  • Product Type : Vinyl Electrical Tapes
  • Overall Width (Metric) : 19 mm
  • Adhesive Type : Rubber
  • Tape Grade : General Use
  • Minimum Operating Temperature (Celsius) : -7 Degree Celsius
  • Product Color : Black
  • Tape Total Thickness (Metric) : 0.177 mm
  • Backing Material : Polyvinyl Chloride
  • Application : Insulation
  • Flame Retardant : Yes
  • Overall Width (Imperial) : 0.75 in
  • Dielectric Strength (V/mil) : 1000
  • Chemical Resistant : Yes
  • Overall Length (Imperial) : 60 ft
