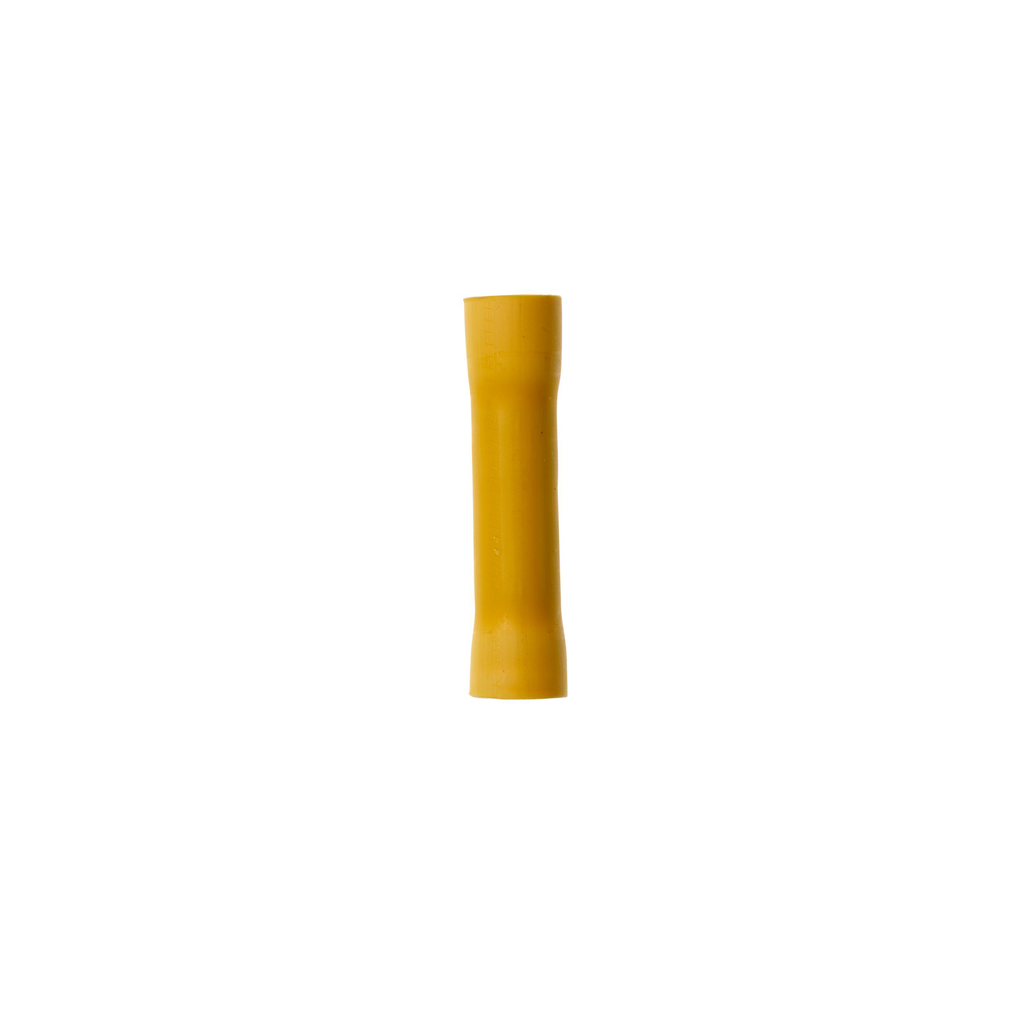

Trust in secure terminal connections when you use 3M Scotchlok Color-Coded Butt Connectors. These snug-fitting connectors are made of highly conductive electrolytic copper with a tin-plated finish that's non-corrosive. They feature a vinyl-insulated, seamless barrel and withstand temperatures of -40 to 221 degrees F (-40 to 105 degrees C). 3M Butt Connectors are all-around great performers.

• Features
• Vinyl-insulated, seamless barrel ensures a secure fit and offers reliable performance
• Offers electrical connection to a pre-stripped end of a stranded wire
• Built-in wire stop for correct positioning
• Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
• Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
• UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

• Specifications
• Country of Origin : United States
• ETIM Class 7.0 : EC001059
• ETIM Class 8.0 : EC001059
• Maximum Conductor Size (Imperial) : 10 AWG
• Maximum Conductor Size (Metric) : 6 mm²
• Minimum Conductor Size (Imperial) : 12 AWG
• Minimum Conductor Size (Metric) : 4 mm²
• Body Material : Copper Alloy
• Connector Type : Butt
• Insulation Material : Vinyl
• Maximum Operating Temperature (Celsius) : 105.0 Degree
• Overall Length (Imperial) : 1.2 in
• Product Color : Yellow
