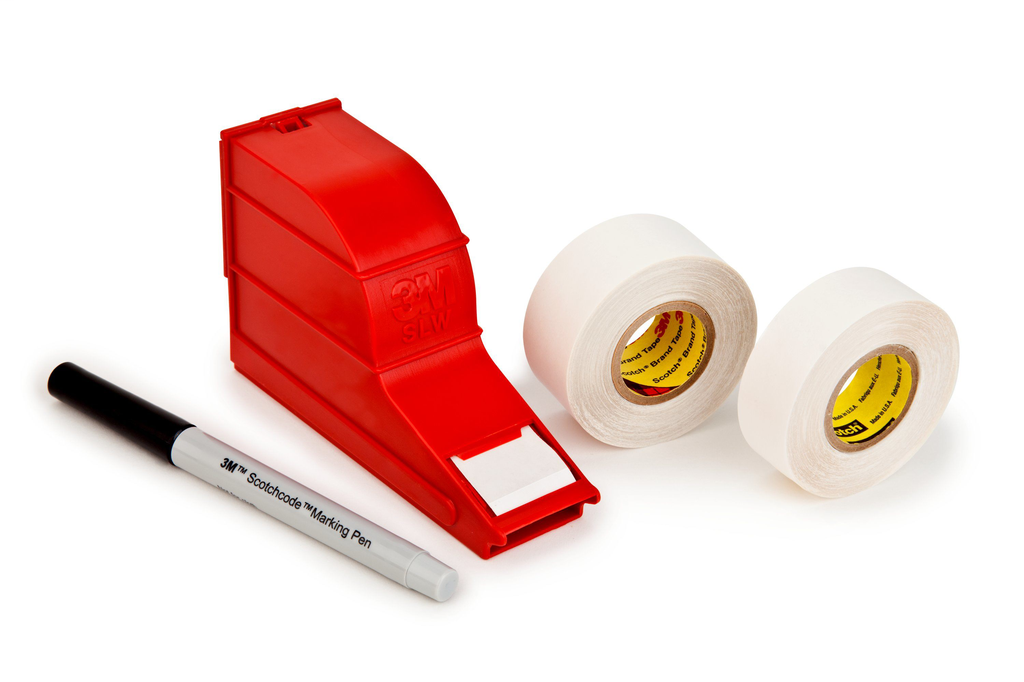

3M™ ScotchCode™ Write-On Dispensers are self-laminating and handy for identifying wire and cable as well as household, automotive, plumbing and sporting equipment.

• Features
• PROTECTIVE WRAP: Features a write-on area with a transparent self-laminating protective shield to wrap around the written label
• PERMANENT PEN INCLUDED: Write-on dispenser includes permanent marking pen
• REFILLABLE: Refill rolls available (indicated by -R)

• Specifications
• Country of Origin : United States
• ETIM Class 7.0 : EC001530
• ETIM Class 8.0 : EC001530
• Legend Color : White
• Product Type : Write-on Dispenser
• Adhesive Material : Acrylic
• Application : Marking Wire and Cable
• Cable Diameter Range : 2,3 - 7,8 mm
• Dispenser Type : Dispenser with Tape
• Dispenser/Marker Type : Write-On Dispenser with Tape & Pen
• Kit Includes : Dispenser filled with SWD Tape and 1 SMP pen
• Labels Per Roll : 50
• Manufacturing Origin : USA
• Marker ID Style : Write-on
• Marker Size : 0.75 inch x 1.375 inch
• Marker Type : Dispenser
• Material : Plastic
• Maximum Insulation Outer Diameter (Metric) : 3.7 mm
• Maximum Insulation Outside Diameter : 0.145 in
• Maximum Operating Temperature (Celsius) : 49.0 Degree
• Maximum Operating Temperature (Fahrenheit) : 120.0 Degree
• Maximum Outside Diameter : 7.9 mm
• Maximum Recommended Voltage Rating : 600.0 V
• Minimum Outside Diameter : 0.09 Inch
• Overall Width (Metric) : 19.0 mm
• Printed Text Type : Write-on
• Product Color : White
• Refillable : Yes
• RoHS EU Comments : RoHS 2011/65/EU compliant without exemption
• Solution for : Access Network: FTTH/FTTB/CATV
• Units per Case : 10.0
• Wire Marker Products : Write-On Dispenser and Refill Rolls
• With Label Space : Yes
• Write-on Area Size (Imperial) : 0.75 inch x 0.312 inch
• Write-on Area Size (Metric) : 19.1 x 7.9 mm
