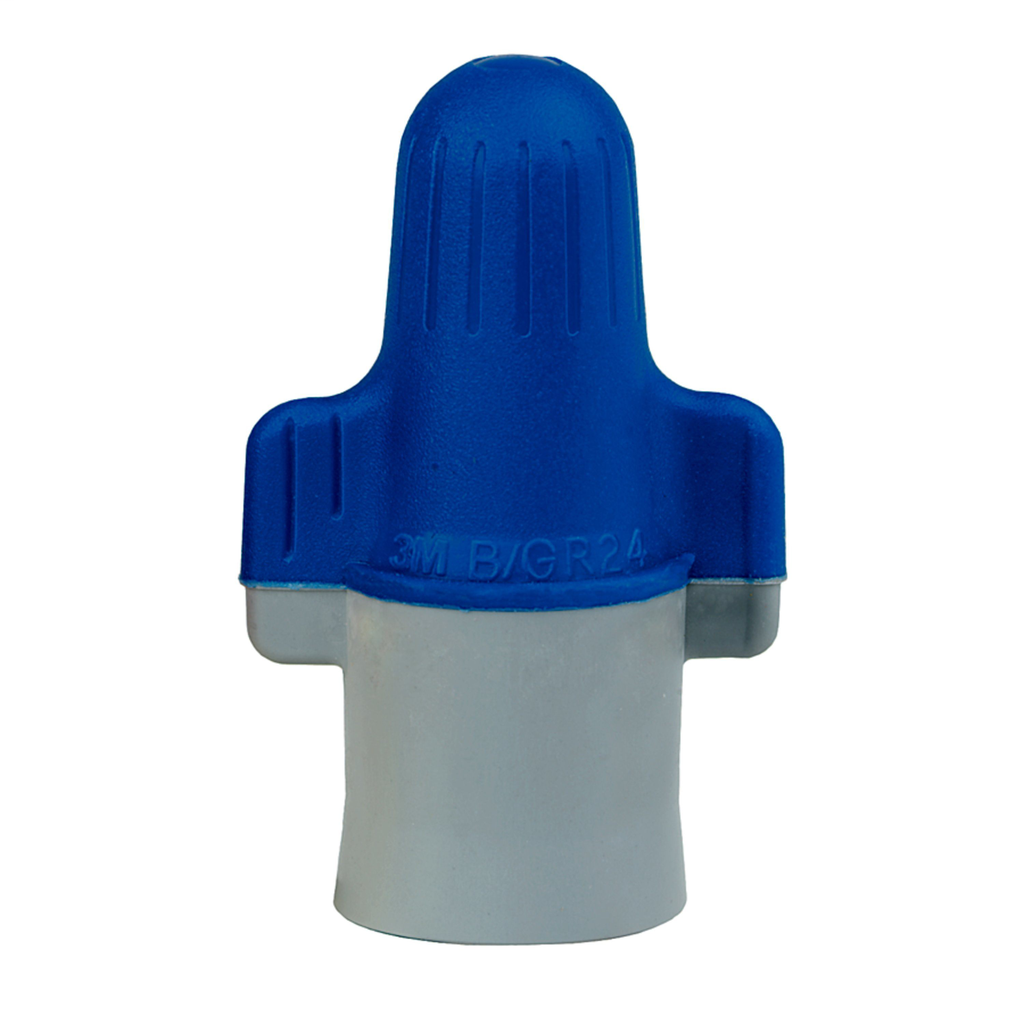

3M™ Performance Plus™ Wire Connector B/G+JUG, 250 per Jug, 2000/Case

3M™ Performance Plus™ Wire Connector B/G+JUG, 250 per Jug, 2000/Case

MMMBG+JUG B/G+JUG 054007431510
0.35 / Connector
  • Material: Plastic
3M™ Performance Plus™ Wire Connectors are designed with a uniquely flexible spring that has generous room for expansion and a strong bite for a secure connection. Because of their increased wire range, just three Performance Plus wire connectors handle the work of eight standard connectors. And the flexible skirt helps prevent copper exposure for enhanced safety.
  • Features
  • Product Description
  • Specifications
  • Strong bite for a secure, reliable connection
  • Dual color coded: one connector does the job of two traditional connectors in the majority of applications
  • Flexible spring expands for greater wire range and reuse
  • UL Listed
  • UL Listed and CSA Certified
3M™ Performance Plus™ Wire Connectors are designed with a uniquely flexible spring that has generous room for expansion and a strong bite for a secure connection. Because of their increased wire range, just three Performance Plus wire connectors handle the work of eight standard connectors. And the flexible skirt helps prevent copper exposure for enhanced safety.
  • Minimum Wire Gauge : 14 AWG
  • Family : 3M™ Performance Plus Wire Connector
  • Connector Style : Twist On
  • RoHS EU Comments : RoHS 2011/65/EU compliant without exemption
  • Material : Plastic
  • Color Family : Multi-Color
  • Minimum Operating Temperature (Fahrenheit) : 0 NP
  • Flame Retardant : Yes
  • Minimum Operating Temperature (Celsius) : 0 NP
  • Product Color : Blue - Gray
  • Minimum Conductor Size : 14 AWG
  • Maximum Operating Temperature (Fahrenheit) : 221 Degree Fahrenheit
  • Maximum Voltage Rating : 600 V (1000 V in signs, lighting fixtures and luminaries)
  • Maximum Insulation Outer Diameter (Metric) : 3.7 mm
  • Voltage Rating : 600 Volt
  • Wire Connector Type : Twist-on Wire Connectors
  • Conductor Sizes : 14 - 6 AWG
  • Maximum Recommended Voltage Rating : 600 V
  • Connection Type : Wire
  • Maximum Conductor Size : 6 AWG
  • Maximum Operating Temperature (Celsius) : 105 Degree Celsius
  • Product Type : Connector
  • Maximum Insulation Outside Diameter : 0.145 in
  • Maximum Wire Gauge : 6 AWG
  • Conductor Size Unit : AWG
