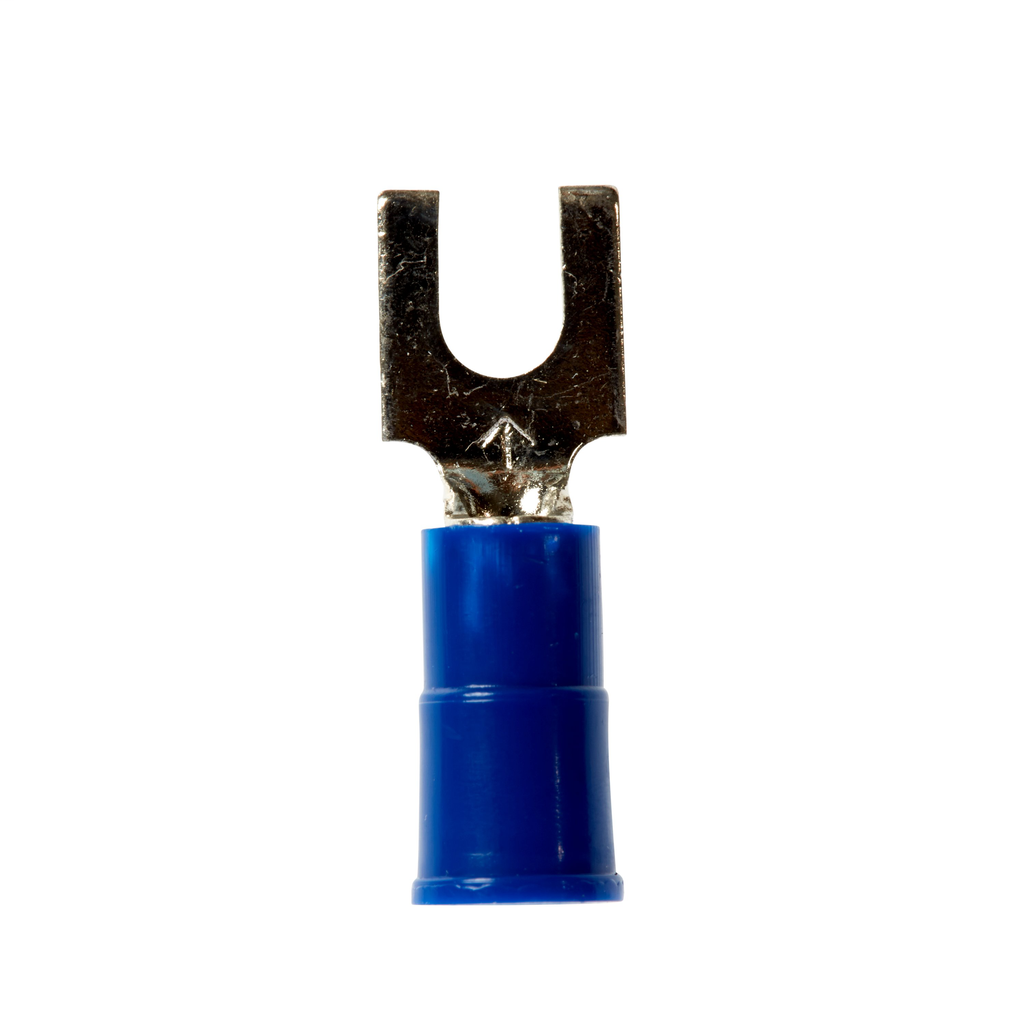

3M™ Highland™ Vinyl Insulated Block Fork Terminal BFV14-8Q, AWG 16-14,25/bag, suitable for use in a terminal block

VINYL BLOCK FORK HIGHLAND BAG

MMMBFV148Q BFV14-8Q 051128599921
11.49 / Bag
http://schema.org/OutOfStock
Mayer-DDS-3M™ Highland™ Vinyl Insulated Block Fork Terminal BFV14-8Q, AWG 16-14,25/bag, suitable for use in a terminal block-1
  • Max. Operating Temperature: 105 °C
  • Overall Length: 0.85 in, 21.59 mm
  • Package Height: 5.500 in
  • Package Length: 0.500 in
  • Package Weight: 0.056 lb
  • Terminal Type: Fork
3M™ Highland™ Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
QTY
  • Product Description
  • Features
  • Specifications
3M™ Highland™ Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • Features
    • Blue vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
    • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
    • Suitable for use in a terminal block
    • Stud size #8
    • Accommodates wire sizes 16 to 14 AWG
  • Specifications
    • Manufacturer Catalog Number : 7000133650
    • Connection Width (Imperial) : 0.164 in
    • Connection Width (Metric) : 4.166 mm
    • Maximum Conductor Size : 14 AWG
    • Maximum Operating Temperature (Celsius) : 105 Degree Celsius
    • Minimum Conductor Size : 16 AWG
    • Overall Length (Imperial) : 0.85 in
    • Overall Length (Metric) : 21.59 mm
    • Overall Width (Imperial) : 0.3 in
    • Overall Width (Metric) : 7.62 mm
    • Terminal Type : Fork
  • Packaging
    • Package Length : 0.50000 in
    • Package Height : 5.50000 in
    • Package Weight : 0.0565 LBS
