3M™ Cold Shrink Quick Insulator QI 10/37-270, 10/case

3M™ Cold Shrink Quick Insulator QI 10/37-270, 10/case

MMMQI1037270 QI-10/37-270 051128576984
39.16 / Each
  • Applications: Cable Connection

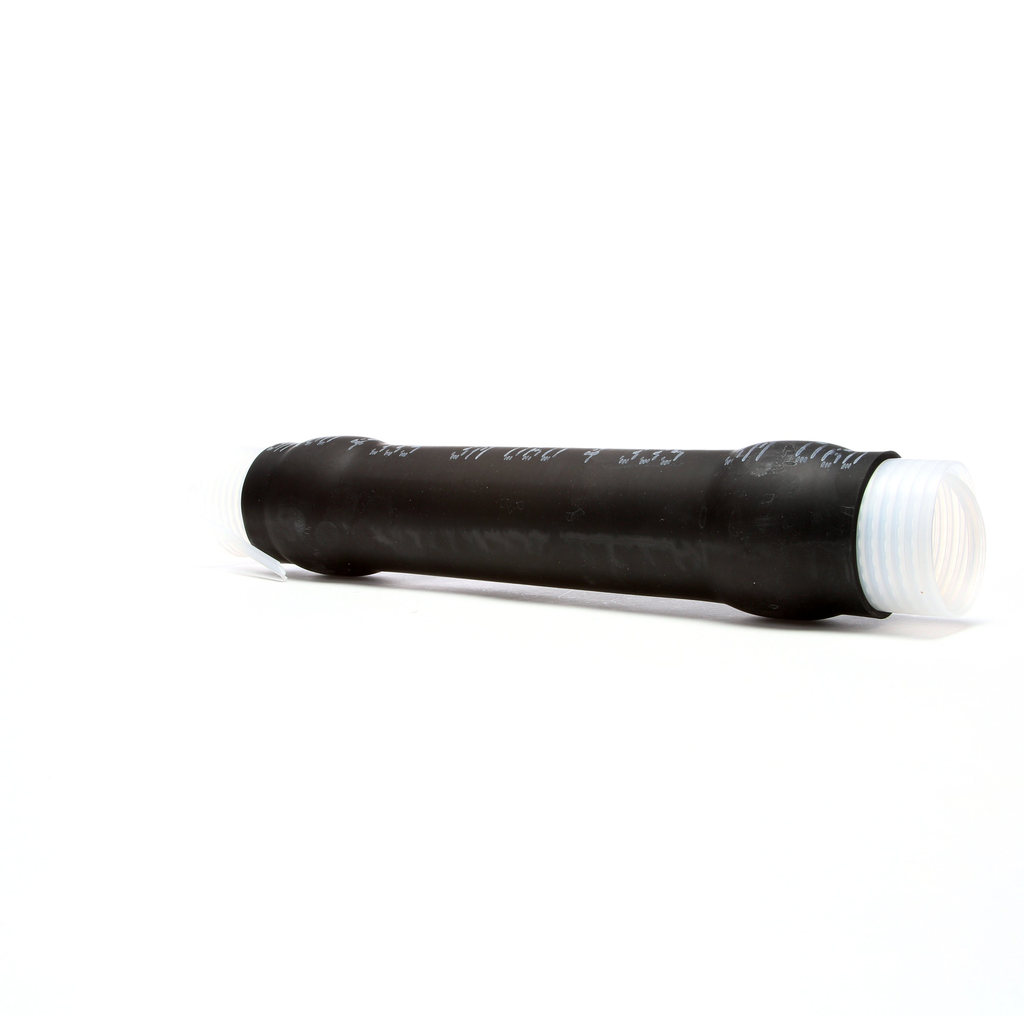

3M™ Cold Shrink Quick Insulator QI Series are open-ended tubular rubber sleeves with sealing mastic on each end that are factory expanded and assembled onto a removable core. The core is removed by pulling from one end after the QI insulator has been positioned over an inline connector, allowing the ends of the tube to shrink and form a water-resistant seal. Sizing of the core and tube, along with the sealing mastic on each end, provides a broader application range without degrading the seal and insulating characteristics of the EPDM rubber tube. Five diameter sizes will cover a range of 1 kV or less cable from 8 AWG–3000 kcmil, copper and aluminum conductors with crimped connectors.
  • Features
  • Product Description
  • Specifications
  • Made of EPDM rubber which contains no chlorides or sulfur
  • Simple installation which requires no tools
  • Specially designed for primary insulation of solid dielectric insulated wires and cable splicing rated to 1000 volts
  • Environmental sealing for communication and other non-electrical applications
  • Offers excellent wet electrical properties and resists water, acids and alkalis
  • Withstands temperatures of -40 to 194 degrees F (-40 to 90 degrees C)
3M™ Cold Shrink Quick Insulator QI Series are open-ended tubular rubber sleeves with sealing mastic on each end that are factory expanded and assembled onto a removable core. The core is removed by pulling from one end after the QI insulator has been positioned over an inline connector, allowing the ends of the tube to shrink and form a water-resistant seal. Sizing of the core and tube, along with the sealing mastic on each end, provides a broader application range without degrading the seal and insulating characteristics of the EPDM rubber tube. Five diameter sizes will cover a range of 1 kV or less cable from 8 AWG–3000 kcmil, copper and aluminum conductors with crimped connectors.
  • Cable Shielding : Non-shielded
  • Number of Conductors : 1
  • Cable Type : Power Cable
  • Maximum Connector Length : 4.50 in
  • Maximum Operating Temperature (Fahrenheit) : 194 Degree Fahrenheit
  • Indoor/Outdoor : Both
  • Minimum Operating Temperature (Fahrenheit) : -40 Degree Fahrenheit
  • RoHS EU Comments : RoHS 2011/65/EU compliant without exemption
  • Conductor Size Range : 2 AWG–750 kcmil (Cu), 2 AWG–500 kcmil (Al)
  • Inner Diameter After Shrink (Metric) : 10.2 mm
  • Maximum Operating Temperature (Celsius) : 90 Degree Celsius
  • Application : Cable Connection
  • Inner Diameter Before Shrink (Imperial) : 1.45 in
  • Inner Diameter Before Shrink (Metric) : 36.8 mm
  • Voltage Application : Medium Voltage
  • Product Color : Black
  • Material : EPDM Rubber
  • Minimum Operating Temperature (Celsius) : -40 Degree Celsius
  • Color Family : Black
  • Conductor Material : Aluminum - Copper
  • Dielectric Strength (V/mil) : 365 V/mil
  • Model : Cold-shrink
  • Conductor Sizes : 700 kcmil - 2 AWG - 250 kcmil - 4/0 AWG - 350 kcmil - 400 kcmil - 1 AWG - 300 kcmil - 2/0 AWG - 3/0 AWG - 500 kcmil - 650 kcmil - 750 kcmil - 600 kcmil - 1/0 AWG
  • Minimum Wire Gauge : 95mm²
  • Typical Splice Length (Metric) : 736 mm
  • Maximum Connector Length (Metric) : 114.3 mm
  • Maximum Wire Gauge : 240mm²
  • Connector Included : No - None
  • Typical Splice Length : 29 in
  • Elongation : 750 %
  • Inner Diameter After Shrink (Imperial) : 0.4 in
  • Product Type : Splice
  • Voltage : 1 kV
