3M™ Cold Shrink QT-III Termination Kit 7622-S-2, Tape, Wire, UniShield®, 5-15 kV, Insulation OD 0.64-1.08 in, 2 Skirt, 3/kit

3M™ Cold Shrink QT-III Termination Kit 7622-S-2, Tape, Wire, UniShield®, 5-15 kV, Insulation OD 0.64-1.08 in, 2 Skirt, 3/kit

MMM7622S2 7622-S-2 054007421702
622.60 / Kit

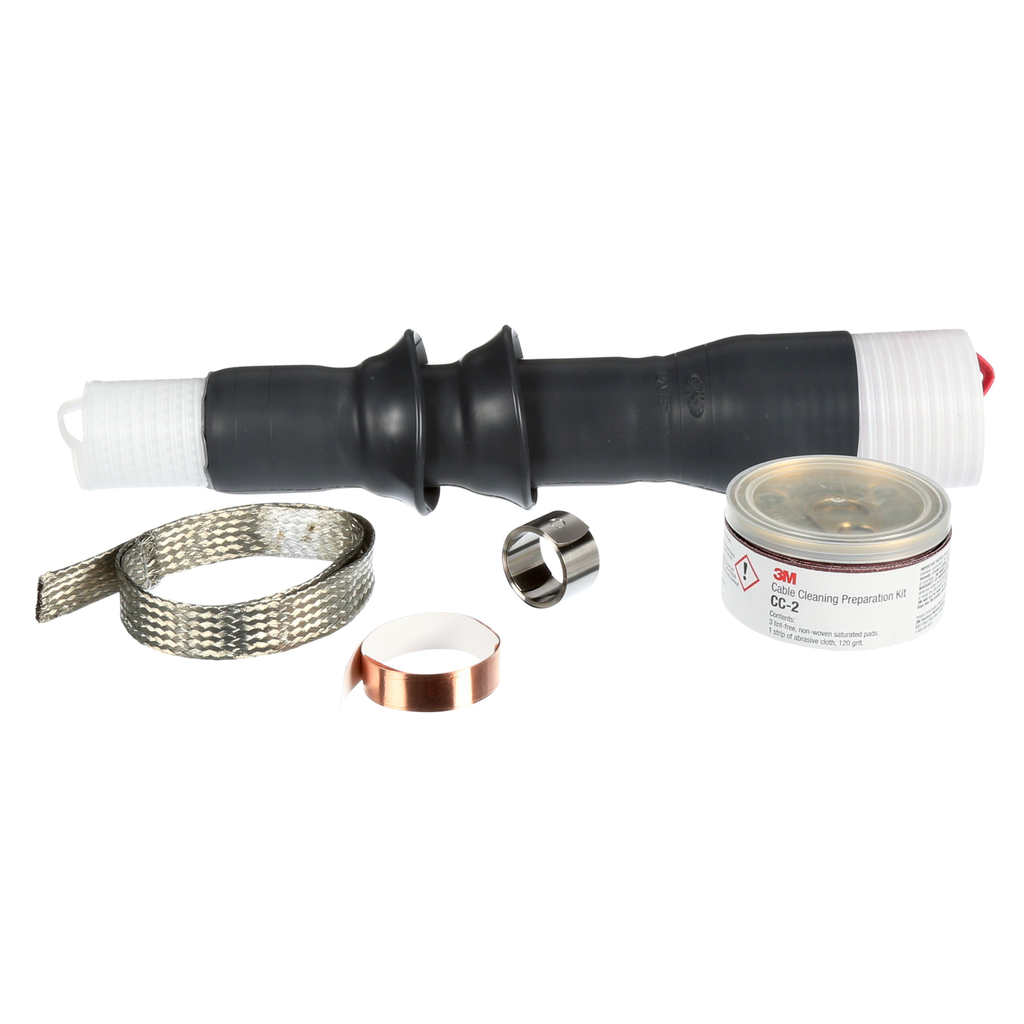

3M™ Cold Shrink QT III 7620 S, 7680 S & 7690 S Series Termination Kit includes three 1 piece, 3 phase, skirted terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 5 to 35kV.
  • Features
  • Product Description
  • Specifications
  • Provides a void-free seal to tape shield, wire shield and UniShield® power cables
  • Silicone rubber insulation offers durability and reduces leakage currents in damp conditions
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for outdoor applications
3M™ Cold Shrink QT III 7620 S, 7680 S & 7690 S Series Termination Kit includes three 1 piece, 3 phase, skirted terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 5 to 35kV.
  • Indoor/Outdoor : Outdoor Skirted
  • Maximum Installed Length : 9.80 in
  • Insulation Outer Diameter (Metric) : 21.844 mm - 24.384 mm - 19.812 mm - 25.146 mm - 16.256 mm - 18.542 mm - 24.13 mm - 23.622 mm - 27.178 mm - 22.606 mm - 24.638 mm - 16.51 mm - 17.272 mm - 21.082 mm - 24.892 mm - 18.796 mm - 23.114 mm - 21.336 mm - 19.05 mm - 26.416 mm - 20.32 mm - 16.764 mm - 17.018 mm - 26.924 mm - 25.4 mm - 26.162 mm - 20.066 mm - 25.908 mm - 26.67 mm - 20.828 mm - 17.78 mm - 17.526 mm - 25.654 mm - 18.288 mm - 18.034 mm - 23.368 mm - 27.432 mm - 20.574 mm - 22.352 mm - 19.304 mm - 21.59 mm - 22.098 mm - 22.86 mm - 23.876 mm - 19.558 mm
  • Voltage : 8 kV - 5 kV - 15 kV
  • Cable Insulation Outside Diameter Range (Metric) : 16.3-27.4 mm
  • Cable Shielding : UniShield® - Wire Shield - Tape Shield
  • Number of Skirts : 2
  • Family : QT-III
  • Product Technology : Cold Shrink
  • Insulation Level : 133% - 100%
  • Number of Conductors : 1
  • Voltage Application : Medium Voltage
  • BIL : 110 kV
  • Insulation Rejacketing : No
  • Lug/Stem Connector Included in Kit : No
  • Breakout Boot : No
  • RoHS EU Comments : Contact 3M for information
  • Cable Insulation Outside Diameter Range : 0.64-1.08 in
  • Conductor Size by Voltage : (5 kV) 4/0 AWG-400 kcmil, (8 kV) 3/0 AWG-300 kcmil, (15 kV) 2-4/0 AWG
  • Conductor Sizes : 2/0 AWG - 400 kcmil - 1/0 AWG - 1 AWG - 300 kcmil - 3/0 AWG - 2 AWG - 4/0 AWG - 350 kcmil - 250 kcmil
