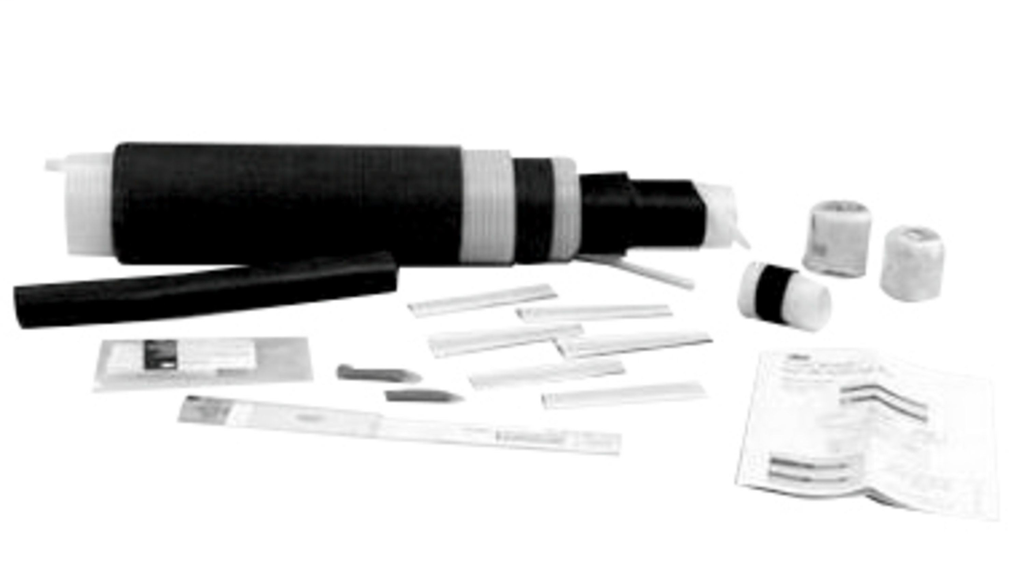

3M™ Cold Shrink QS-III Splice Kit 5515A, Longitudinally Corrugated Shield, 15 kV, Standard, 1/case

350 TO 750 SPLICE

MMM5515A 5515A 54007421344
1177.42 / Kit
http://schema.org/OutOfStock
Mayer-DDS-3M™ Cold Shrink QS-III Splice Kit 5515A, Longitudinally Corrugated Shield, 15 kV, Standard, 1/case-1
  • Country of Origin: USA
  • Product Series: 5515A
  • Splice Type: Cold Shrink
  • Voltage: 15 kV
The 3M™ Cold Shrink QS-III Shielded Cable Splices 5513A, 5514A, 5515A and 5516A Series are 15 kV class inline splices for joining tape shield, wire shield, UniShield® or longitudinally corrugated (LC) shielded power cables. It is a cold shrink design sized to fit Type MV-90 or Type MV-105 cables with copper, or aluminum conductor sizes ranging from 2 AWG-1000 kcmil (35-500 mm²).
QTY
  • Product Description
  • Features
  • Specifications
The 3M™ Cold Shrink QS-III Shielded Cable Splices 5513A, 5514A, 5515A and 5516A Series are 15 kV class inline splices for joining tape shield, wire shield, UniShield® or longitudinally corrugated (LC) shielded power cables. It is a cold shrink design sized to fit Type MV-90 or Type MV-105 cables with copper, or aluminum conductor sizes ranging from 2 AWG-1000 kcmil (35-500 mm²).
  • Features
    • Inline splice for joining tape shield, wire shield, UniShield® or longitudinally corrugated shielded power cables
    • Special electrode design of the kit reduces the electrical stress at a critical cable/splice interface
    • Designed for feeder and distribution circuits, it transitions from shielded to neutral power cables and fits type MV-90 cables
    • Silicon rubber-splice body provides good high and low temperature performance, and the EPDM rubber jacket offers physical protection
    • Rated for 15 kV class cables
    • Factory-tested partial discharge and AC ensure reliability
  • Specifications
    • Country of Origin : United States
    • ETIM Class 8.0 : EC003520
    • Cable Shielding : Longitudinally Corrugated (LC)
    • Splice Type : Cold Shrink
    • Voltage : 15 kV
    • Insulation Outside Diameter Range : 1.04 - 1.70 Inch
    • Insulation Outside Diameter Range (Metric) : 26.4 - 43.2 mm
    • Product Series : 5515A
    • Shelf Life : 1080
