3M

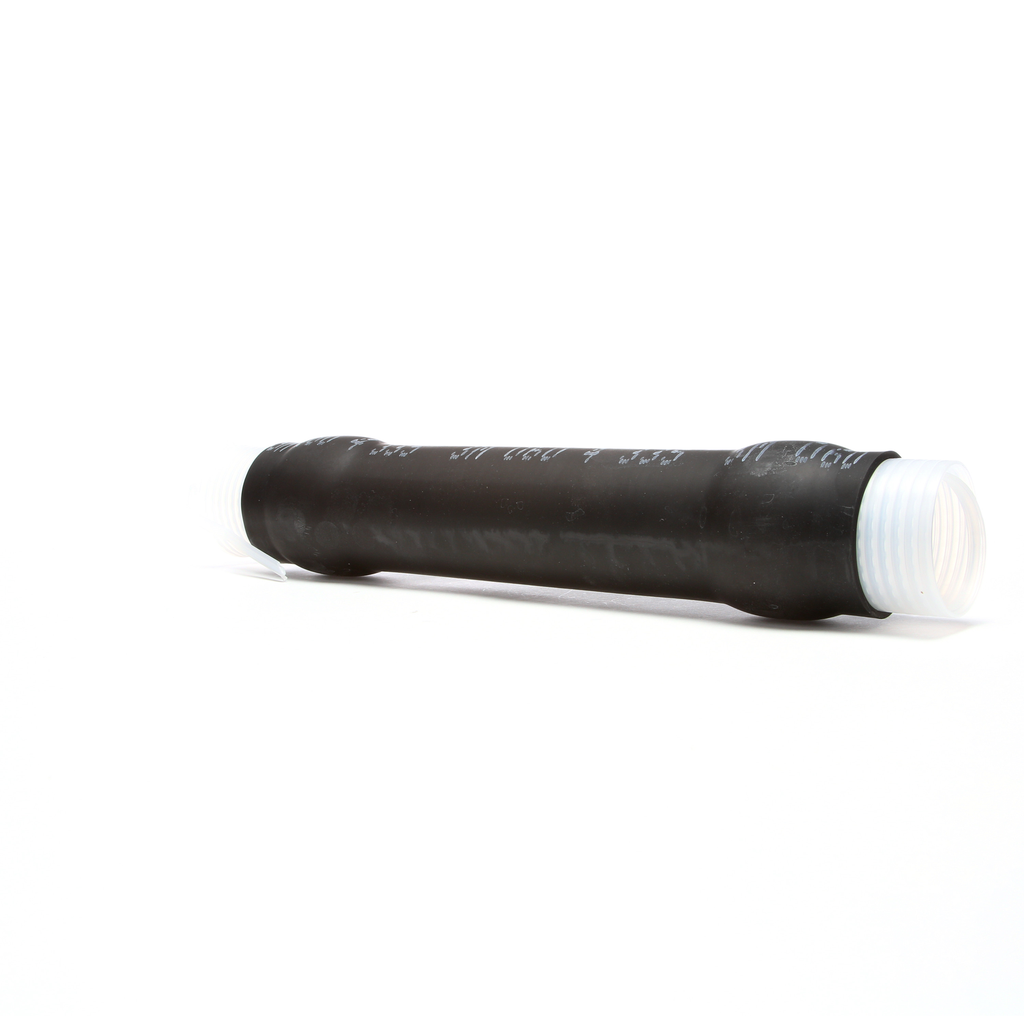

3M™ Cold Shrink Quick Insulator QI 10/37-270, 10/case

QUICK INSUL 2-500AL / 2-750CU

MMMQI1037270 QI-10/37-270 51128576984
67.47 / Each
http://schema.org/OutOfStock
Mayer-DDS-3M™ Cold Shrink Quick Insulator QI 10/37-270, 10/case-2
  • Applications: Cable Connection
  • Country of Origin: USA
  • Indoor/Outdoor: Indoor, Outdoor
  • Material: EPDM Rubber
  • Max. Operating Temperature: 194.0 °F, 90.0 °C
  • Min. Operating Temperature: -40.0 °C, -40.0 °F
  • Product Type: Splice
  • Splice Type: Cold Shrink
  • Voltage: 1 kV
Efficiently insulate your low-voltage splices with the 3M QI Cold Shrink Quick Insulator. This insulator is great for secondary splices, copper or aluminum conductors, dig-in repairs and sheath repairs in direct bury, secondary and low-voltage jobs. The tube-shaped rubber sleeves on the insulator have open ends with sealing mastic on each end.
QTY
  • Product Description
  • Features
  • Specifications
Efficiently insulate your low-voltage splices with the 3M QI Cold Shrink Quick Insulator. This insulator is great for secondary splices, copper or aluminum conductors, dig-in repairs and sheath repairs in direct bury, secondary and low-voltage jobs. The tube-shaped rubber sleeves on the insulator have open ends with sealing mastic on each end.
  • Features
    • Specially designed for primary insulation of solid dielectric insulated wires and cable splicing rated to 1000 volts
    • Simple installation which requires no tools
    • Offers excellent wet electrical properties and resists water, acids and alkalis
    • Made of EPDM rubber which contains no chlorides or sulfur
    • Withstands temperatures of -40 to 90 degC (-40 to 194 degF)
    • Environmental sealing for communication and other non-electrical applications
  • Specifications
    • Country of Origin : United States
    • ETIM Class 7.0 : EC000217
    • Inner Diameter After Shrink (Imperial) : 0.4 in
    • ETIM Class 8.0 : EC000217
    • Inner Diameter After Shrink (Metric) : 10.2 mm
    • Inner Diameter Before Shrink (Imperial) : 1.45 in
    • Inner Diameter Before Shrink (Metric) : 36.8 mm
    • Material : EPDM Rubber
    • Maximum Operating Temperature (Celsius) : 90.0 Degree
    • Maximum Operating Temperature (Fahrenheit) : 194.0 Degree
    • Minimum Operating Temperature (Celsius) : -40.0 Degree
    • Minimum Operating Temperature (Fahrenheit) : -40.0 Degree
    • Application : Cable Connection
    • Cable Shielding : Non-shielded
    • Cable Type : Power Cable
    • Conductor Material : Aluminum
    • Connector Included : No
    • Dielectric Strength (V/mil) : 365 V/mil
    • Elongation UOM : %
    • Halogen Free : No
    • Indoor/Outdoor : Both
    • Insulation O.D. Range : 0.40-1.45 in
    • Insulation O.D. Range (Metric) : 10.2-36.8 mm
    • Insulation Outside Diameter Range : 0.84 - 1.38 Inch
    • Insulation Outside Diameter Range (Metric) : 21.3 - 35.1 mm
    • Manufacturing Origin : USA
    • Maximum Conductor Size (Metric) : 95 mm²
    • Maximum Connector Length : 4.50 in
    • Maximum Connector Length (Metric) : 114.3 mm
    • Minimum Conductor Size (Metric) : 35 mm² (Aluminum)
    • Model : Cold-shrink
    • Number of Conductors : 1.0
    • Product Color : Black
    • Product Type : Splice
    • RoHS EU Comments : RoHS 2011/65/EU compliant without exemption
    • Shelf Life : 1800
    • Splice Type : Cold Shrink
    • Typical Splice Length : 29 in
    • Typical Splice Length (Metric) : 736 mm
    • Units per Case : 1.0
    • Voltage : 1 kV
    • Voltage Application : Medium Voltage
    • With Inner Glue : No
