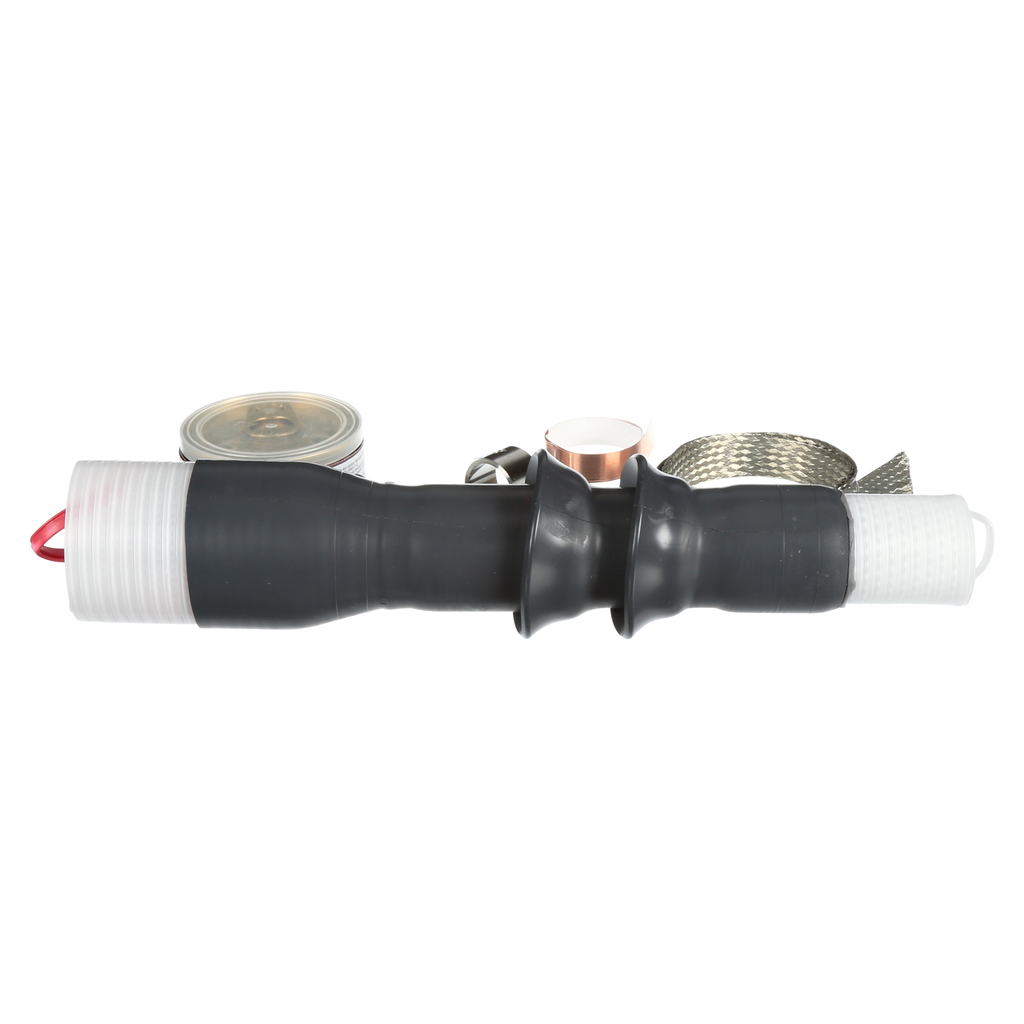

3M™ Cold Shrink QT III 7620 S, 7680 S & 7690 S Series Termination Kit includes three 1 piece, 3 phase, skirted terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 5 to 35kV.

• Features
• Provides a void-free seal to tape shield, wire shield and UniShield® power cables
• High dielectric-constant material regulates the distribution of electric field stress
• Suitable for outdoor applications
• Silicone rubber insulation offers durability and reduces leakage currents in damp conditions

• Specifications
• Country of Origin : United States
• RDS URL (Regulatory Data Sheet) : https://cdmsweb.3m.com/ingredientcommunication/file/Media/2JV4FKQfGMs=
• ETIM Class 8.0 : EC003520
• Breakout Boot : No
• Cable Shielding : Tape Shield
• Conductor Sizes (Imperial) : 1 AWG
• Insulation Outer Diameter (Imperial) : 0.64 in
• Insulation Outer Diameter (Metric) : 16.256 mm
• Insulation Rejacketing : No
• Number of Conductors : 1.0
• Voltage : 15 kV
• BIL : 110 kV
• Indoor/Outdoor : Outdoor Skirted
• Insulation Level : 100%
• Lug/Stem Connector Included in Kit : No
• Manufacturing Origin : USA
• Maximum Installed Length : 9.80 in
• Product Series : 7620-S
• Product Technology : Cold Shrink
• Product Type : Termination Kit
• RoHS EU Comments : Contact 3M for information
• Splice Type : Cold Shrink
• Type : Cold Shrink QT-III
• Units per Case : 3.0
• Voltage Application : Medium Voltage
