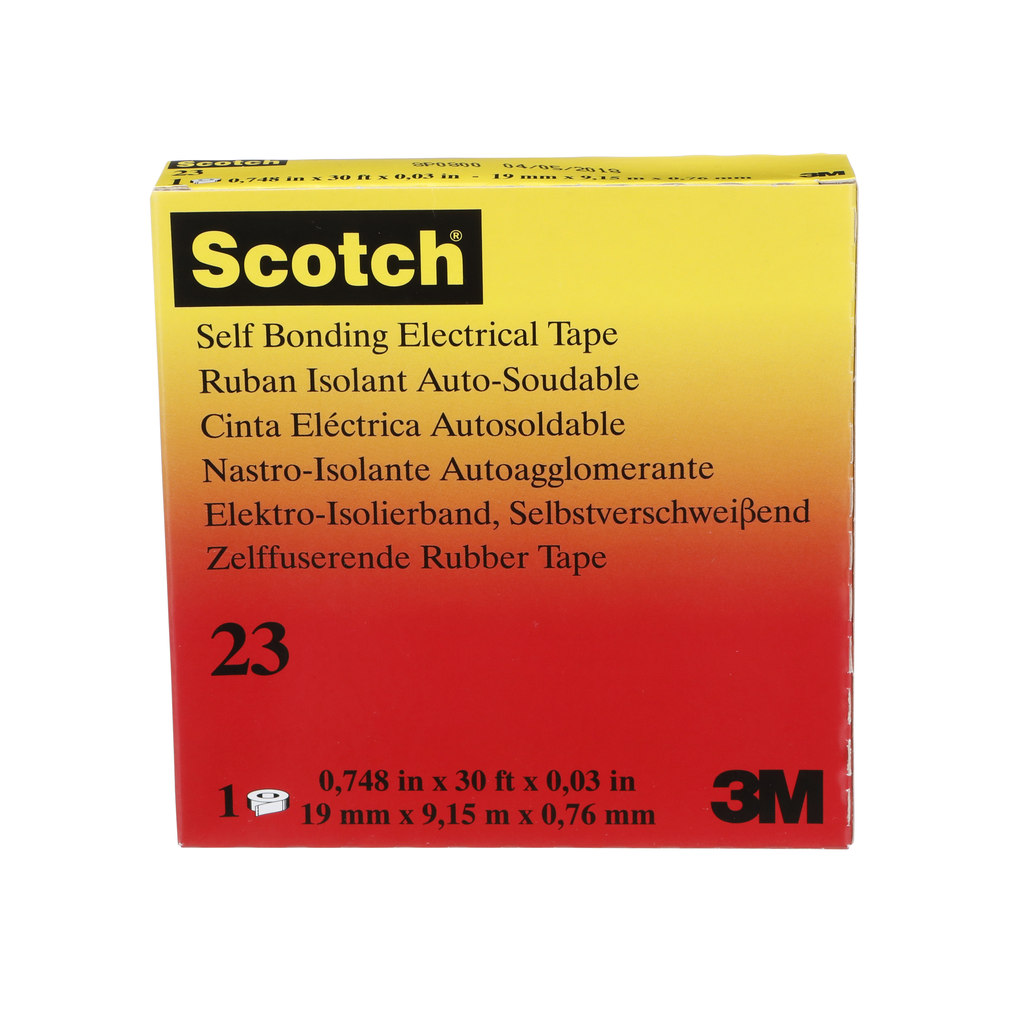

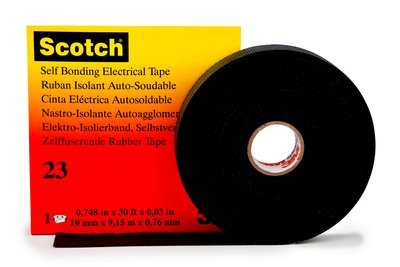

Scotch® Rubber Splicing Tape 23, 3/4 in x 30 ft, Black, 1 roll/carton, 20 rolls/case

TAPE - SELF FUSING 3/4X30

MMM2334X30 23-3/4X30FT 054007150251
39.47 / EA
http://schema.org/OutOfStock
Mayer-DDS-Scotch® Rubber Splicing Tape 23, 3/4 in x 30 ft, Black, 1 roll/carton, 20 rolls/case-2
  • Adhesive Type: Non-Adhesive
  • Applications: Electrical Maintenance, Insulation
  • Backing Material: Ethylene Propylene Rubber
  • Country of Origin: Brazil
  • Max. Operating Temperature: 194.0 °F, 90.0 °C
  • Min. Operating Temperature: 0.0 °C
  • Overall Length: 30.0 ft, 9.1 m
  • Tensile Strength: 8.0 lb/in
  • Width: 0.75 in, 19.0 mm
Scotch® Tape 23 is a 30 mil, premium grade, highly conformable, rubber splicing tape. The self fusing tape has a special polyester liner, which will not stick to the tape upon unwind. It withstands temperatures up to 194 °F (90 °C).
QTY
  • Product Description
  • Features
  • Specifications
Scotch® Tape 23 is a 30 mil, premium grade, highly conformable, rubber splicing tape. The self fusing tape has a special polyester liner, which will not stick to the tape upon unwind. It withstands temperatures up to 194 °F (90 °C).
  • Features
    • Self-fusing, ethylene propylene rubber backing and highly conformable, rubber-resin adhesive
    • Temperature rated for continuous adhesion to 194°F (90°C)
    • Special polyester liner keeps tape protected and clean during application
    • ASTM Approved & RoHS 2002/65/EC Compliant
  • Specifications
    • Country of Origin : Brazil
    • ETIM Class 7.0 : EC000128
    • Adhesive Type : Non-adhesive
    • ETIM Class 8.0 : EC000128
    • Overall Width (Imperial) : 0.75 in
    • Overall Width (Metric) : 19.0 mm
    • Total Tape Thickness without Liner (Imperial) : 30.0 mil
    • Total Tape Thickness without Liner (Metric) : 0.76 mm
    • Application : Electrical Maintenance, Insulation
    • Backing (Carrier) Material : Ethylene Propylene Rubber
    • Backing (Carrier) Thickness (Metric) : 0.76 mm
    • Dielectric Strength : 800.0 V/mil
    • Elongation at Break : 1000.0 %
    • Features : Self-sticking; Vulcanizing
    • Insulation Resistance : > 10^6 megohms
    • Maximum Operating Temperature (Celsius) : 90.0 Degree
    • Maximum Operating Temperature (Fahrenheit) : 194.0 Degree
    • Minimum Operating Temperature (Celsius) : 0.0 Degree
    • Overall Length (Imperial) : 30.0 ft
    • Overall Length (Metric) : 9.1 m
    • Product Color : Black
    • Product Markets : Electrical Construction
    • Shelf Life UOM : Year
    • Specifications Met : ASTM D-4388 Type 1, 2 & 3, RoHS 2011/65/EU
    • Tape Grade : Professional
    • Tensile Strength (Imperial) : 8.0 lb/in
    • Tensile Strength (Metric) : 55.0 kPa
    • Voltage Rating : 69 kV
