3M

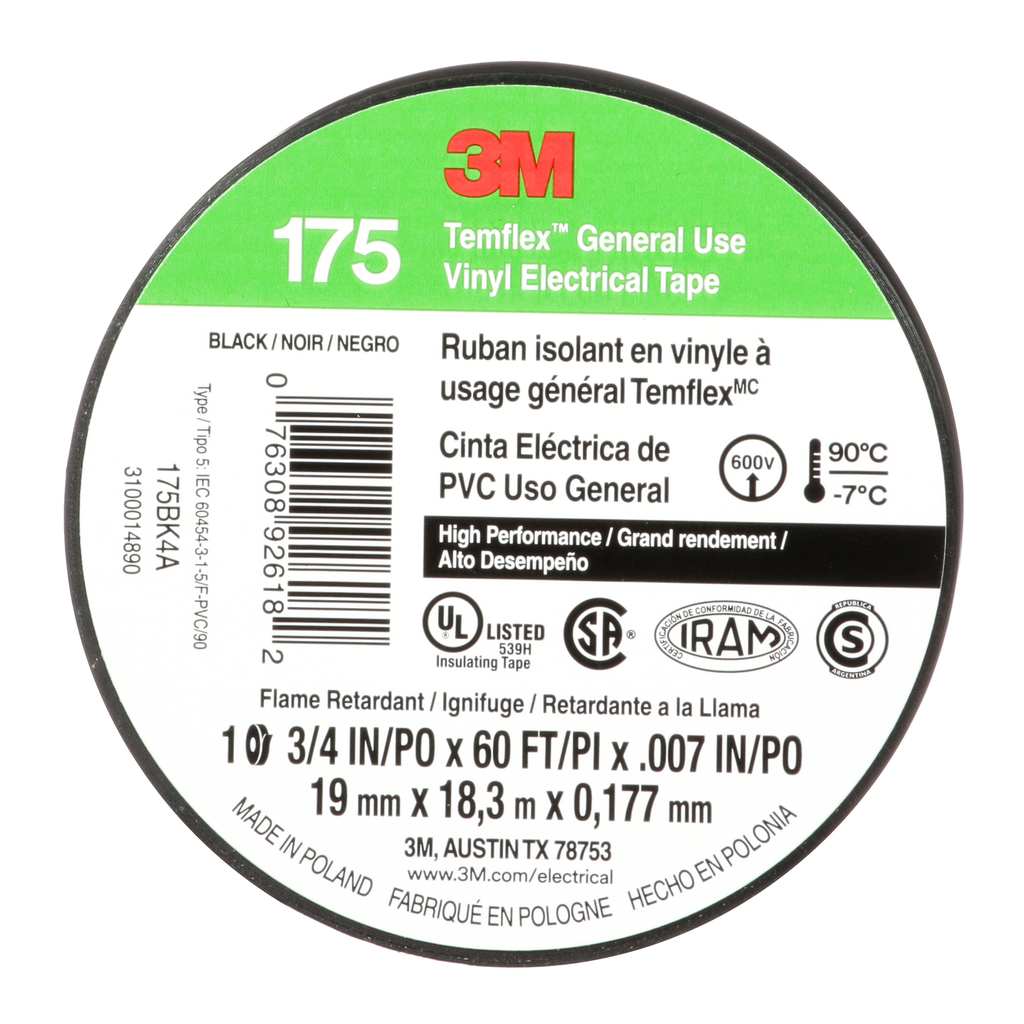

3M™ Temflex™ Vinyl Electrical Tape 175, Black, 3/4 in x 60 ft (19 mm x 18 m), 7 mil, 100 Rolls/Case

TAPE - VINYL BLACK 3/4 X 60

MMM165BK4A 165BK4A 76308925680
0.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-3M™ Temflex™ Vinyl Electrical Tape 175, Black, 3/4 in x 60 ft (19 mm x 18 m), 7 mil, 100 Rolls/Case-2
  • Adhesive Type: Rubber
  • Applications: Insulation
  • Backing Material: PVC
  • Max. Operating Temperature: 194.0 °F, 90.0 °C
  • Min. Operating Temperature: 19.0 °F, -7.0 °C
  • Overall Length: 18.0 m, 60.0 ft
  • Shelf Life: 1600 yr
  • Width: 0.75 in, 19.0 mm
3M Temflex Vinyl Electrical Tape 175 is a 7-mil thick, high-performance general-purpose vinyl insulating tape. It is flame-retardant and designed to perform in ambient temperatures up to 194F (90C). The tape is conformable for cold weather application down to 19F (-7C). It has excellent resistance to abrasion, moisture, alkalies, acid, copper corrosion and varying weather conditions. The combination of an elastic PVC backing and pressure-sensitive rubber-based adhesive provides electrical and mechanical protection with minimum bulk. This versatile electric tape is compatible with rubber and synthetic splicing compounds, and is UL Listed and CSA Certified.
QTY
  • Product Description
  • Features
  • Specifications
3M Temflex Vinyl Electrical Tape 175 is a 7-mil thick, high-performance general-purpose vinyl insulating tape. It is flame-retardant and designed to perform in ambient temperatures up to 194F (90C). The tape is conformable for cold weather application down to 19F (-7C). It has excellent resistance to abrasion, moisture, alkalies, acid, copper corrosion and varying weather conditions. The combination of an elastic PVC backing and pressure-sensitive rubber-based adhesive provides electrical and mechanical protection with minimum bulk. This versatile electric tape is compatible with rubber and synthetic splicing compounds, and is UL Listed and CSA Certified.
  • Features
    • Resists abrasion, moisture, alkalis, solvents, acids and varying weather conditions
    • Flame-retardant and inhibits the corrosion of electrical conductors
    • Made of durable elastic PVC and a pressure-sensitive rubber-based adhesive
    • General-purpose vinyl insulating tape, compatible with rubber and synthetic splicing compounds
    • Withstands a temperature range of 19 to 194F (-7 to 90C)
    • UL Listed and CSA Certified
  • Specifications
    • Country of Origin : Poland
    • Overall Width (Imperial) : 0.75 in
    • ETIM Class 7.0 : EC000128
    • ETIM Class 8.0 : EC000128
    • Overall Width (Metric) : 19.0 mm
    • Product Color : Black
    • Tape Grade : General Use
    • Total Tape Thickness without Liner (Imperial) : 0.007 in
    • Total Tape Thickness without Liner (Metric) : 0.177 mm
    • Adhesive Type : Rubber
    • Application : Insulation
    • Backing (Carrier) Material : PVC
    • Elongation at Break : 200.0 %
    • Maximum Operating Temperature (Celsius) : 90.0 Degree
    • Maximum Operating Temperature (Fahrenheit) : 194.0 Degree
    • Minimum Operating Temperature (Celsius) : -7.0 Degree
    • Minimum Operating Temperature (Fahrenheit) : 19.0 Degree
    • Overall Length (Imperial) : 60.0 ft
    • Overall Length (Metric) : 18.0 m
    • Shelf Life : 1600 Year
