Commercial Specification Grade Switch, White

SWITCH 1P/20A 120/277V WHITE

PSSCS20AC1W CS20AC1-W 785007126471
3.96 / EACH
http://schema.org/OutOfStock

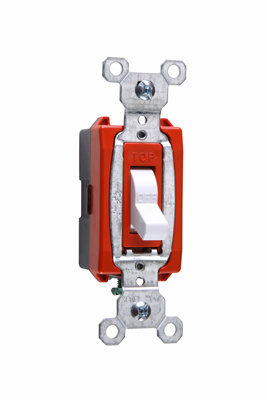

Mayer-DDS-Commercial Specification Grade Switch, White-1
  • Country of Origin: Mexico
Commercial 1-Pole Switch, Side-Wire, 20A 120/277V.
QTY
  • Product Description
  • Features
  • Specifications
Commercial 1-Pole Switch, Side-Wire, 20A 120/277V.
  • Certifications
    • cULus Listed
    • Federal Spec Listed
  • Features
    • One-piece brass alloy contact arm for reliable electrical performance.
    • One-piece steel strap with integral ground is plated for corrosion resistance.
    • High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse.
    • Heavy-duty toggle bumpers for smooth and quiet operation.
    • Back body made of glass-reinforced nylon. Locking support provides resistance to face and back body separation.
    • Available with side wire or external screw-pressure-plate back and side wire models capable of accepting #14 - #10 AWG copper or copper-clad wire.
    • Cam designed for fast make with positive break action to minimize arcing and prolong switch life.
    • Oversized silver alloy contacts for longer dependable switch life.
    • Tri-drive terminal and mounting screws.
    • For covering patents, see www.legrand.us/patents.
    • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Specifications
    • Country of Origin : Mexico
    • Color : White
    • Product Line : Pass & Seymour
