Double Pole, Single Phase AC Manual Controller

SWITCH 1PH 2P 30A 600V

PSS7802MD 7802-MD 785007267655
63.41 / EA
http://schema.org/OutOfStock

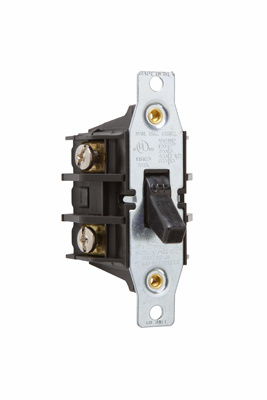

Mayer-DDS-Double Pole, Single Phase AC Manual Controller-1
  • Amperage: 30 A
  • Applications: Commercial, Industrial
  • Country of Origin: Mexico
  • Depth: 1.753 in
  • Finish: Matte
  • Height: 3.67 in
  • Indoor/Outdoor: Indoor
  • Load Type: CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
  • Material: Thermoplastic
  • Mounting Type: Wall Box
  • Number of Gangs: 1
  • Number of Poles: 2
  • Number of Switches: 1
  • Operating Cycles: 50000
  • Switch Type: Toggle
  • Type: Manual Controller, Tamper-Resistant
  • Voltage: 600.0 V
  • Warranty Length: 1 yr
  • Width: 1.825 in
Double pole, Single Phase AC Manual Motor Controller 30 amp, 600 volts (max), Suitable as Motor Disconnect
QTY
  • Product Description
  • Features
  • Specifications
Double pole, Single Phase AC Manual Motor Controller 30 amp, 600 volts (max), Suitable as Motor Disconnect
  • Features
    • High Horsepower rating of 20HP
    • Gull-wing shaped brass terminal pressure clamps
    • Constructed of glass-reinforced thermoplastic
    • UL508 and cULus Listing of individual device and assembled device within enclosure
    • Heavy-duty zinc-plated steel strap, two brass rivets secure strap to housing
    • External screw-pressure-plate back and side wire terminal screws unstaked for use with ring terminals
    • For covering patents, see www.legrand.us/patents.
    • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Certifications
    • cULus Listed
  • Specifications
    • Depth : 1.753 in
    • Color : Black
    • Height : 3.67 in
    • Width : 1.825 in
    • Finish : Matte
    • Material : Thermoplastic
    • Country of Origin : Mexico
    • Product Line : Pass & Seymour
    • Load Type : CFL
    • Load Type : LED
    • Amperage : 30.0 A
    • Load Type : Xenon
    • Voltage : 600.0 V
    • Load Type : Halogen
    • Number of Gangs : 1
    • Standard : UL Listed
    • Switch Type : Toggle
    • Load Type : Universal
    • Standard : CSA Listed
    • Supply Voltage : 120.0
    • Indoor/Outdoor : Indoor
    • Load Type : Fluorescent
    • Type : Tamper-Resistant
    • Load Type : Incandescent
    • Mounting Type : Wall Box
    • Number of Switches : 1.0
    • Type : Manual Controller
    • Wall Plate Included : No
    • Throw Type : Double Throw
    • Operating Cycles : 50000.0
    • Requires Neutral Wire : Yes
    • Load Rating : 30 A @ 600 VAC
    • Number of Poles : Double Pole
    • Application Sector : Commercial
    • Application Sector : Industrial
    • Environmental Conditions : UL94 V2
    • Connection Location : Back and Side
    • Horsepower Rating : 20 HP @ 600 VAC
    • Wire Connection Type : Screw Terminals
    • Warranty Type : 1-Year Limited Warranty
    • Terminal Accommodation : #14 AWG - #10 AWG
    • Features : Heavy Duty Zinc Plated Steel Strap
    • Special Features : Double pole, Single Phase AC Manual Motor Controller, suitable as Motor Disconnect
