PASS & SEYMOUR

Hospital Grade Single Receptacles Tamper Resistant, Back and Side Wire, 20A, 125V, Red

Hospital Grade Single Receptacles Tamper Resistant, Back and Side Wire, 20A, 125V, Red

PSSTR8301RED TR8301RED 785007030877
46.58 / EACH
http://schema.org/OutOfStock

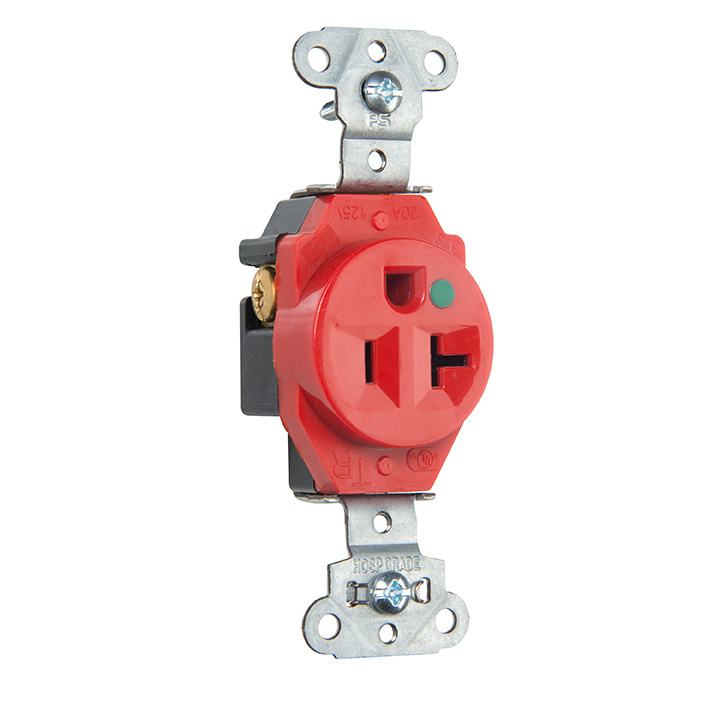

Mayer-DDS-Hospital Grade Single Receptacles Tamper Resistant, Back and Side Wire, 20A, 125V, Red-1
  • Color: Red
  • Country of Origin: Mexico
  • Depth: 1.093 in
  • Height: 1.68 in
  • Width: 1.32 in
Hospital Grade Single Receptacles Tamper-Resistant, Back and Side-Wire, 20A, 125A
QTY
  • Product Description
  • Features
  • Specifications
Hospital Grade Single Receptacles Tamper-Resistant, Back and Side-Wire, 20A, 125A
  • Features
    • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
    • Tri-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for more wiring flexibility.
    • Dual mechanical shutter system to help prevent insertion of foreign objects.
    • Heavy-duty, zinc-plated steel strap for added strength.
    • Strap tabs wrap around face to prevent strap from separating from face and back body.
    • Two drive screws anchor strap to back body and face where abrupt removal torque is strongest.
    • Auto-ground eliminates the necessity to terminate grounding conductor to device
    • For covering patents, see www.legrand.us/patents.
    • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Certifications
    • Federal Spec Listed
    • cULus Listed
  • Specifications
    • Depth : 1.093 in
    • Height : 1.68 in
    • Color : Red
    • Width : 1.32 in
    • Product Line : Pass & Seymour
    • Country of Origin : Mexico
