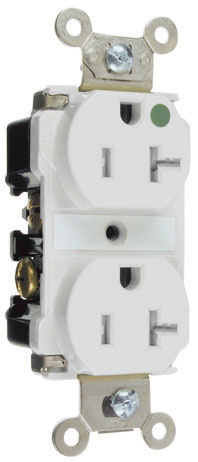

20A 125V Hospital-Grade Tamper-Resistant Duplex Receptacle, Back and Side Wire, White

TAMPR RESIST HOSP RECP 20A 125

PSSTR63HW TR63-HW 785007145182
34.28 / EACH
http://schema.org/OutOfStock
Mayer-DDS-20A 125V Hospital-Grade Tamper-Resistant Duplex Receptacle, Back and Side Wire, White-1
  • Country of Origin: Mexico
  • Finish: Matte
Tamper-Resistant Hospital Grade Receptacles, Back and Side Wire, 20A, 125V
QTY
  • Product Description
  • Features
  • Specifications
Tamper-Resistant Hospital Grade Receptacles, Back and Side Wire, 20A, 125V
  • Features
    • Thermoplastic dual mechanism shutter system to help prevent insertion of foreign objects.
    • AC receptacles available in 15 and 20 Amp, 125V
    • Extra heavy-duty brass, one-piece mounting strap with integral ground.
    • One-piece, nickel-plated: brass, triple-wipe power contacts for lasting retention.
    • Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.
    • Impact-resistant nylon face and back body.
    • Two drive screws anchor strap to back body and face.
    • Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
    • External screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection.
    • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • Certifications
    • cULus Listed
    • Federal Spec Listed
  • Specifications
    • Country of Origin : Mexico
    • Color : White
    • Finish : Matte
    • Product Line : Pass & Seymour
