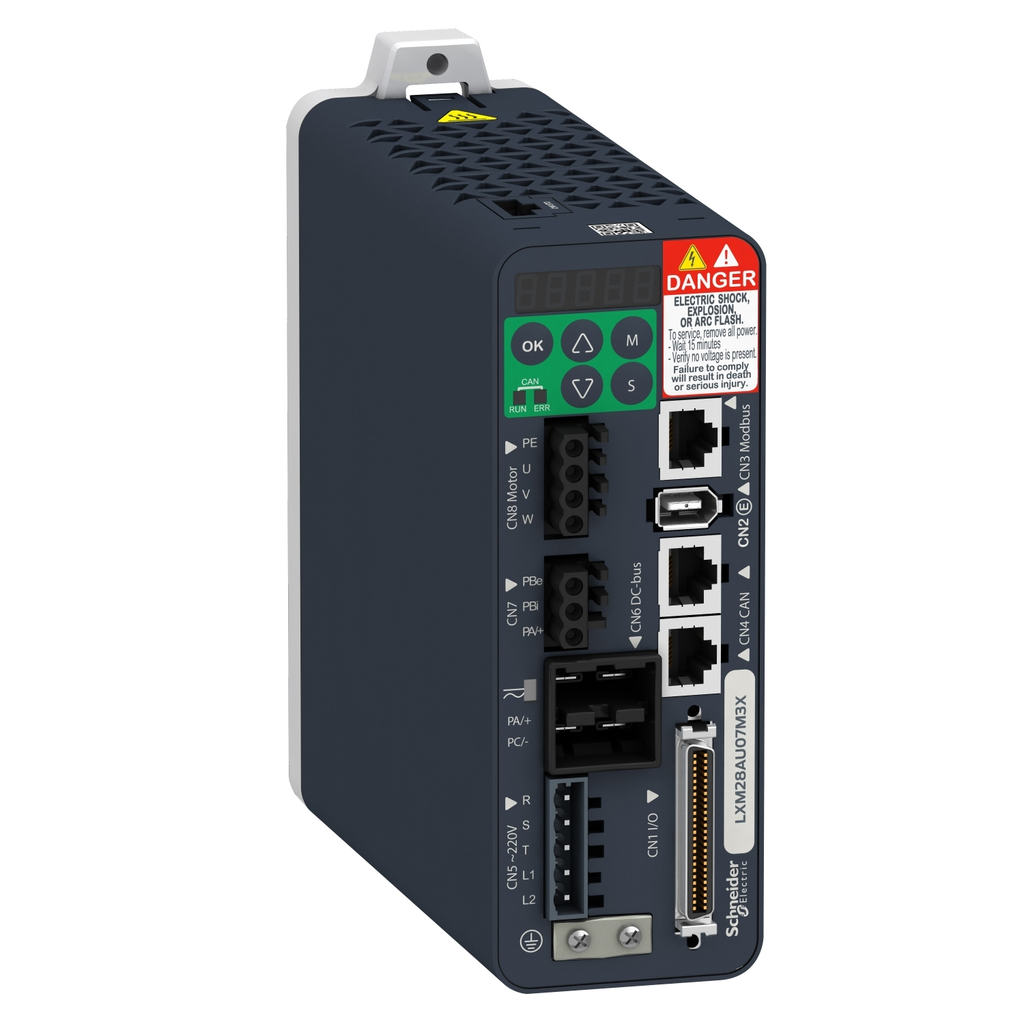

This product is part of the Lexium 28 range, an offer of motion servo drives and servo motors. It is a single or 3-phase servo drive, powered by 200V to 230V, its output power is 50W. It operates via a PTI/PTO interface comprising 6 digital inputs and 3 digital outputs. This servo drive embeds a CANopen/CANmotion fieldbus interfaceembeds a CANopen/CANmotion fieldbus interface It controls a nominal speed of rotation of 3000rpm. It has a pulse-train-input/output interface, 1 digital input, a position sequence mode, 1 Analog input for speed/torque control mode, and a safety function STO. Its dimensions are 55mm wide, 150mm high, and 146mm deep. It weighs 1kg. The Servo drive receives a command signal from a control system, amplifies the signal, and transmits electric current to the servo motor in order to run motion. This servo drive is certified by CE, CULus, and CSA. This servo drive is compatible with 0.5kW BCH2 servo motors. It installs into the control cabinet, in a vertical position (±10°) required for its cooling. Lexium 28 servo drives and Lexium BCH2 servo motors are Optimized servo bundles for compact machines. Designed for optimized & cost-effective.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary
• [Us] Rated Supply Voltage : 200...240 V - 10...15 %)three phase || 200...240 V - 20...15 %)single phase
• Network Frequency : 47.5...63 Hz
• Type Of Cable : shielded motor cable 0-55 °C) copper
• Absolute Accuracy Error : 0.1 %
• Discrete Input Logic : positive or negative CN1)
• Continuous Output Current 2 : 0.64 A
• Continuous Output Current 3 : 0.64 A
• Electrical Isolation : between power and control
• Output Current 3S Peak : 2 A 220 V
• Physical Interface : RS485 Modbus Serial line slave
• Discrete Output Number : 5 logic output CN1)12...24 V DC || 1 pulse train output (PTO) CN1)
• Discrete Input Number : 8 programmable CN1) || 1 pulse train input (PTI) CN1) || 2 fast capture CN1) || 1 safety function STO CN9)
• Signalling Function : servo status and fault codes five 7-segment display units
• Connector Type : RJ45 CN4)CANopen, CANmotion
• Phase : single phase || three phase
• Net Weight : 1 kg
• Analogue Input Number : 2
• Switching Frequency : 16 kHz
• Discrete Output Logic : positive or negative CN1)
• Emc Filter Compatibility : type 020 || type 022
• Field Weakening : false
• Safety Function : STO (safe torque off), Integrated
• Number Of Addresses : 1-127 CANopen, CANmotion
• Maximum Leakage Current : 1.3 mA
• Width : 55 mm
• Overvoltage Category : III
• Depth : 146 mm
• Nominal Power : 0.05 kW 220 V 16 kHz
• Network Number Of Phases : 1 || 3
• Analogue Input Type : V_REF voltage analog input - 10...10 V 10 kOhm 14 bits || T_REF voltage analog input
• Supply Frequency : 50/60 Hz - 5...5 %
• Safety Level : SIL 2 IEC 61800-5-2 2007 || SIL 2 IEC 61508-1 2010 || PL d/category 3 ISO 13849-1 2008 || SIL 2 ISO 13849-1 2009/AC || SIL 2 IEC 60204-1 2006 || SIL 2 IEC 60204-1 2009/A1 || SIL 2 IEC 60204-1 2010/AC || SIL 2 IEC 62061 2012
• Height : 150 mm
• Product Compatibility : servo motor BCH2 40 mm, 1 50 W
• Status Led : 1 LED (Red) charge || 1 LED (Green) RUN || 1 LED (Red) error
• Discrete Input Voltage : 24 V DC logic
• Transmission Rate : 250 kbit/s 100-250 m CANopen, CANmotion || 500 kbit/s 4-100 m CANopen, CANmotion || 1 Mbit/s 4-4 m CANopen, CANmotion
• Discrete Output Voltage : 12...24 V DC
• Marking : CE || CSA || cULus
• Output Current 3S Peak 2 : 2 A 220 V
• Output Current 3S Peak 3 : 2 A 220 V
• Communication Interface : CANopen, Integrated || CANmotion, Integrated
• Electrical Connection : spring terminal 0.82...1 mm², AWG 18 L1-L2) || spring terminal 0.82...1 mm², AWG 18 R, S, T) || spring terminal 0.82...1 mm², AWG 18 U, V, W, PE) || spring terminal 0.82...1 mm², AWG 18 PA/+, PBe)
• Supply Voltage Description : single phase 220 V AC 50...60 Hz || three phase 220 V AC 50...60 Hz
• Type Of Cooling : natural convection
• Supply Voltage Limits : 200-255 V three phase || 170-255 V single phase
• Method Of Access : slave
• Control Signal Type : servo motor encoder feedback CN2
• Output Voltage : <= power supply voltage
• Operating Position : vertical
• Emc Filter : without EMC filter
• Continuous Output Current : 0.64 A 16 kHz
• Switching Frequency 2 : 16 kHz
• Protection Type : against reverse polarity inputs signal || against short-circuits outputs signal || overcurrent motor || overvoltage motor || undervoltage motor || overheating motor || overload motor || overspeed motor
• Switching Frequency 3 : 16 kHz
• Continuous Power : 50 W 220 V
• Drive Voltage Drop Coefficient : 1
• Specifications
• Country of Origin : China
• Width : 55 mm
• Height : 150 mm
• Weight : 1 kg
• Line Current : 0.8 A 262.8 % 220 V, single phase || 0.8 A 227 % 220 V, three phase
• Format Of The Drive : compact housing
• Product Or Component Type : motion servo drive
• Range Of Product : Lexium 28
• Device Short Name : LXM28A
• Environmental data
• Mercury Free : Yes
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Take-Back : No
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 21.4310675676
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 253 kg CO2 eq.
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 253.3783449864
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : No
• Environmental Disclosure : ENVPEP1409001EN
• Packaging Without Single Use Plastic : No
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase [A5] : 0.012204973
• Circularity Profile : ENVEOLI1409001EN
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 231.1964825809
• Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.6 kg CO2 eq.
• Carbon Footprint Of The Distribution Phase [A4] : 0.2 kg CO2 eq.
• Pvc Free : Yes
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Environment
• Product Certifications : CSA || CE || cULus
• Standards : IEC 61800-5-1
• Vibration Resistance : 3M4 3 mm 9-200 Hz)IEC 60721-3-3
• Shock Resistance : 10 gn, type I IEC 60721-3-3
• Operating Altitude : <= 3280.84 ft (1000 m) without derating || > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m
• Ambient Air Temperature For Operation : 0-55 °C
• Electromagnetic Compatibility : conducted emission - test level: level 3 category C3 conforming to IEC 61800-3
• Ambient Air Temperature For Storage : -25-65 °C
• Relative Humidity : 5-95 % without condensation
• Ip Degree Of Protection : IP20
