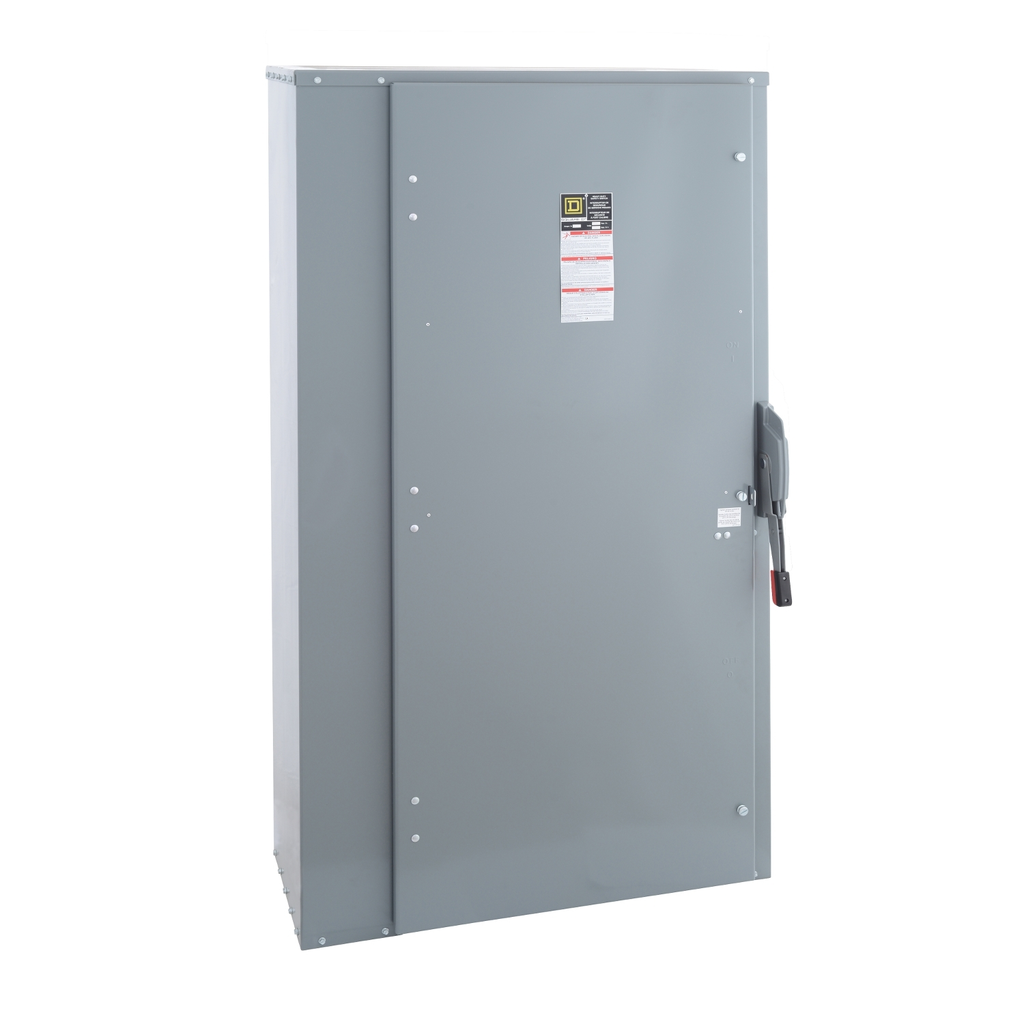

Safety switch, heavy duty, non fusible, 1200A, 3 wire, 3 pole, 500HP, 600V AC/DC, NEMA 1

SW NOT FUSIBLE HD 600V 1200A 3

SQDHU368 HU368 785901195498
7228.28 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Safety switch, heavy duty, non fusible, 1200A, 3 wire, 3 pole, 500HP, 600V AC/DC, NEMA 1-1
  • Country of Origin: Mexico
  • Depth: 17.75 in
  • Height: 69.13 in
  • Net Weight: 166 kg
  • Number of Poles: 3
  • Warranty Length: 18 mth
  • Weight: 166 kg
  • Width: 36.62 in
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Heavy Duty Safety Switches are utized from commercial and institutional to industrial and manufacturing facilities. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA Type KS-1 or UL98 standards require. The design life of a F-Series switch is a minimum of three times the NEMA requirement. An abundance of copper is used in the heaviest current carrying power paths of all Square D by Schneider Electric Heavy Duty Safety Switches. The more copper for current carrying paths, the lower the temperature rise. Managing temperatures inside the switch is the key to providing greater service life. This heavy duty Single Throw Safety Switch has a rated current of 1200A and has a NEMA 1 degree of protection. This non-fusible disconnect has a short circuit rating of 200kA@600VAC. This safety switch has a steel enclosure and is surface mounted. This product os compatable with L fuses. The acceptable AWG gauge for this product is AWG 3/0 / 750 kcmil, copper or aluminiumand has a tightening torque of 375-375 lbf.in. This product complys to UL listed file E2875 standards and comes with an 18 month warranty. Dimensions for this product are 69.13 in (H), 36.62 in (W), 17.75 in (D).
QTY
  • Product Description
  • Features
  • Specifications
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Heavy Duty Safety Switches are utized from commercial and institutional to industrial and manufacturing facilities. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA Type KS-1 or UL98 standards require. The design life of a F-Series switch is a minimum of three times the NEMA requirement. An abundance of copper is used in the heaviest current carrying power paths of all Square D by Schneider Electric Heavy Duty Safety Switches. The more copper for current carrying paths, the lower the temperature rise. Managing temperatures inside the switch is the key to providing greater service life. This heavy duty Single Throw Safety Switch has a rated current of 1200A and has a NEMA 1 degree of protection. This non-fusible disconnect has a short circuit rating of 200kA@600VAC. This safety switch has a steel enclosure and is surface mounted. This product os compatable with L fuses. The acceptable AWG gauge for this product is AWG 3/0 / 750 kcmil, copper or aluminiumand has a tightening torque of 375-375 lbf.in. This product complys to UL listed file E2875 standards and comes with an 18 month warranty. Dimensions for this product are 69.13 in (H), 36.62 in (W), 17.75 in (D).
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL listed file E2875
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2503030_V1
    • Halogen Content Performance : Halogen free plastic parts product
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : N/A
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 1092.6315181856207
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 1.781701981044254
    • Carbon Footprint Of The Distribution Phase [A4] : 0.4 kg CO2 eq.
    • Pvc Free : Yes
    • Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq.
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 1 095 kg CO2 eq.
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.4281391821868275
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 1095.231037354808
  • Complementary
    • Height : 69.13 in
    • Device Mounting : surface
    • Tightening Torque : 375-375 lbf.in 85.01-380 mm² (AWG 3/0...750 kcmil)
    • Net Weight : 166 kg
    • Electrical Connection : lugs
    • Awg Gauge : AWG 3/0...750 kcmil copper or aluminium
    • Wiring Configuration : 3-wire
    • Width : 36.62 in
    • Depth : 17.75 in
  • Specifications
    • Country of Origin : Mexico
    • Width : 36.62 in
    • Height : 69.13 in
    • Weight : 166 kg
    • Disconnector Device Type : non-fusible disconnect
    • Product Or Component Type : Single Throw Safety Switch
    • Series Name : heavy duty
    • Nema Degree Of Protection : NEMA 1 steel
    • Line Rated Current : 1200 A
    • Motor Power Hp : 50 hp at 600 V AC 50-60 Hz for 1 phase motors || 500 hp at 600 V AC 50-60 Hz for 3 phase motors || 50 hp at 600 V DC
    • Device Composition : none
    • Device Application : heavy application
    • Number Of Poles : 3
    • [Ue] Rated Operational Voltage : 600 V AC/DC
