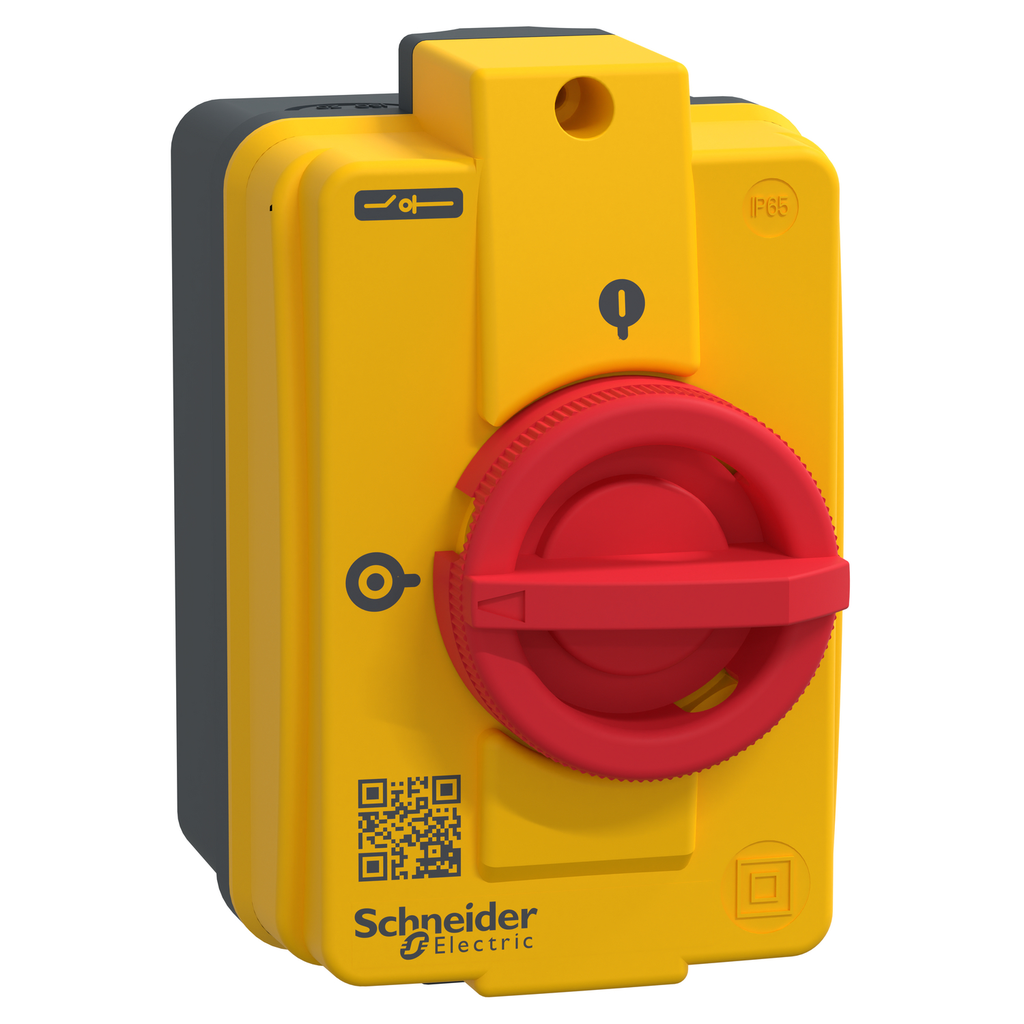

TeSys enclosed starter with switch disconnector, 3 poles, Ithe 32A 690V, for main and emergency stop switching in motor applications up to 15kW@400V AC-23. Enclosure providing IP55 protection, yellow cover fitted with a red rotary handle and I/O marking, padlockable (padlocks not included). It includes a 3-pole Vario switch body V2 with no possibility to have add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60947-4-1.

• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004146_3D-CAD&p_File_name=MCADPD0004146_3D-simplified.stp
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004146_3D-CAD&p_File_name=MCADPD0004146_2D-back.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004146_3D-CAD&p_File_name=MCADPD0004146_2D-back.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004146_3D-CAD&p_File_name=MCADPD0004146_2D-bottom.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004146_3D-CAD&p_File_name=MCADPD0004146_2D-bottom.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004146_3D-CAD&p_File_name=MCADPD0004146_2D-front.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004146_3D-CAD&p_File_name=MCADPD0004146_2D-front.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004146_3D-CAD&p_File_name=MCADPD0004146_2D-isometric.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004146_3D-CAD&p_File_name=MCADPD0004146_2D-isometric.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004146_3D-CAD&p_File_name=MCADPD0004146_2D-left.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004146_3D-CAD&p_File_name=MCADPD0004146_2D-left.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004146_3D-CAD&p_File_name=MCADPD0004146_2D-right.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004146_3D-CAD&p_File_name=MCADPD0004146_2D-right.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004146_3D-CAD&p_File_name=MCADPD0004146_2D-top.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004146_3D-CAD&p_File_name=MCADPD0004146_2D-top.dxf
• Making Capacity
• 400 A 400 V AC-21A
• Prop 65
• WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.08096519078500214
• 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 1 kg CO2 eq.
• 1.1202873398259132
• ICW Rated Short Time Withstand Current
• 960 A 400 V 1 s
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 3 kg CO2 eq.
• 2.6930009789520537
• Rated Operational Power In W
• 15 kW 400 V AC-23)
• 11 kW 400 V AC-3)
• Fire Resistance
• 960 °C IEC 60595-2-1
• Rotary Handle Padlocking
• 1 to 3 padlocks 4-8 mm
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 13 kg CO2 eq.
• 13.432378470046519
• Carbon Footprint Of The Distribution Phase A4
• 0.09977178507571986
• 0.1 kg CO2 eq.
• Mechanical Robustness
• vibrations 10...150 Hz 1 gn) IEC 60068-2-6
• shocks 11 ms 30 Gn) IEC 60068-2-27
• UE Rated Operational Voltage
• 690 V AC
• Rated Conditional Short Circuit Current
• 10 kA 400 V

• Physical Attributes
• Handle Color : red
• Handle Front Plate Color : yellow
• Complementary Attributes
• UIMP Rated Impulse Withstand Voltage : 8 kV
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-10
• Device Type : LV equipment - LV switch - disconnector
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Manufacturing Carbon Footprint : 2.6930009789520537
• Distribution Carbon Footprint : 0.09977178507571986
• Installation Carbon Footprint : 0.08096519078500214
• Use Carbon Footprint : 13.432378470046519
• End Of Life Carbon Footprint : 1.1202873398259132
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant
• ROHS EUR Conformity Date : 1936
• ROHS EUR Full Compliance Status : Compliant
• ROHS EUR Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Base Dimension : 60 x 60 mm
• Compatibility Code : enclosed switch disconnector
• Device Short Name : VCFN
• Handle Color : red
• Handle Front Plate Color : yellow
• Intermittent Duty Class : 30
• Package Weight Lbs : 349.000 g
• Performance Level : standard
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : emergency stop switch disconnector
• Protective Treatment : TC
• Range : TeSys
• Returnability : No
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 17 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 17.426403764685208
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2211019
• Pep Verification Date : 2025-08-05
• PCR Version : PCR-4-ed4-EN-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Product Weight In G : 512
• Functional Unit Description : Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 20
• Energy Consumption On Product Lifetime In Kwh : 201.04199999999997
• Recyclability Potential In : 20
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• Energy Model Manufacturing A1 A3 : Czech Republic, CZ
• Energy Model Installation A5 : Electricity Mix; Low voltage; 2018; France, FR
• Energy Model Use B6 : Electricity Mix; Low voltage; 2018; France, FR
• Energy Model End Of Life C1 C4 : Electricity Mix; Low voltage; 2018; France, FR
• Acidification Ap Mole Of H Equiv Total Life Cycle : 0.09266060502444712
• Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.012503335912112107
• Acidification Ap Mole Of H Equiv Distribution A4 : 0.0006312785529773576
• Acidification Ap Mole Of H Equiv Installation A5 : 0.000244783402608405
• Acidification Ap Mole Of H Equiv Maintenance B2 : 0
• Acidification Ap Mole Of H Equiv Repair B3 : 0
• Acidification Ap Mole Of H Equiv Replacement B4 : 0
• Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0.077754681176669
• Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.0015265259800802437
• Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.0030347465840038245
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.15249545231842113
• Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.11257489706660462
• Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.004032818708060329
• Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0.03461482784225228
• Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.0012729087015038883
• Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.011534127066227555
• Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 17.273527327496588
• Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 2.5800451121270296
• Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.09977178507571986
• Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.07693237207694177
• Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 13.397763642204268
• Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 1.1190144160126272
• Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.4158266799321136
• Climate Change Total Kg Co2 Eq Total Life Cycle : 17.426403764685208
• Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 2.6930009789520537
• Climate Change Total Kg Co2 Eq Distribution A4 : 0.09977178507571986
• Climate Change Total Kg Co2 Eq Installation A5 : 0.08096519078500214
• Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 13.432378470046519
• Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 1.1202873398259132
• Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.42736080699834106
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Maintenance B2 : 0
• Components For Re Use Kg Repair B3 : 0
• Components For Re Use Kg Replacement B4 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.00012105153606740382
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.00011378175406462377
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.00000000392407162198
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.00000000206209831263
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.00000635558806367139
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.00000090820776917404
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.00009017353746699259
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 2653.9129911384553
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 54.325188460619096
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 1.3905372082747975
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.8359275311799266
• Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 2579.3837889135766
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 17.977549024804922
• Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -7.635707600857538
• Ecotoxicity Fresh Water Ctue Total Life Cycle : 618.8690391096653
• Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 519.349992315391
• Ecotoxicity Fresh Water Ctue Distribution A4 : 0.06714422681123063
• Ecotoxicity Fresh Water Ctue Installation A5 : 0.9309318683521731
• Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
• Ecotoxicity Fresh Water Ctue Repair B3 : 0
• Ecotoxicity Fresh Water Ctue Replacement B4 : 0
• Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 94.86423973155671
• Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 3.6567309675541115
• Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -9.330968310143986
• Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.00000324255161168138
• Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.00000021452072246895
• Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.00000000513372394373
• Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.0000000014752867274
• Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
• Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
• Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
• Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0.00000301189194148299
• Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.00000000952993705832
• Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.00000015515925187362
• Exported Energy Mj By Energy Vector Total Life Cycle : 0.00368408869642598
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.0014743926195079054
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0.001390680779129576
• Exported Energy Mj By Energy Vector Maintenance B2 : 0
• Exported Energy Mj By Energy Vector Repair B3 : 0
• Exported Energy Mj By Energy Vector Replacement B4 : 0
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0.0008190152977884986
• Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
• Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.0007241238096455721
• Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.00005502610223404457
• Freshwater Eutrophication Kg P Eq Distribution A4 : 0.00000003738950598137
• Freshwater Eutrophication Kg P Eq Installation A5 : 0.00000149525506007796
• Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
• Freshwater Eutrophication Kg P Eq Repair B3 : 0
• Freshwater Eutrophication Kg P Eq Replacement B4 : 0
• Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.000638846801166614
• Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.00002871826167885415
• Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.00000193600490678161
• Hazardous Waste Disposed Of Kg Total Life Cycle : 8.903545964479797
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 8.901411146670227
• Hazardous Waste Disposed Of Kg Distribution A4 : 0
• Hazardous Waste Disposed Of Kg Installation A5 : 0.002116675608441826
• Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Hazardous Waste Disposed Of Kg Repair B3 : 0
• Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.00001814220112799186
• Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -7.097770138755576
• Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.00000143862475568395
• Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000142674130695113
• Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0.00000000000175165415
• Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.00000000957837611035
• Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000000224770971591
• Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000000005561125242
• Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000105592039295112
• Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.00000030033292174441
• Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000019542299386944
• Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0.00000000018955856634
• Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.00000000033724793896
• Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.0000000970255884921
• Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000000735753287757
• Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000002633654655814
• Impacts Related To Land Use Soil Quality Total Life Cycle : 1.727382241470966
• Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 1.214631036947512
• Impacts Related To Land Use Soil Quality Distribution A4 : 0
• Impacts Related To Land Use Soil Quality Installation A5 : 0.00023237689458263108
• Impacts Related To Land Use Soil Quality Maintenance B2 : 0
• Impacts Related To Land Use Soil Quality Repair B3 : 0
• Impacts Related To Land Use Soil Quality Replacement B4 : 0
• Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0.42819681698339707
• Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0.08432201064547422
• Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : -0.0008137557758286941
• Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 357.0774903205456
• Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 8.879229806929114
• Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.0002427833028183605
• Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.012974867456446212
• Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 348.18239878432615
• Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.0026440785310993483
• Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -1.2969851186916945
• Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.013445950805813813
• Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.0019102128053197808
• Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.00029589741652998524
• Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.00010532534616885955
• Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.010700783539616149
• Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.00043373169817903837
• Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.00032574239161684406
• Materials For Energy Recovery Kg Total Life Cycle : 0
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Maintenance B2 : 0
• Materials For Energy Recovery Kg Repair B3 : 0
• Materials For Energy Recovery Kg Replacement B4 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0
• Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
• Materials For Recycling Kg Total Life Cycle : 0.09523764154096982
• Materials For Recycling Kg Manufacturing A1 A3 : 0.012439946617500627
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0
• Materials For Recycling Kg Maintenance B2 : 0
• Materials For Recycling Kg Repair B3 : 0
• Materials For Recycling Kg Replacement B4 : 0
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 0.0827976949234692
• Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
• Net Use Of Fresh Water M3 Total Life Cycle : 0.04470285875735201
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.017675581296713577
• Net Use Of Fresh Water M3 Distribution A4 : 0.00000881321961179628
• Net Use Of Fresh Water M3 Installation A5 : 0.0001441557783117664
• Net Use Of Fresh Water M3 Maintenance B2 : 0
• Net Use Of Fresh Water M3 Repair B3 : 0
• Net Use Of Fresh Water M3 Replacement B4 : 0
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.022651611785795077
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.004222696676919796
• Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.004470288441315298
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 3.9321848817448206
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 2.2499741696536235
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.0034988711446926626
• Non Hazardous Waste Disposed Of Kg Installation A5 : 0.028114240409481062
• Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Non Hazardous Waste Disposed Of Kg Repair B3 : 0
• Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 1.2915997000962767
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.3589979004407462
• Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.26421809392895024
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.00000034268205097323
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.00000014250904590305
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.00000000015279954448
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.00000000108810547074
• Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.00000019762232702149
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.00000000130977303347
• Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.00000007049499282683
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.040609102841047094
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.006561154238763953
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.0008187590871312927
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.0001672561636244207
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.031691514612935644
• Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.001370418738591781
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.0011251942518063264
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.0018588371592930012
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0012956330052269897
• Radioactive Waste Disposed Of Kg Distribution A4 : 0.00000249200250400111
• Radioactive Waste Disposed Of Kg Installation A5 : 0.00000436976104598049
• Radioactive Waste Disposed Of Kg Maintenance B2 : 0
• Radioactive Waste Disposed Of Kg Repair B3 : 0
• Radioactive Waste Disposed Of Kg Replacement B4 : 0
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.0005425934558559063
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.00001374893466012366
• Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.00012068816278201933
• Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.18249500860183468
• Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.019741245431467477
• Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.003246137425262371
• Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.0007353522294817554
• Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
• Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
• Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
• Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0.15381337840477477
• Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.004958895110848319
• Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.003330820012501225
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 11.021241605038856
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 11.021241605038856
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 2896.535262324631
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 58.33719993944603
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 1.3923928159548822
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.9462671594117995
• Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 2817.8535348135624
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 18.005867596255456
• Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -8.607904098694817
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 242.6222711861755
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 4.012011478826943
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0018556076800846808
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.11033962823187282
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 238.46974589998607
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.02831857145053967
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.9721964978372796
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 11.021241605038856
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 11.021241605038856
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2642.8917495334163
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 43.303946855580264
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 1.3905372082747975
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.8359275311799266
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 2579.3837889135766
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 17.977549024804922
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -7.635707600857538
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1.48565006385696
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.48565006385696
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -1.174928695652174
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 241.13662112231856
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2.5263614149699825
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0018556076800846808
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.11033962823187282
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 238.46974589998607
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.02831857145053967
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0.2027321978148942
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Maintenance B2 : 0
• Use Of Secondary Materials Kg Repair B3 : 0
• Use Of Secondary Materials Kg Replacement B4 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
• Water Use M3 Eq Total Life Cycle : 1.727191124117895
• Water Use M3 Eq Manufacturing A1 A3 : 0.5663717399453934
• Water Use M3 Eq Distribution A4 : 0.00037852778232665016
• Water Use M3 Eq Installation A5 : 0.006189562618520284
• Water Use M3 Eq Maintenance B2 : 0
• Water Use M3 Eq Repair B3 : 0
• Water Use M3 Eq Replacement B4 : 0
• Water Use M3 Eq Operational Energy Use B6 : 0.9728867261998989
• Water Use M3 Eq End Of Life C1 C4 : 0.18136456757175562
• Water Use M3 Eq Benefits Loads Beyond System Boundaries D : -0.19197752114027392
• Air Pollution M3 Total Life Cycle : 0
• Air Pollution M3 Manufacturing A1 A3 : 0
• Air Pollution M3 Distribution A4 : 0
• Air Pollution M3 Installation A5 : 0
• Air Pollution M3 Maintenance B2 : 0
• Air Pollution M3 Repair B3 : 0
• Air Pollution M3 Replacement B4 : 0
• Air Pollution M3 Operational Energy Use B6 : 0
• Air Pollution M3 End Of Life C1 C4 : 0
• Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• Water Pollution M3 Total Life Cycle : 0
• Water Pollution M3 Manufacturing A1 A3 : 0
• Water Pollution M3 Distribution A4 : 0
• Water Pollution M3 Installation A5 : 0
• Water Pollution M3 Maintenance B2 : 0
• Water Pollution M3 Repair B3 : 0
• Water Pollution M3 Replacement B4 : 0
• Water Pollution M3 Operational Energy Use B6 : 0
• Water Pollution M3 End Of Life C1 C4 : 0
• Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• General Attributes
• Product Or Component Type : emergency stop switch disconnector
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=643564&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 17.426403764685208
• Environmental Disclosure : ENVPEP2211019
• EU ROHS Directive : Compliant
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2211019
• Pep Verification Date : 2025-08-05
• PCR Version : PCR-4-ed4-EN-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Czechia
