All in one, Homeline, CSED, ringed socket, 200A, surface mount, 42 spaces, 42 circuits, 22kA SCCR, no bypass, solar ready

ALL-IN-ONE RING OH/UG SURFACE

SQDSC42M200PS SC42M200PS 785901176152
256.96 / EA
http://schema.org/OutOfStock
Mayer-DDS-All in one, Homeline, CSED, ringed socket, 200A, surface mount, 42 spaces, 42 circuits, 22kA SCCR, no bypass, solar ready-2

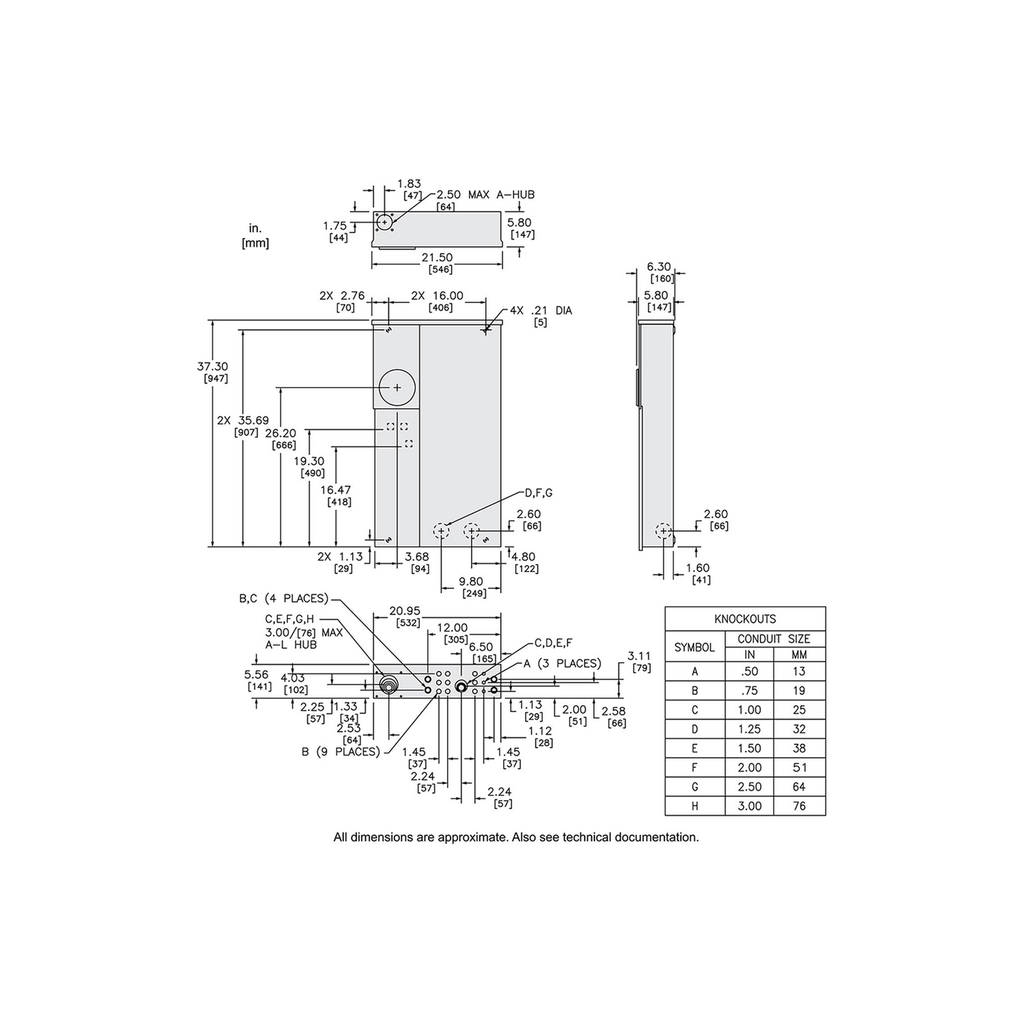

  • Depth: 6.30 in
  • Height: 37.30 in
  • Number of Circuits: 42
  • Number of Spaces: 42
  • Short Circuit Current Rating: 22 kA
  • Width: 21.50 in
The Square D® Homeline® Load Centers and Homeline Solar Ready PoN CSEDs, SC42M200PS, provides metered service and a main circuit breaker and 42 circuits. All-In-Ones are UL Listed, suitable only for use as service equipment. This device meets EUSERC standarts, Federal Specification W-P-115c as Type 1, Class 2. Suitable for OH service with addition of tunnel kit (SCTKP20). This Homeline load center has a two pole GFCI circuit breaker that is rated at 50A 120/240 VAC single phase. Homeline load center provides a 10 kA breaking capacity. This system provides 2 spaces in a NEMA 3R rain proof enclosure. The electrical connections are box lugs. The box lugs will accept a wire range of 8 AWG to 6 AWG copper or aluminum wire. This Homeline load center has a height of 9.37 inches, a width of 4.88 inches, and depth of 4.01 inches. CHOM Homeline load centers are CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
The Square D® Homeline® Load Centers and Homeline Solar Ready PoN CSEDs, SC42M200PS, provides metered service and a main circuit breaker and 42 circuits. All-In-Ones are UL Listed, suitable only for use as service equipment. This device meets EUSERC standarts, Federal Specification W-P-115c as Type 1, Class 2. Suitable for OH service with addition of tunnel kit (SCTKP20). This Homeline load center has a two pole GFCI circuit breaker that is rated at 50A 120/240 VAC single phase. Homeline load center provides a 10 kA breaking capacity. This system provides 2 spaces in a NEMA 3R rain proof enclosure. The electrical connections are box lugs. The box lugs will accept a wire range of 8 AWG to 6 AWG copper or aluminum wire. This Homeline load center has a height of 9.37 inches, a width of 4.88 inches, and depth of 4.01 inches. CHOM Homeline load centers are CSA certified.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Connections - Terminals : plug-on neutral
    • Height : 37.30 in
    • Tightening Torque : main lugs 250 lb.in, AWG 4...250 kcmil, aluminium/copper || service ground 50 lb.in, AWG 14...AWG 2/0, copper || service ground 50 lb.in, AWG 12...AWG 2/0, aluminium || branch lugs 50 lb.in, AWG 14...AWG 4, copper || branch lugs 50 lb.in, AWG 12...AWG 2, aluminium || branch lugs 35 lb.in, AWG 6...AWG 4, aluminium/copper || branch lugs 25 lb.in, AWG 8, aluminium/copper || branch lugs 20 lb.in, AWG 14...AWG 10, aluminium/copper || branch lugs 20 lb.in, AWG 12...AWG 10, aluminium/copper || Cover 10 lb.in
    • Branch Circuit Breaker Rated Current : 200 A
    • Bypass Type : no bypass
    • Service Feed Location : OH || UG
    • Bus Rated Current : 225.0 A
    • Electrical Connection : lugs, line side || lugs, service ground
    • Number Of Circuits : 42
    • Number Of Spaces : 42
    • Short-Circuit Current : 22 kA
    • Number Of Tandem Circuit Breakers : 0
    • Service Disconnect Rated Current : 200 A
    • Line Rated Current : 200 A
    • Width : 21.50 in
    • Awg Gauge : AWG 4...250 kcmil (aluminium/copper) line side || AWG 14...AWG 2/0 (aluminium/copper) service ground
    • Depth : 6.30 in
    • Product Compatibility : solar ready
    • Colour Of Enclosure : grey
    • Device Mounting : semi flush
  • Specifications
    • Country of Origin : Mexico
    • Width : 21.50 in
    • Height : 37.30 in
    • Range Of Product : Homeline
    • Product Or Component Type : All-In-One
    • Hub Type : A
    • Meter Socket Type : ringed
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1407020EN
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Circularity Profile : N/A
    • Take-Back : No
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 439.4429800417
  • Environment
    • Nema Degree Of Protection : NEMA 3R
