SQUARE D

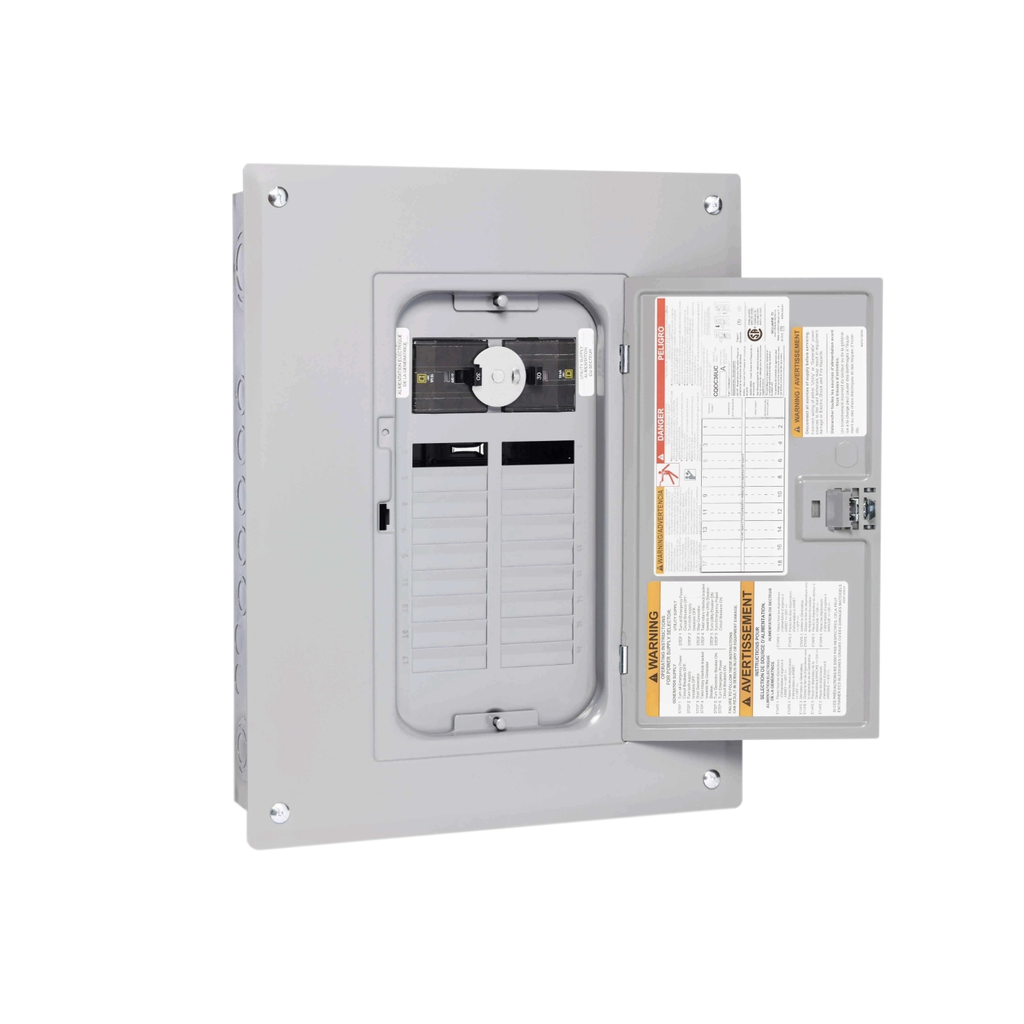

Generator panel, QO, 1 phase, 18 spaces, 36 circuits, 30A main breaker, PoN, NEMA1, cover with door

Generator panel, QO, 1 phase,

SQDQOGP3P3036P QOGP3P3036P 785901666967
239.10 / EA
http://schema.org/OutOfStock
Mayer-DDS-Generator panel, QO, 1 phase, 18 spaces, 36 circuits, 30A main breaker, PoN, NEMA1, cover with door-1
QO Load Centers offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside. QO Load Centers enable the use of a full complement of accessories. Systems can be single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 180 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. QO Load Centers feature plated copper bus, providing superior performance and durability. This QO Generator Panel contains a main breaker and is rated at 30 A and 1 phase. This system provides 18 spaces in a NEMA 1 enclosure and it is Plug-on neutral load center. CQO load centers are CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
QO Load Centers offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside. QO Load Centers enable the use of a full complement of accessories. Systems can be single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 180 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. QO Load Centers feature plated copper bus, providing superior performance and durability. This QO Generator Panel contains a main breaker and is rated at 30 A and 1 phase. This system provides 18 spaces in a NEMA 1 enclosure and it is Plug-on neutral load center. CQO load centers are CSA certified.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Nema Degree Of Protection
    • NEMA 1 indoor enclosure
  • Persona Type Names
    • End User
    • Contractor
  • Persona Type Ids
    • EU
    • LC
  • Tightening Torque
    • Cover 20 lb.in
  • UE Rated Operational Voltage
    • 120/240 V AC
  • General Attributes
    • Phase : 1 phase
    • Product Or Component Type : panel
    • Range Of Product : QO
  • Important Information Attributes
    • B2B Bullet Point 1 : QO Load center provides superior performance and durability
    • B2B Bullet Point 2 : Straight in wiring saves wire, labor, and time
    • B2B Bullet Point 3 : Compatible with any Square D™ QO Circuit Breaker
    • B2B Bullet Point 4 : The fully distributed neutral bar allows for QO™ plug-on neutral circuit breakers in any space
    • B2B Bullet Point 5 : Complies with UL 67 listed, CSA, and IEC standards
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • HTML Description : Generator panel, QO, 1 phase, 18 spaces, 36 circuits, 30A main breaker, PoN, NEMA1, cover with door, UL
    • Manufacturer : Schneider Electric
    • Legacy WEEE Scope : In
    • WEEE Product Category : 4
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 2436
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : L - LOB initialized
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Load centers (equipped)
    • H And D Enrichment Class 4 : Single-phase convertible mains indoor load center
    • Load Center Type : PoN Convertible Mains (breaker)
    • Package Weight Lbs : 9.299 kg
    • Phase : 1 phase
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : panel
    • Range Of Product : QO
    • Returnability : Yes
    • Sustainable Packaging : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Pep Code : ENVPEP2212001
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2212001
    • EU ROHS Directive : Compliant with Exemptions
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2212001
