Busway, I-Line, plug in, tap box, 400A, 600VAC, aluminum, 600A, 600 VAC, copper, 3 phase, 4 wire, integral ground bus

SQD PBTB506G BUSWAY PLUG-IN TA

SQDPBTB506G PBTB506G 785901787198
9878.11 / EACH
http://schema.org/OutOfStock

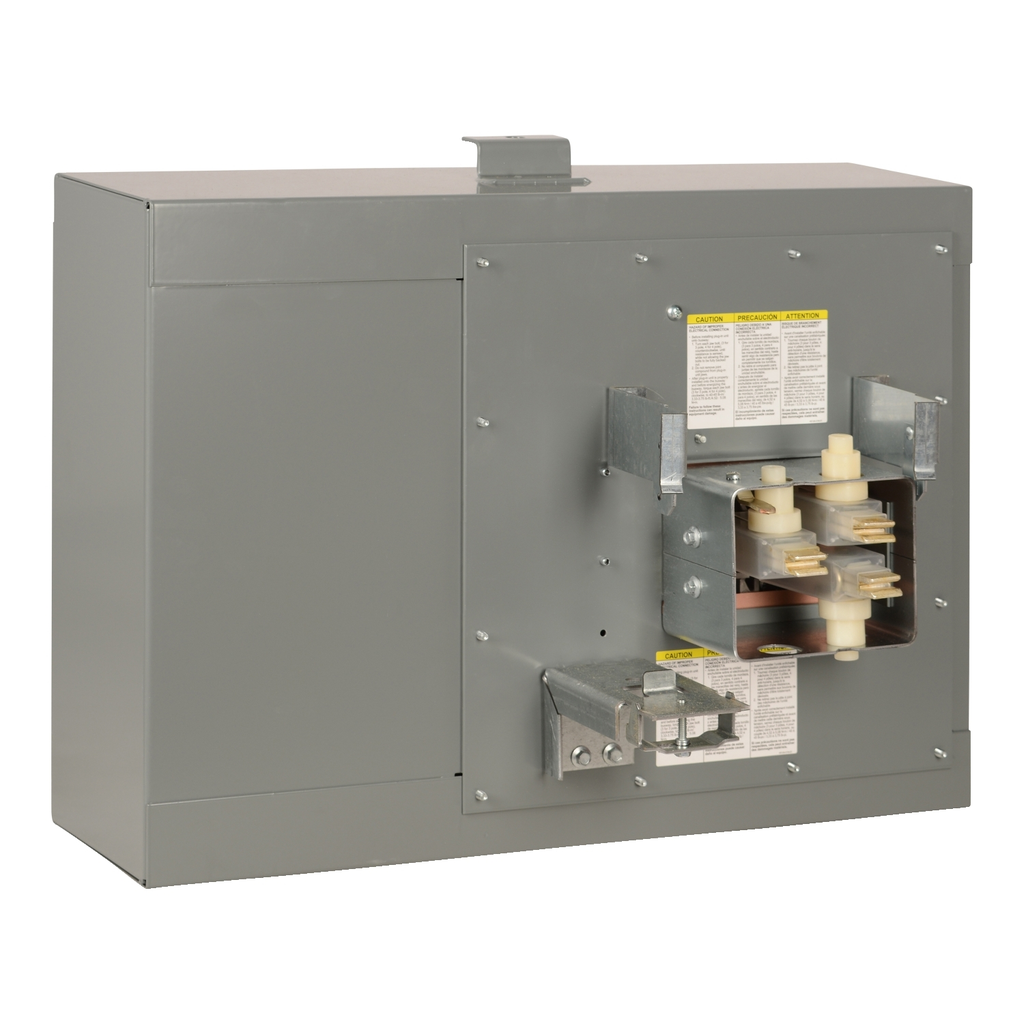

Mayer-DDS-Busway, I-Line, plug in, tap box, 400A, 600VAC, aluminum, 600A, 600 VAC, copper, 3 phase, 4 wire, integral ground bus-1
  • Country of Origin: USA
  • Depth: 197 mm
  • Height: 468 mm
  • Warranty Length: 18 mth
  • Width: 659 mm
I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. I-Line plug-in busway has options from 225A to 600A with aluminum or copper conductors. I-Line busway is constructed with three pole and four pole full neutral configurations for system voltages to 600 volts. This busway system is rated to allow 100% of the current to flow continuously. This I-Line plug in tap box is for 400A and 600A 3 phase, 4 wire with integral ground bus systems. I-Line busway is UL listed and CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. I-Line plug-in busway has options from 225A to 600A with aluminum or copper conductors. I-Line busway is constructed with three pole and four pole full neutral configurations for system voltages to 600 volts. This busway system is rated to allow 100% of the current to flow continuously. This I-Line plug in tap box is for 400A and 600A 3 phase, 4 wire with integral ground bus systems. I-Line busway is UL listed and CSA certified.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL listed file E22182 || CSA C22.2 No 27
    • Standards : UL 857
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2412022_V1
    • Packaging Without Single Use Plastic : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Circularity Profile : N/A
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 168.96567536299636
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 24.953828689483696
    • Carbon Footprint Of The Distribution Phase [A4] : 12 kg CO2 eq.
    • Pvc Free : Yes
    • Carbon Footprint Of The Installation Phase [A5] : 0.8 kg CO2 eq.
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 220 kg CO2 eq.
    • Eu Rohs Directive : Compliant
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 12.596585467001546
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 219.730210940815
  • Complementary
    • Height : 468 mm
    • Phase : 3 phase
    • Material : aluminium
    • Line Rated Current : 600-600 A || 400-400 A
    • Mounting Mode : plug-in
    • Wiring Configuration : 4-wire (integral ground bus)
    • Width : 659 mm
    • Depth : 197 mm
    • Awg Gauge : AWG 2...600 kcmil 2 phase and neutral || AWG 1/0 2 ground
  • Specifications
    • Country of Origin : United States
    • Width : 659 mm
    • Height : 468 mm
    • Range Of Product : I-Line
    • Product Or Component Type : tap box
