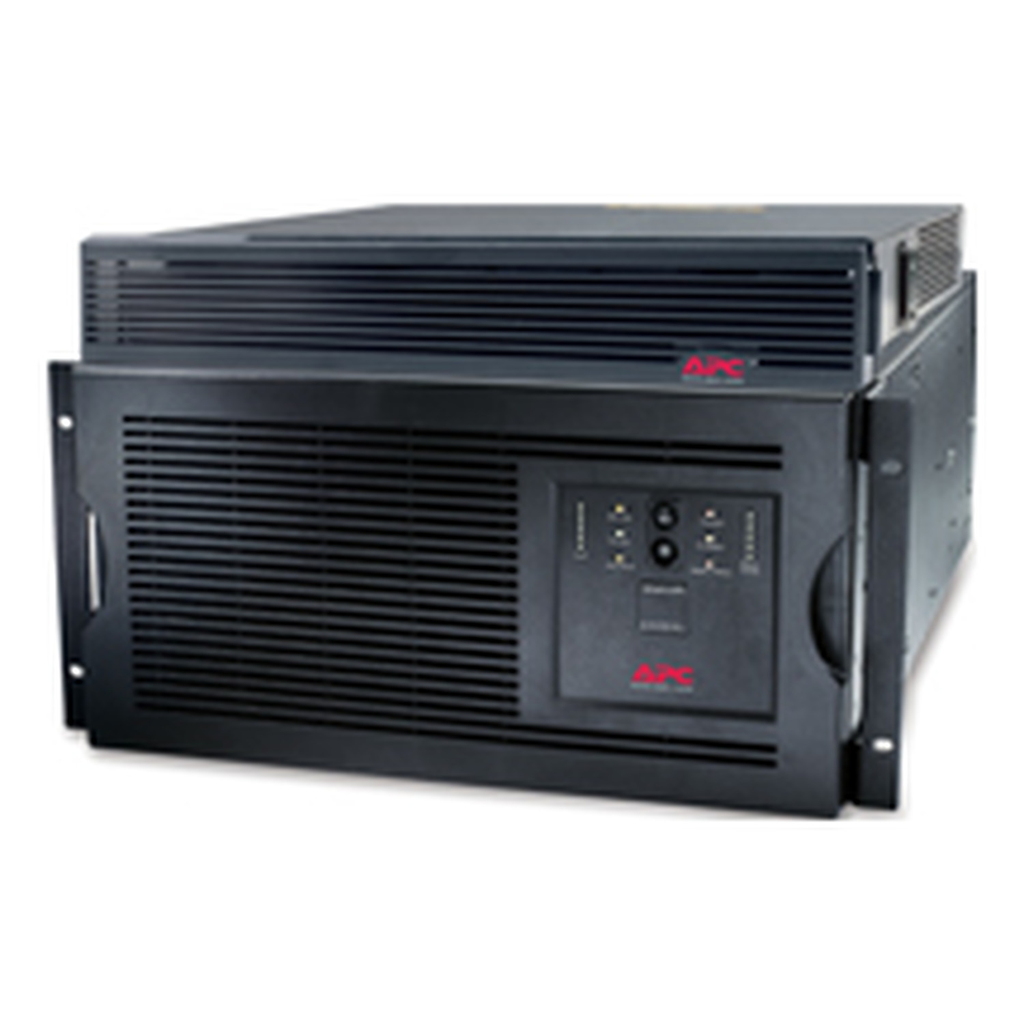

APC Smart-UPS 5000VA RM w/Transformer, 208V input and 120/208V Output

APC Smart-UPS 5000VA RM w/Tran

SQDSUA5000R5TXFMR SUA5000R5TXFMR SQDSUA5000R5TXFMR
0.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-APC Smart-UPS 5000VA RM w/Transformer, 208V input and 120/208V Output-1
  • Cable Length: 8 ft
  • Country of Origin: India
  • Depth: 63.5 cm
  • Height: 31.1 cm
  • Length: 8 ft
  • Net Weight: 145.45 kg
  • Warranty Length: 2 yr
  • Weight: 145.45 kg
  • Width: 48.3 cm
The APC Smart-UPS includes a transformer and supports 208V input and 120 and 208V output. It has a power capacity of 5000VA and 4000 watts. The UPS features multiple output connections, including 12 NEMA 5-20R, 2 NEMA L6-20R, and 1 NEMA L6-30R. It uses a lead-acid battery.
QTY
  • Product Description
  • Features
  • Specifications
The APC Smart-UPS includes a transformer and supports 208V input and 120 and 208V output. It has a power capacity of 5000VA and 4000 watts. The UPS features multiple output connections, including 12 NEMA 5-20R, 2 NEMA L6-20R, and 1 NEMA L6-30R. It uses a lead-acid battery.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Conformance
    • Product Certifications : CSA
  • Contractual warranty
    • Warranty : 2 years repair or replace, optional on-site warranties available, optional extended warranties available
  • Communications & Management
    • Alarm : alarm when on battery : distinctive low battery alarm : configurable delays
    • Free Slots : 0
    • Control Panel : LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
  • Physical
    • Height : 31.1 cm
    • Number Of Cables : 1
    • Usb Compatible : No
    • Cable Length : 8 ft
    • Net Weight : 145.45 kg
    • Mounting Location : front
    • Mounting Mode : rack-mounted
    • Number Of Rack Unit : 7U
    • Color : Black
    • Width : 48.3 cm
    • Depth : 63.5 cm
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1612029_EN
    • Packaging Without Single Use Plastic : No
    • Optimized Energy Efficiency : Energy efficient product
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Removable Battery : User replaceable
    • Circularity Profile : ENVEOLI1612029_EN
    • Take-Back : Yes
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 1225.62
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 5482.7913330596
    • Carbon Footprint Of The Distribution Phase [A4] : 0.1 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase [A5] : 65 kg CO2 eq.
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 6 789 kg CO2 eq.
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 15.2020668106
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 6788.5564494089
  • Input
    • Main Input Voltage : 208 V
    • Input Frequency : 50/60 Hz +/- 5 Hz auto-sensing
    • Efficiency At Full Load : 151...268 V adjustable || 157...255 V
  • Output
    • Rated Power In Va : 5000 VA
    • Harmonic Distortion : less than 5 % at full load
    • Kw Rating : 4000 W
    • Efficiency At Full Load : 95 % full load)
  • Batteries & Runtime
    • Battery Type : Lead-Acid battery
  • Environmental
    • Storage Relative Humidity : 0-95 %
    • Ambient Air Temperature For Operation : 0-40 °C
    • Storage Altitude : 0-50000 ft
    • Ambient Air Temperature For Storage : -15-45 °C
    • Online Thermal Dissipation : 1708 Btu/h
    • Relative Humidity : 0-95 %
    • Acoustic Level : 53 dBA
    • Operating Altitude : 0...10000 ft
  • Overview
    • Lead Time : Usually Ships within 3 Weeks
  • General
    • Provided Equipment : User Manual || Smart UPS signalling RS-232 cable || Rack Mounting support rails || CD with software
  • Specifications
    • Country of Origin : India
    • Length : 8 ft
    • Width : 48.3 cm
    • Height : 31.1 cm
    • Weight : 145.45 kg
    • Product Or Component Type : uninterruptible power supply (UPS)
