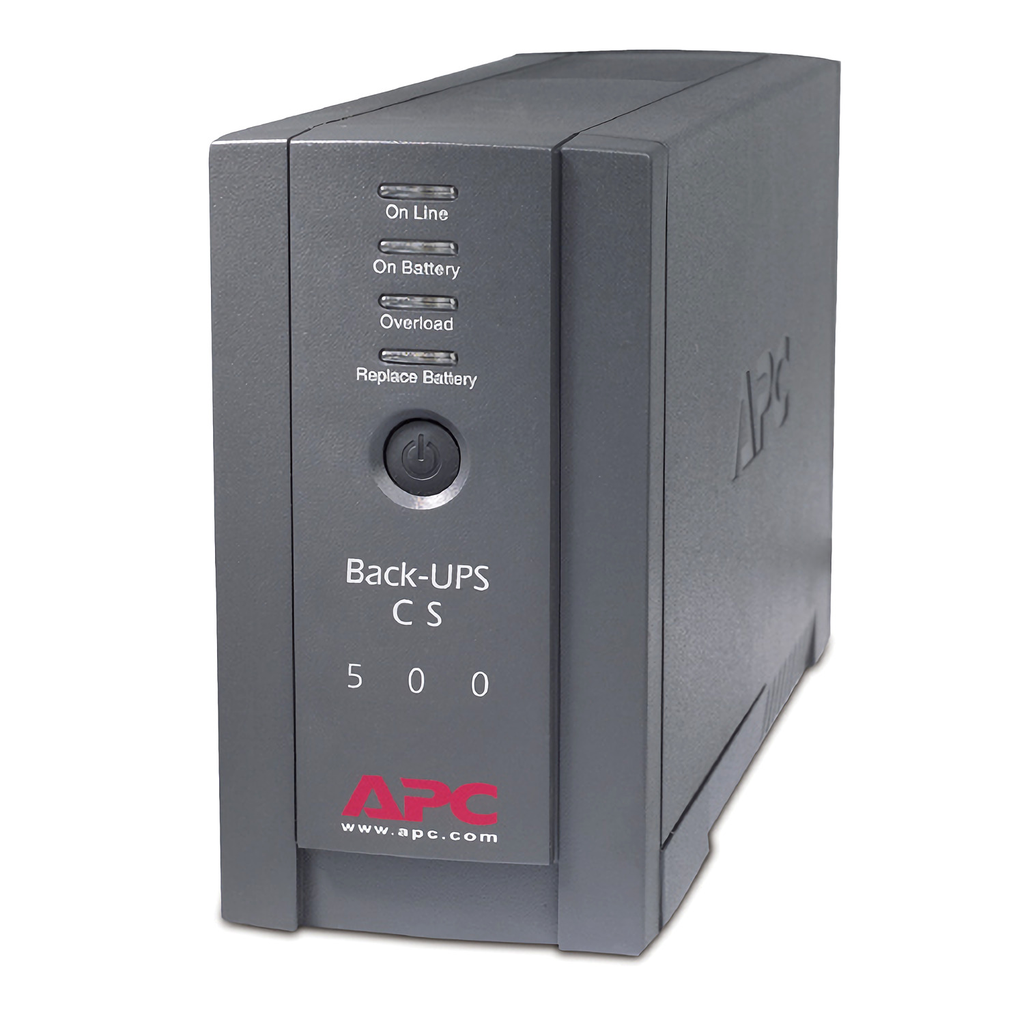

This APC Back-UPS offers power and surge protection for wireless networks, computers, gaming consoles and other electronics in your home or business. The 500VA tower UPS has 6 total outlets, 3 of which are battery backup, and 3 that are surge protection only. The UPS has a surge energy rating of 480 Joules. It provides data line protection with a RJ45 analog phone line for phone, fax, modem or DSL. This UPS has a 2-year warranty.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Communications & Management Attributes
• Control Panel : LED status display with on line : on battery : replace battery and overload indicators, LED Status display with On Line : On Battery
• Alarm : alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
• Physical Attributes
• Cable Length : 6 ft
• Color : Black
• Complementary Attributes
• Curve Load Maximum : 100 %
• Curve Load Minimum : 1 %
• Maximum Configurable Power In Va : 500 VA
• Rated Power In Va : 500 VA
• Rated Power In W : 300 W
• Important Information Attributes
• Persona Type Ids : EUA, OM, SC, VR
• Persona Type Names : Consumer, Original Equipment Manufacturer, Electrician, IT Channel Partner
• Market Segmentation Id : RESIDENTIAL, COMMERCIAL, INDUSTRIAL
• Market Segmentation : Residential, Commercial, Industrial
• Mounting Mode : tower, not rack-mountable
• Output Connection Type : 3 NEMA5-15R, 3 NEMA5-15Rsurge
• Provided Equipment : CD with software, Cord management straps, User Manual, USB cable
• Certificate Agency : cUL Listed, California (CEC) Battery Charger, ENERGY STAR V2.0 (USA), Industry Canada
• Carbon Footprint Of The Distribution Phase [A4] : 0.7177454545454545, 0.7 kg CO2 eq.
• Carbon Footprint Of The End-of-life Phase [C1 To C4] : 0.6 kg CO2 eq., 0.6330818181818182
• Carbon Footprint Of The Installation Phase [A5] : 0, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 67 kg CO2 eq., 66.59363636363636
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 179 kg CO2 eq., 179.43636363636364
• Warranty (In Months) : 36 UPS, 12 Battery
• Local Data Status : Publishable
• Local Publishable Date : 2026-06-26
• Pre Comm Date : 2000-12-05
• Return Indicator : Y
• Stocking Flag : Y
• Device Type : UPS - Computer and Peripheral
• Serviceability : No
• Traceability : Yes
• Field Service Division : SPIBS
• Average Life Duration : 5 year(s)
• Cr Shelf Life : 12
• Service Catalog Item : Finished good
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : Outside of Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1712010_EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1915
• Rohs Eur Full Compliance Status : Compliant By Exemption
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Dangerous Goods Code : BATTERIES WET NON SPILLABLE (ELECTRIC STORAGE or LEAD ACID)
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Acoustic Level : 45 dBA
• Curve Equation : efficiency
• Curve Fixed Loss : 0.0063
• Curve Load Maximum : 100 %
• Curve Load Minimum : 1 %
• Curve Square Loss : 0.0026
• Curve Test Cond Id : Curve fit of data measured in accordance with the US DOE Test Procedure for Uninterruptible Power Supplies. All measurements taken in normal mode(s), at typical environmental conditions, with 120V/60Hz electrical input and balanced resistive load (PF = 1.0) output.
• Efficiency At Full Load : 98...140 V
• Energy Efficiency Optimized : Energy efficient product
• Filtering : Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : mee
• Graph Display : 1
• Input Connection Type : NEMA 5-15P
• Maximum Configurable Power In Va : 500 VA
• Mounting Location : front
• Mounting Preference : no preference
• Number Of Cables : 1
• Number Of Tare Power : 7 W
• Performance Multiplier : 1
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : uninterruptible power supply (UPS)
• Range Of Product : Back-UPS
• Rbc Quantity : 1
• Redundant : No
• Returnability : Yes
• Show Note Op Temperature : No
• Size Ups Version : Workstation
• Software Version : v6.2.5-6
• Surge Energy Rating : 480 J
• Sustainable Packaging : No
• Topology : Standby
• Total Lifecycle Carbon Footprint : 248 kg CO2 eq.
• Transfer Time : 8ms typical : 12ms maximum
• Typical Recharge Time : 8 h
• Ups Connectivity : USB port
• Ups Size : WS
• Usb Compatible : Yes
• Value Multiplier : 1
• Waveform Type : Stepped approximation to a sinewave
• Type Of Usb Power Supply : none
• Max Configurable Power In W : 300 W
• Input Voltage 11 Input Voltage : 120 V
• Pep Code : ENVPEP1712010EN
• Database Version : 2025-30
• Pep Verification Date : 2025-10-25
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0010-ed1.1-EN-2015 10 16
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional-unit Description : The functional unit is the transmission of electricity between electrical/electronic equipment and a power source for a distance of 2.5m for up to 10A of current at 230V AC
• Functional-unit Quantity : 1
• Functional-unit Unit : unit
• Reference Lifetime, In Y : 20
• Energy Model - Manufacturing [A1-a3] : Electricity Mix; High voltage; 2020; Asia Pacific, APAC
• Energy Model - Installation [A5] : No energy used
• Energy Model - Use [B6] : Electricity Mix; Low voltage; 2020; Europe, EU-27
• Energy Model - End Of Life [C1-c4] : Global, European and French datasets are used.
• Recyclability Potential, In % : 62
• Height Nominal : 165 mm
• Scc14 : 10731304021367
• Width Nominal : 91 mm
• Battery Charge Power (Watts) : 13 W rated
• Output Frequency (Sync To Mains) : 50/60 Hz +/- 3 Hz sync to mains
• Curve X-axis Maximum : 100 %
• Curve X-axis Minimum : 0 %
• Curve X-axis Title : load
• Curve X-axis Units : percentage
• Curve Y-axis Maximum : 100 %
• Curve Y-axis Minimum : 50 %
• Curve Y-axis Title : efficiency
• Curve Y-axis Units : percentage
• Max Configurable Power (Watts) : 300 W
• Energy Star® : ENERGY STAR UPS V2.0 (USA)
• Nbr. Of Units In Pkg. : 1
• Package Weight(Lbs) : 6.95 kg
• Take-back : Yes
• Customs Code : 8504407012
• Environment Attributes Main
• Ambient Air Temperature For Storage : -15-45 °C, -15-45 °C
• Take Back : Yes
• Energy Star : ENERGY STAR UPS V2.0 (USA)
• Recycled Metal Content At Cr Level : 0 %
• Mercury Free : Yes
• Optimized Energy Efficiency : Energy efficient product
• Carbon Footprint : 247.6727272727273
• Ambient Air Temperature For Operation : 0-40 °C
• Circularity Profile : ENVEOLI1712010_EN
• Environmental Disclosure : ENVPEP1712010EN
• Eu Rohs Directive : Compliant By Exemption
• Online Thermal Dissipation : 24 Btu/h
• Operating Altitude : 0...10000 ft
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 0-95 %
• Storage Altitude : 0-50000 ft
• Storage Relative Humidity : 0-95 %
• Pep Code : ENVPEP1712010EN
• Pep Verification Date : 2025-10-25
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0010-ed1.1-EN-2015 10 16
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Provided Equipment : CD with software, Cord management straps, User Manual, USB cable
• Product Or Component Type : uninterruptible power supply (UPS)
• Range Of Product : Back-UPS
• ETIM
• ETIM 8 : EC000382
• ETIM 9 : EC000382
• Output Attributes
• Output Voltage : 120 V AC 1 phase
• Surge Protection And Filtering Attributes
• Filtering : Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : mee
• Surge Energy Rating : 480 J
• Contractual Warranty Attributes
• Warranty Period : 3 years repair or replace
• Warranty : 3 years repair or replace
• Input Attributes
• Efficiency At Full Load : 98...140 V
• Input Frequency : 50/60 Hz +/- 3 Hz auto-sensing
• Main Input Voltage : 120 V AC 1 phase
• Specifications
• Country of Origin : India, United States
• Depth : 284 mm
• Batteries & Runtime Attributes
• Removable Battery : USER_REPLACEABLE, User replaceable
• Battery Curve : B
• Battery Graph Comments : This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several variables including battery age, battery charge level, environmental conditions and characteristics of the connected load.
• Battery Life : 4-6 year(s)
• Battery Power In Vah : 78 VAh runtime
• Battery Size : lead-acid internal included
• Battery Slots Empty : 0
• Battery Type : Lead-Acid battery
• Included Battery Modules : 0
