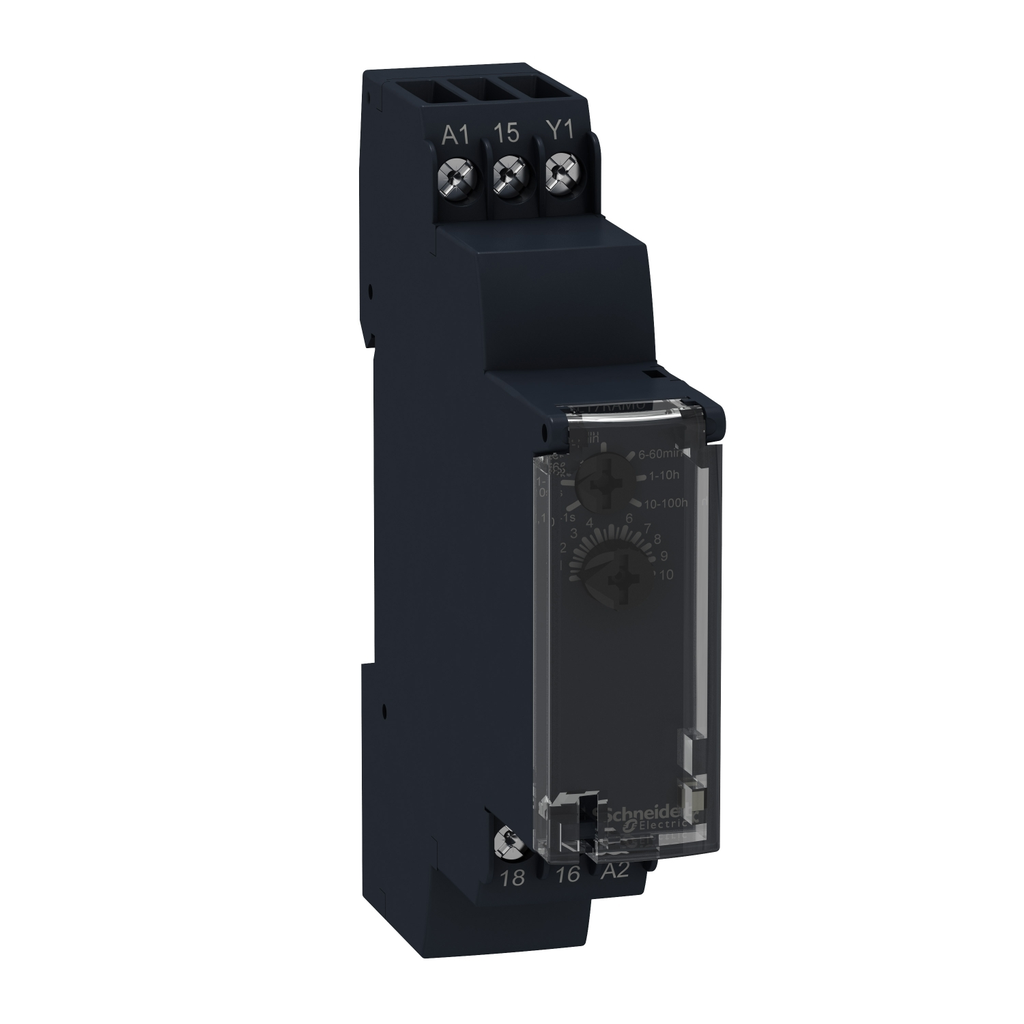

dual function relay, Harmony Timer Relays, 8A, 1CO, 1s..100h, on delay, 24V DC or 24...240V AC DC

ON-DELAY TIMER W/CONTROL SIGNA

SQDRE17RAMU RE17RAMU 3606480552670
74.85 / EA
http://schema.org/OutOfStock
Mayer-DDS-dual function relay, Harmony Timer Relays, 8A, 1CO, 1s..100h, on delay, 24V DC or 24...240V AC DC-1
  • Country of Origin: China
This Harmony RE17R timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 8A, is 17.5mm wide and can be supplied with 24 V DC, 24 to 240 V AC. It also has 1 changeover contact SPDT (single pole double throw). It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. This timer offers pause and summation control signals. Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0
QTY
  • Product Description
  • Features
  • Specifications
This Harmony RE17R timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 8A, is 17.5mm wide and can be supplied with 24 V DC, 24 to 240 V AC. It also has 1 changeover contact SPDT (single pole double throw). It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. This timer offers pause and summation control signals. Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0
  • Insulation Resistance
    • 100 MOhm 500 V DC IEC 60664-1
  • Control Type
    • selector switch front panel
  • US Rated Supply Voltage
    • 24...240 V AC 50/60 Hz
    • 24 V DC
  • Connections Terminals
    • screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end
    • screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end
    • screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
    • screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
  • Mounting Support
    • 35 mm DIN rail conforming to IEC 60715
  • IP Degree Of Protection
    • IP20 IEC 60529 terminal block)
    • IP40 IEC 60529 housing)
    • IP50 IEC 60529 front panel)
  • Function Available
    • A- Power on-delay relay-1 C/O
    • At- Power on-delay relay w/ pause/summation (Y1)-1 C/O
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0 kg CO2 eq.
    • 0.0005583301512003458
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.1751479806231869
    • 0.2 kg CO2 eq.
  • Maximum Switching Voltage
    • 250 V AC
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 2 kg CO2 eq.
    • 1.519944854210636
  • Maximum Switching Current
    • 8 A AC/DC
  • Electrical Durability
    • 100000 cycles resistive 8 A 250 V AC
  • Mounting Position
    • any position in relation to normal vertical mounting plane
  • Time Delay Type
    • power on-delay - A- Power on-delay relay
    • power on-delay - At- Power on-delay relay w/ pause/summation (Y1)
  • Impulse Duration
    • 100 ms with load in parallel typical
    • 30 ms typical
  • Reset Time
    • 120 ms on de-energisation typical
  • Vibration Resistance
    • 20 m/s² (f= 10-150 Hz) conforming to IEC 60068-2-6
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Charge Point Operator
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • Electrician
    • System Integrator
    • IT Channel Partner
  • Power Consumption In VA
    • 0-32 VA 240 V AC
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 13 kg CO2 eq.
    • 12.73720034888232
  • Electromagnetic Compatibility
    • electrostatic discharge immunity test 6 kV in contact) level 3 IEC 61000-4-2
    • electrostatic discharge immunity test 8 kV in air) level 3 IEC 61000-4-2
    • susceptibility to electromagnetic fields 10 V/m 80 MHz to 1 GHz) level 3 IEC 61000-4-3
    • electrical fast transient/burst immunity test 1 kV capacitive connecting clip) level 3 IEC 61000-4-4
    • electrical fast transient/burst immunity test 2 kV direct) level 3 IEC 61000-4-4
    • 1.2/50 µs shock waves immunity test 1 kV differential mode) level 3 IEC 61000-4-5
    • 1.2/50 µs shock waves immunity test 2 kV common mode) level 3 IEC 61000-4-5
    • conducted RF disturbances 10 V 0.15...80 MHz) level 3 IEC 61000-4-6
    • voltage dips and interruptions immunity test 0 % 1 cycle) IEC 61000-4-11
    • voltage dips and interruptions immunity test 70 % 25/30 cycles) IEC 61000-4-11
    • conducted and radiated emissionsclass B EN 55022
  • Supply Frequency
    • 50...60 Hz +/- 5 %
  • Relative Humidity
    • 93-93 % without condensation IEC 60068-2-30
  • Persona Type Ids
    • BM9
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SC
    • SI
    • VR
  • Dielectric Strength
    • 2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1
  • Setting Accuracy Of Time Delay
    • +/- 10 % of full scale 25 °C IEC 61812-1
  • Creepage Distance
    • 4 kV/3 IEC 60664-1
  • Carbon Footprint Of The Distribution Phase A4
    • 0.05861637562945304
    • 0.1 kg CO2 eq.
  • Tightening Torque
    • 0.6-1 N.m IEC 60947-1
  • Minimum Switching Current
    • 10 mA 5 V DC
  • Repeat Accuracy
    • +/- 0.5 % IEC 61812-1
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Shock Resistance
    • 15 gn 11 ms IEC 60068-2-27
  • Maximum Power Consumption In W
    • 0.6 W 24 V DC
  • Local Signalling
    • LED indicator on steady: relay energised, no timing in progress
    • LED indicator 80 % ON and 20 % OFF flashing: timing in progress
    • LED indicator 5 % ON and 95 % OFF pulsing: relay de-energised, no timing in progress (except function Di-D, Li-L)
  • UIMP Rated Impulse Withstand Voltage
    • 5 kV 1.2/50 µs
  • Assets
    • CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0001737_3D-CAD
  • Complementary Attributes
    • Maximum Delay Response : 100 ms
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-06
    • HTML Description : Zelio TimeOn-Delay RelayNominal Output Current: 8AContacts Type and Composition: 1 C/ORated Supply Voltage: 12-240V AC/DC 50/60Hz, 24V DCTime Delay Range: 1s-100hConnections-Terminals: Screw terminalsDegree of Protection: IP20 (terminal block), IP40 (housing), IP50 (front panel) conforming to IEC 60529
    • Manufacturer : Schneider Electric
    • Manufacturing Carbon Footprint : 1.519944854210636
    • Distribution Carbon Footprint : 0.05861637562945304
    • Installation Carbon Footprint : 0.0005583301512003458
    • Use Carbon Footprint : 12.73720034888232
    • End Of Life Carbon Footprint : 0.1751479806231869
    • Legacy WEEE Scope : Out
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI121113EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1243
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Compatibility Code : RE17
    • Device Short Name : RE17R
    • Functionality : on-delay timing
    • Housing Material : self-extinguishing
    • Number Of Functions : 2
    • On Load Factor : 100 %
    • Package Weight Lbs : 81.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : modular timing relay
    • Range Of Product : Harmony Timer Relays
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 14 kg CO2 eq.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 14.491467889496796
    • Relationship Type : cross-selling relationship
    • Pep Code : ENVPEP121117EN
    • Pep Verification Date : 2025-10-30
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
    • Product Weight In G : 83
    • Functional Unit Description : Harmony RE17 timing relay can be set between 0.1 seconds and 100 hours which has an output rating of 8A with 7.5mm wide and can be supplied with 24 V DC, 24 to 240 V AC. It also has 1 change over contact SPDT (single pole double throw). It has one of market slimmest form-factors which allowing for a flexible and easy installation on DIN rail using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers and product is adhering to international standards.
    • Functional Unit Quantity : 1
    • Functional Unit Unit : unit
    • Reference Lifetime In Y : 10
    • Energy Consumption On Product Lifetime In Kwh : 26.280000000000005
    • Recyclability Potential In : 13
    • Packaging Weight In G : 14.8
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
    • Energy Model Manufacturing A1 A3 : Electricity Mix; High voltage; 2020; Indonesia, ID
    • Energy Model Installation A5 : No energy used
    • Energy Model Use B6 : Electricity Mix; Low voltage; 2020; Global, GLO
    • Energy Model End Of Life C1 C4 : Global, European and French datasets are used.
    • Acidification Ap Mole Of H Equiv Total Life Cycle : 0.07461245098200434
    • Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.008801570591568091
    • Acidification Ap Mole Of H Equiv Distribution A4 : 0.0002506054629647497
    • Acidification Ap Mole Of H Equiv Installation A5 : 0.00000771302125990128
    • Acidification Ap Mole Of H Equiv Maintenance B2 : 0
    • Acidification Ap Mole Of H Equiv Repair B3 : 0
    • Acidification Ap Mole Of H Equiv Replacement B4 : 0
    • Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0.0653699899393462
    • Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.0001825719668653873
    • Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.0004874299276288146
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
    • Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
    • Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
    • Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
    • Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.11540870542912109
    • Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : -0.01921436743825442
    • Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
    • Climate Change Biogenics Kg Co2 Eq Installation A5 : -0.0000003248854950725
    • Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
    • Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
    • Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0.1345715045866264
    • Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.00005189316624418045
    • Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.0004497797952834318
    • Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 14.376031160938167
    • Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 1.53913120323012
    • Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.05861637562945304
    • Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.0005586550366954182
    • Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 12.60262884429569
    • Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 0.1750960827462076
    • Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.03183768732697635
    • Climate Change Total Kg Co2 Eq Total Life Cycle : 14.491467889496796
    • Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 1.519944854210636
    • Climate Change Total Kg Co2 Eq Distribution A4 : 0.05861637562945304
    • Climate Change Total Kg Co2 Eq Installation A5 : 0.0005583301512003458
    • Climate Change Total Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Total Kg Co2 Eq Repair B3 : 0
    • Climate Change Total Kg Co2 Eq Replacement B4 : 0
    • Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 12.73720034888232
    • Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 0.1751479806231869
    • Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.03228746712225978
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Maintenance B2 : 0
    • Components For Re Use Kg Repair B3 : 0
    • Components For Re Use Kg Replacement B4 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.00040800069353606446
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0004053032644485115
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.00000000000503794449
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.00000000002491992605
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.000002696517528507
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.00000000088160117541
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.00001209868589675347
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 291.30908174740296
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 21.55432215994932
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.7292548629836111
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.006562820669832221
    • Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 268.6055356677512
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 0.4134062360489318
    • Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -0.7270016483398717
    • Ecotoxicity Fresh Water Ctue Total Life Cycle : 254.01113930555601
    • Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 232.6744146237279
    • Ecotoxicity Fresh Water Ctue Distribution A4 : 0.4768510796040335
    • Ecotoxicity Fresh Water Ctue Installation A5 : 0.0531818934595881
    • Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
    • Ecotoxicity Fresh Water Ctue Repair B3 : 0
    • Ecotoxicity Fresh Water Ctue Replacement B4 : 0
    • Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 18.97818295980887
    • Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 1.828508748955606
    • Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -0.1559860460424714
    • Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.00000052614257796048
    • Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.00000006976611430595
    • Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.00000000068332916767
    • Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.00000000003126445759
    • Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
    • Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
    • Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
    • Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0.00000045438647534069
    • Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.00000000127539468858
    • Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.00000001735099529843
    • Exported Energy Mj By Energy Vector Total Life Cycle : 0.00009926469337988434
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.00000731389742394328
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0
    • Exported Energy Mj By Energy Vector Maintenance B2 : 0
    • Exported Energy Mj By Energy Vector Repair B3 : 0
    • Exported Energy Mj By Energy Vector Replacement B4 : 0
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0.00009195079595594106
    • Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
    • Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.00003377945310429191
    • Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.00001360087413335278
    • Freshwater Eutrophication Kg P Eq Distribution A4 : 0.0000000068628667395
    • Freshwater Eutrophication Kg P Eq Installation A5 : 0.00000000283682183348
    • Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
    • Freshwater Eutrophication Kg P Eq Repair B3 : 0
    • Freshwater Eutrophication Kg P Eq Replacement B4 : 0
    • Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.00001965704585456313
    • Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.00000051183342780303
    • Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.00000004808455913723
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 3.026980037013135
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 3.005937764681581
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0.0000485583887383201
    • Hazardous Waste Disposed Of Kg Installation A5 : 0.00000341653718100326
    • Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.02099029740563438
    • Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.9499386092679271
    • Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.00000015806335025079
    • Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000013999221091939
    • Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0.0000000000010614961
    • Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.00000000011839825103
    • Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000000153876679397
    • Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000001641291279029
    • Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000010159309487731
    • Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.00000007957672410143
    • Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000003528790886704
    • Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0.00000000009604060296
    • Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.00000000003325189138
    • Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000004200104210746
    • Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000000215848063259
    • Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000000578860093204
    • Impacts Related To Land Use Soil Quality Total Life Cycle : 0.5642598369701854
    • Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.3302995473027428
    • Impacts Related To Land Use Soil Quality Distribution A4 : 0
    • Impacts Related To Land Use Soil Quality Installation A5 : 0
    • Impacts Related To Land Use Soil Quality Maintenance B2 : 0
    • Impacts Related To Land Use Soil Quality Repair B3 : 0
    • Impacts Related To Land Use Soil Quality Replacement B4 : 0
    • Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0.2337699557784892
    • Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0.0001903338889535562
    • Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 11.425316193192918
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 0.66980313488116
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.0001299439229992832
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.00000438752297108028
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 10.75233023016882
    • Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.003048496696967947
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -0.01091891847711035
    • Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.009192352771710186
    • Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.001186344747169077
    • Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.0001148051214449881
    • Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.00000364575645923974
    • Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.007824304250303437
    • Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.0000632528963334455
    • Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.0000208714189780519
    • Materials For Energy Recovery Kg Total Life Cycle : 0
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Maintenance B2 : 0
    • Materials For Energy Recovery Kg Repair B3 : 0
    • Materials For Energy Recovery Kg Replacement B4 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0
    • Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
    • Materials For Recycling Kg Total Life Cycle : 0.021079363710885278
    • Materials For Recycling Kg Manufacturing A1 A3 : 0.01178367171088528
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 0
    • Materials For Recycling Kg Maintenance B2 : 0
    • Materials For Recycling Kg Repair B3 : 0
    • Materials For Recycling Kg Replacement B4 : 0
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 0.009295692
    • Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
    • Net Use Of Fresh Water M3 Total Life Cycle : 0.03373268662194931
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.0152312599291637
    • Net Use Of Fresh Water M3 Distribution A4 : 0.00006923182191417295
    • Net Use Of Fresh Water M3 Installation A5 : 0.00003157552436457966
    • Net Use Of Fresh Water M3 Maintenance B2 : 0
    • Net Use Of Fresh Water M3 Repair B3 : 0
    • Net Use Of Fresh Water M3 Replacement B4 : 0
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.01812910351430962
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0002715158321972346
    • Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.0006464244375325905
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 2.6753845032004997
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.5975097277450512
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.00005965338277110284
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 0.01482794764774974
    • Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Non Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 2.012997089901835
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.04999008452309259
    • Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.02339288439348554
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.00000038524297478527
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.00000027936090103595
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.0000000517205853693
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.00000000002276930802
    • Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.00000005352957846458
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.00000000060914060743
    • Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.00000000539808069882
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.030289969133416004
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.004089956009714295
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.000410231936445994
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.00000891170346151976
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.02560921302443332
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.0001716564593608781
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.0001017073402700992
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 0.0007261326623227346
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0003115563942081711
    • Radioactive Waste Disposed Of Kg Distribution A4 : 0.00001165267051038535
    • Radioactive Waste Disposed Of Kg Installation A5 : 0.00000001201640749808
    • Radioactive Waste Disposed Of Kg Maintenance B2 : 0
    • Radioactive Waste Disposed Of Kg Repair B3 : 0
    • Radioactive Waste Disposed Of Kg Replacement B4 : 0
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.0004007912944718608
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.00000212028672481937
    • Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.00001072732168897126
    • Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.11612581830151944
    • Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.01313442441839219
    • Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.001244510567535749
    • Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.00003712144365568115
    • Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0.101017585828567
    • Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.000692176043368825
    • Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.0002440977718706199
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1.579718240642931
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.579718240642931
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 336.7030070983583
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 23.2923537660729
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.7292596307296481
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.00656758861706219
    • Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 312.2485471225982
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 0.4262789903404626
    • Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -0.7405026597013128
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 45.39392535095532
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.738031606123577
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00000476774603704145
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.00000476794722996848
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 43.64301145484695
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.01287275429153085
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.01350101136144113
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1.579718240642931
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.579718240642931
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 289.72936350676
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 19.97460391930639
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.7292548629836111
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.006562820669832221
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 268.6055356677512
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.4134062360489318
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.7270016483398717
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.1489679
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.1489679
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 45.24495745095532
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.589063706123577
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00000476774603704145
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.00000476794722996848
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 43.64301145484695
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.01287275429153085
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.01350101136144113
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 0.00761772
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.00761772
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Maintenance B2 : 0
    • Use Of Secondary Materials Kg Repair B3 : 0
    • Use Of Secondary Materials Kg Replacement B4 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
    • Water Use M3 Eq Total Life Cycle : 1.4503434971684859
    • Water Use M3 Eq Manufacturing A1 A3 : 0.6580164099603397
    • Water Use M3 Eq Distribution A4 : 0.002973506751213728
    • Water Use M3 Eq Installation A5 : 0.001356168771458696
    • Water Use M3 Eq Maintenance B2 : 0
    • Water Use M3 Eq Repair B3 : 0
    • Water Use M3 Eq Replacement B4 : 0
    • Water Use M3 Eq Operational Energy Use B6 : 0.7769888466158728
    • Water Use M3 Eq End Of Life C1 C4 : 0.01100856506960104
    • Water Use M3 Eq Benefits Loads Beyond System Boundaries D : -0.02776282199048113
    • Air Pollution M3 Total Life Cycle : 0
    • Air Pollution M3 Manufacturing A1 A3 : 0
    • Air Pollution M3 Distribution A4 : 0
    • Air Pollution M3 Installation A5 : 0
    • Air Pollution M3 Maintenance B2 : 0
    • Air Pollution M3 Repair B3 : 0
    • Air Pollution M3 Replacement B4 : 0
    • Air Pollution M3 Operational Energy Use B6 : 0
    • Air Pollution M3 End Of Life C1 C4 : 0
    • Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
    • Water Pollution M3 Total Life Cycle : 0
    • Water Pollution M3 Manufacturing A1 A3 : 0
    • Water Pollution M3 Distribution A4 : 0
    • Water Pollution M3 Installation A5 : 0
    • Water Pollution M3 Maintenance B2 : 0
    • Water Pollution M3 Repair B3 : 0
    • Water Pollution M3 Replacement B4 : 0
    • Water Pollution M3 Operational Energy Use B6 : 0
    • Water Pollution M3 End Of Life C1 C4 : 0
    • Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
  • General Attributes
    • Product Or Component Type : modular timing relay
    • Range Of Product : Harmony Timer Relays
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=180422194&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 14.491467889496796
    • Circularity Profile : ENVEOLI121113EN
    • Environmental Disclosure : ENVPEP121117EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP121117EN
    • Pep Verification Date : 2025-10-30
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • Specifications
    • Country of Origin : China
