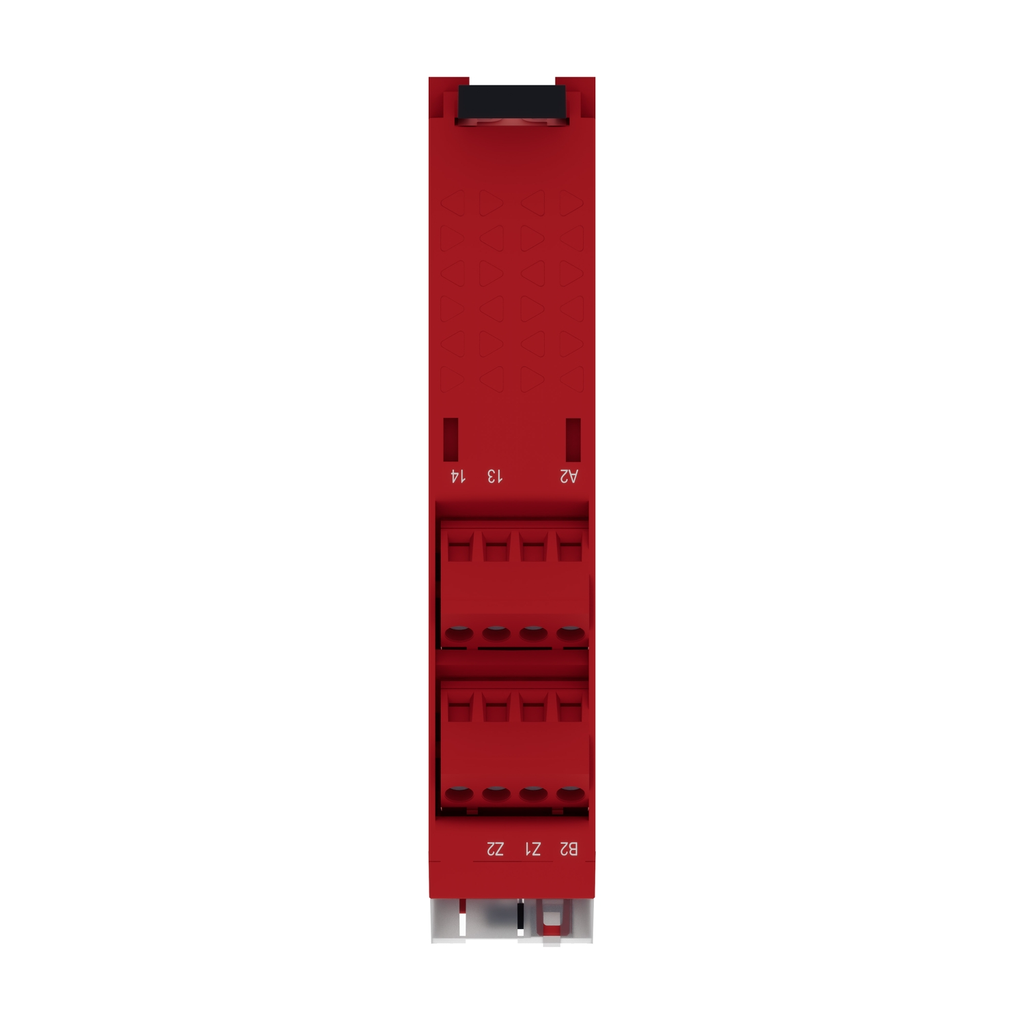

This safety relay is designed for zero speed monitoring with delayed access to dangerous area. The safety relay is powered with 48 to 240V AC/DC, and equipped with a screw removable terminal block. This universal safety module embeds pre-defined safety functions, or selectable safety functions via rotary selectors. This safety relay embeds 3 safety inputs, 1 NO output configurable between 0,5s and 60s, and 2solid state diagnostic outputq with complete status information. The maximum safety level achieved by this safety relay is PLe/Category 3 conforming to ISO 13849-1, SILCL 3 conforming to IEC 62061 and SIL 3 conforming to IEC 61508. This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relays is suitable for applications such as Food and Beverage, Hoisting, Material Handling, Material Working, Packaging. This safe relay conforms to IEC 60947-5-1, IEC 61508-1, IEC 61508-2/-3, ISO 13849-1, IEC 62061 functional safety standards, is certified by cULus, TÜV. Harmony safety relays are compatible with Modicon logic controllers. This relay is mounted on a 35mm symmetrical DIN rail. Harmony XPS Basic and Universal safety relays are the first choice for managing single safety functions easily, typically in machines of simple to medium complexity. Harmony XPS Universal is the first choice for a broad range of simple to mid-complex machines.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Specifications
• Country of Origin : Indonesia
• Width : 22.5 mm
• Height : 100 mm
• Weight : 0.2 kg
• Product Certifications : TÜV || cULus
• [Us] Rated Supply Voltage : 48...240 V AC/DC - 10...10 %
• Range Of Product : Harmony Safety Automation
• Product Or Component Type : safety module
• Safety Module Name : XPSUVN
• Number Of Additional Circuits : 2 solid state outputs
• Output Type : relay, 1 NO, volt-free
• Safety Module Application : for zero speed detection
• Safety Reliability Data : MTTFd > 30 years ISO 13849-1 || Dcavg = 98.9 % ISO 13849-1 || PFHd = 2.44E-9 1/h ISO 13849-1 || HFT = 1 IEC 62061 || PFHd = 2.44E-9 1/h IEC 62061 || SFF > 99% IEC 62061 || HFT = 1 IEC 61508-1 || PFHd = 2.44E-9 1/h IEC 61508-1 || SFF > 99% IEC 61508-1 || type = B IEC 61508-1
• Function Of Module : monitoring 3-phase motor || monitoring 3-phase motor with star-delta starting || monitoring 3-phase motor with variable number of poles || monitoring 3-phase motor with variable number of poles and star-delta starting || monitoring dc motor || monitoring servo motor || monitoring 3-phase motor supplied by variable speed drive || monitoring 3-phase motor supplied by servo drive || controlling enegization to open of guard switch type XCSE, XCSLE, XCSLF, XCST
• Safety Level : can reach PL e/category 3 for normally open relay contact ISO 13849-1 || can reach SILCL 3 for normally open relay contact IEC 62061 || can reach SIL 3 for normally open relay contact IEC 61508
• Complementary
• Height : 100 mm
• [Ith] Conventional Free Air Thermal Current : 6 A NO relay output circuit
• Mounting Support : 35 mm symmetrical DIN rail
• Power Consumption In W : 2.5 W
• Minimum Output Voltage : 5 V relay output
• Minimum Output Current : 10 mA relay output
• Time Delay : 0.5 s || 1 s || 2 s || 3 s || 5 s || 8 s || 12 s || 20 s || 35 s || 60 s
• Associated Fuse Rating : 6 A gG relay output IEC 60947-1
• Local Signalling : LED green power power ON || LED red error error || LED yellow state status || LED yellow L12 input line comparison || LED yellow L32 input line comparison
• [Uimp] Rated Impulse Withstand Voltage : 4 kV II IEC 60947-1
• Net Weight : 0.2 kg
• Standards : IEC 60947-5-1 || IEC 61508-1 functional safety standard || IEC 61508-2 functional safety standard || IEC 61508-3 functional safety standard || IEC 61508-4 functional safety standard || IEC 61508-5 functional safety standard || IEC 61508-6 functional safety standard || IEC 61508-7 functional safety standard || ISO 13849-1 functional safety standard || IEC 62061 functional safety standard
• [Ui] Rated Insulation Voltage : 690 V phase to phase 2)IEC 60947-1 || 400 V phase to earth 2)IEC 60947-1
• [Ie] Rated Operational Current : 5 A AC-1 for normally open relay contact || 3 A AC-15 for normally open relay contact || 5 A DC-1 for normally open relay contact || 3 A DC-13 for normally open relay contact
• Power Consumption In Va : 5.5 VA
• Input Voltage : 690 V
• Connections - Terminals : removable screw terminal block solid or flexible 0.2...2.5 mm² || removable screw terminal block flexible with ferrule 0.25...2.5 mm² single conductor || removable screw terminal block solid or flexible 0.2...1.5 mm² twin conductor || removable screw terminal block flexible with ferrule 2 x 0.25...1 mm² without cable end, with bezel || removable screw terminal block flexible with ferrule 2 x 0.5...1.5 mm² with cable end, with bezel
• Width : 22.5 mm
• Depth : 120 mm
• Input Detection Threshold : 50 mV || 65 mV || 85 mV || 110 mV || 140 mV || 180 mV || 230 mV || 300 mV || 400 mV || 500 mV
• Environmental data
• Packaging Made With Recycled Cardboard : Yes
• Environmental Disclosure : ENVPEP1811003EN
• Packaging Without Single Use Plastic : No
• Scip Number : 152cf799-1df7-4892-81b4-4c890187f1d1
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Minimum Percentage Of Recycled Plastic Content : 0
• Circularity Profile : ENVEOLI1811003EN
• Take-Back : No
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 86.269790632133
• Environment
• Ambient Air Temperature For Operation : -25-55 °C
• Ip Degree Of Protection : IP20 terminals)IEC 60529 || IP40 housing)IEC 60529 || IP54 mounting area)IEC 60529
• Ambient Air Temperature For Storage : -40-70 °C
• Relative Humidity : 5-95 % non-condensing
