plug-in relay, Harmony electromechanical relays, 15A, 1CO, lockable test button, 24V AC

PLUG-IN RELAY 250V 15A RPM +OP

SQDRPM11B7 RPM11B7 3389119401647
7.91 / EA
http://schema.org/OutOfStock

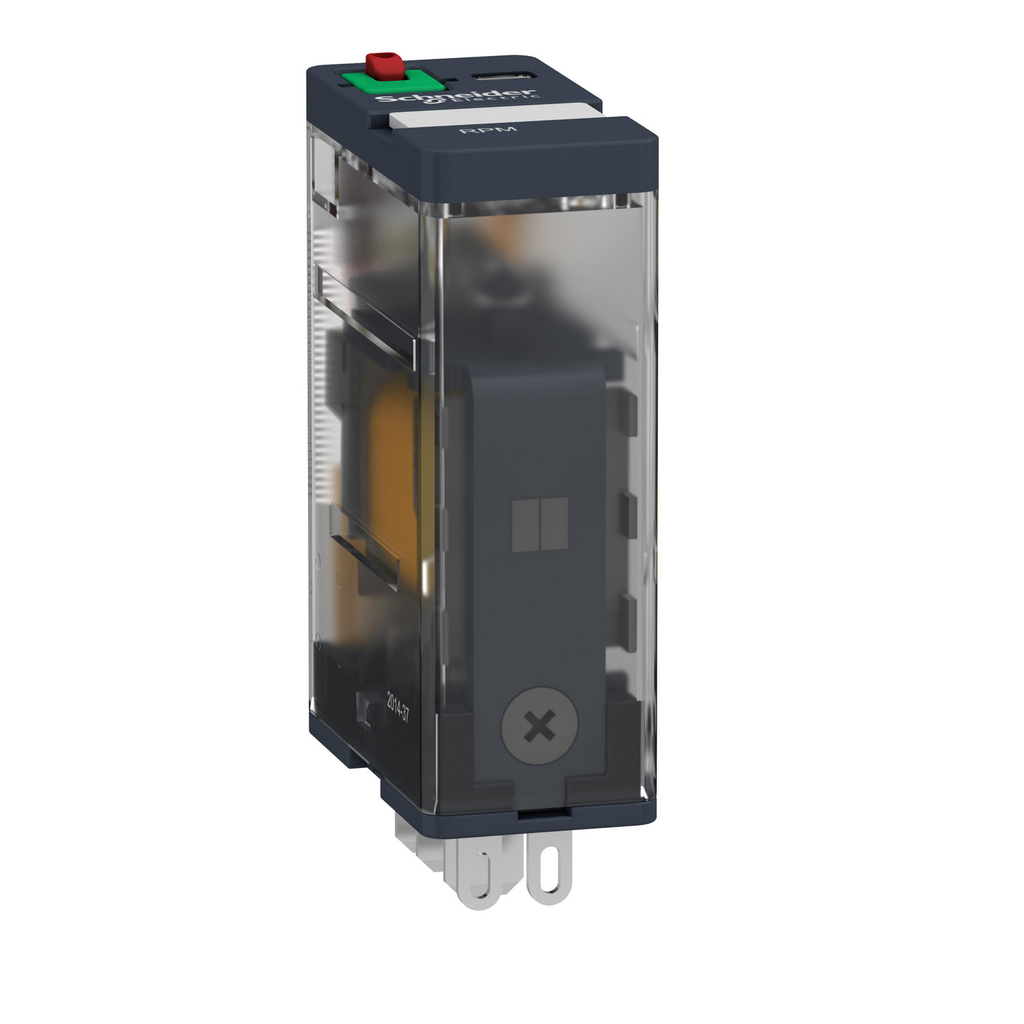

Mayer-DDS-plug-in relay, Harmony electromechanical relays, 15A, 1CO, lockable test button, 24V AC-2
  • Country of Origin: China
  • Dielectric Strength: 1500 V, 2000 V
  • Net Weight: 0.026 kg
  • Operating Position: Any Position
  • Warranty Length: 18 mth
  • Weight: 0.026 kg
This Harmony RPM power plug-in relay has a coil control voltage of 24V AC and has 1 changeover contact SPDT (single pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type enables easy installation and maintenance. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). 0 0 0 0 0 0 0 0 0 0 0 0 0 0
QTY
  • Product Description
  • Features
  • Specifications
This Harmony RPM power plug-in relay has a coil control voltage of 24V AC and has 1 changeover contact SPDT (single pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type enables easy installation and maintenance. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). 0 0 0 0 0 0 0 0 0 0 0 0 0 0
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : EAC || CSA || UL
    • Standards : UL 508 || IEC 61810-1 || CSA C22.2 No 14
    • Average Coil Consumption In Va : 1.6 60 Hz
    • Vibration Resistance : 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
    • Shock Resistance : 15 gnin operation || 30 gnnot operating
    • Pollution Degree : 3
    • Ambient Air Temperature For Storage : -40-85 °C
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Reach Free Of Svhc : Yes
    • Take-Back : No
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 0.2296505109
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 16 kg CO2 eq.
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 16.0559645597
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Environmental Disclosure : ENVPEP1406038EN
    • Packaging Without Single Use Plastic : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Carbon Footprint Of The Installation Phase [A5] : 0.0000781022
    • Circularity Profile : N/A
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 15.8199210606
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0 kg CO2 eq.
    • Carbon Footprint Of The Distribution Phase [A4] : 0 kg CO2 eq.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Operating Rate : <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
    • Protection Category : RT I
    • Test Levels : level A group mounting
    • Mounting Support : plug-in
    • Dielectric Strength : 1500 V AC between contacts with micro disconnection || 2000 V AC between coil and contact with reinforced
    • Net Weight : 0.026 kg
    • Maximum Switching Voltage : 250 V IEC
    • Rated Operational Voltage Limits : 19.2...26.4 V AC
    • [Ie] Rated Operational Current : 15 A 277 V AC) UL || 15 A 28 V DC) UL || 15 A 250 V AC) NO IEC || 15 A 28 V DC) NO IEC || 7.5 A 250 V AC) NC IEC || 7.5 A 28 V DC) NC IEC
    • [Ui] Rated Insulation Voltage : 250 V IEC || 300 V CSA || 300 V UL
    • Utilisation Coefficient : 20 %
    • Maximum Switching Capacity : 3750 VA || 420 W
    • Safety Reliability Data : B10d = 100000
    • Electrical Durability : 100000 cycles resistive
    • Contacts Material : AgNi
    • Shape Of Pin : flat (faston type)
    • Ip Degree Of Protection : IP40 conforming to IEC 60529
    • Control Type : lockable test button
    • Device Presentation : complete product
    • Mechanical Durability : 10000000 cycles
    • Operating Position : any position
    • Drop-Out Voltage Threshold : >= 0.15 Uc AC
    • [Uimp] Rated Impulse Withstand Voltage : 4 kV 1.2/50 µs
  • Specifications
    • Country of Origin : China
    • Weight : 0.026 kg
    • [Uc] Control Circuit Voltage : 24 V AC 50/60 Hz
    • Product Or Component Type : plug-in relay
    • Status Led : without
    • Reset Time : 20 ms at nominal voltage
    • Series Name : RPM series
    • Contacts Type And Composition : 1 C/O
    • Minimum Switching Capacity : 170 mW 10 mA, 17 V
    • [Ithe] Conventional Enclosed Thermal Current : 15 A -40-55 °C
    • Range Of Product : Harmony Electromechanical Relays
    • Ambient Air Temperature For Operation : -40-55 °C
    • Relay Type : power relay
