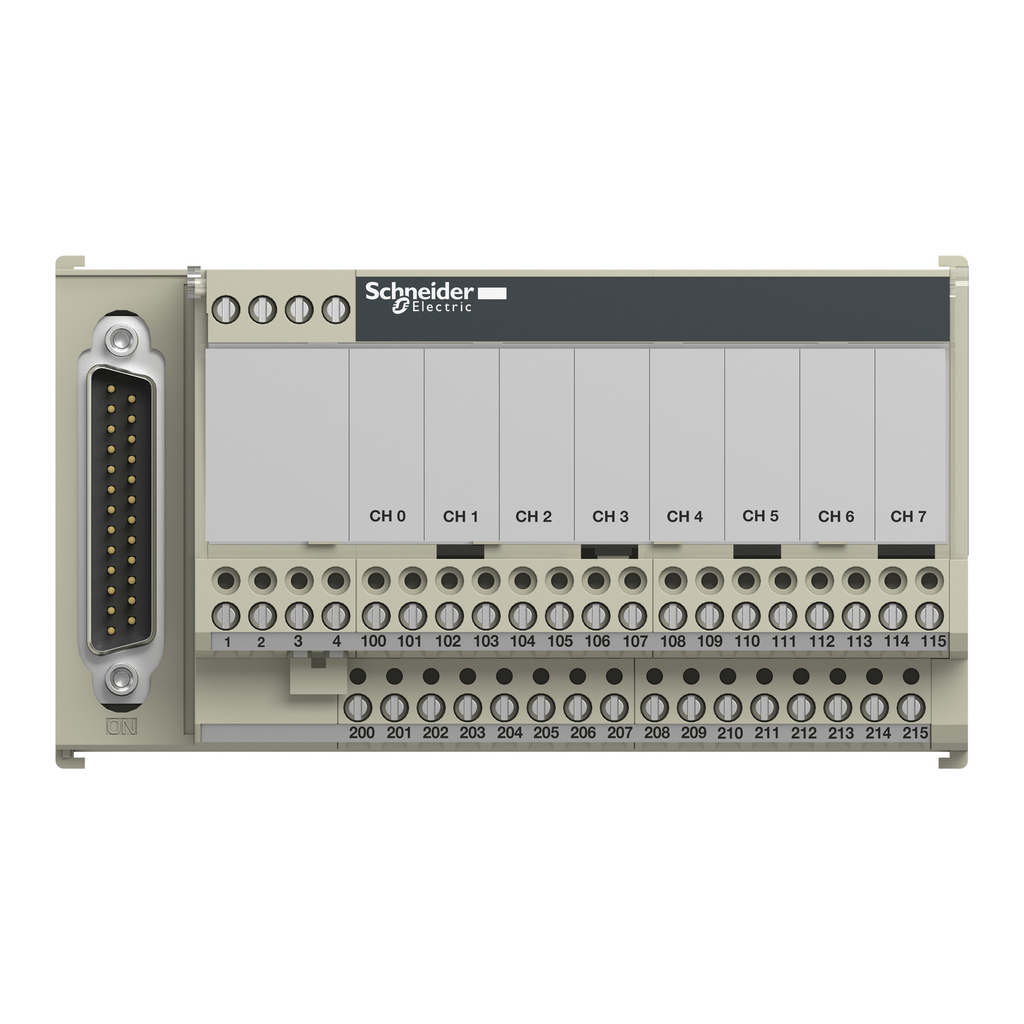

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This product consists in a connection sub-base for passive distribution of 8 channels. It is a sub base with a control circuit voltage of 24V

• Ambient Air Temperature For Storage
• -40-80 °C IEC 61131-2
• Connections Terminals
• screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end
• screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable
• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=ABE7CPA02_3D-simpl&p_File_name=ABE7CPA02_3D-Simplified.stp
• https://download.schneider-electric.com/files?p_Doc_Ref=ABE7CPA02_3D-simpl&p_File_name=ABE7CPA02_2D-bottom.dwg
• https://download.schneid
• IP Degree Of Protection
• IP20 conforming to IEC 60529
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Resistance To Radiated Fields
• 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
• Installation Category
• II IEC 60664-1
• Function Of Module
• analogue input current Premium
• analogue input voltage Premium
• Pt 100 Premium
• Carbon Footprint Of The Installation Phase A5
• 0.0039182787
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.1 kg CO2 eq.
• 0.0801739149
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 3 kg CO2 eq.
• 2.7501737471
• UI Rated Insulation Voltage
• 2000 V terminals/mounting rails
• Fixing Mode
• by clips (35 mm symmetrical DIN rail)
• by screws (solid plate with fixing kit)
• Vibration Resistance
• 2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 1 034 kg CO2 eq.
• 1034.4
• Resistance To Fast Transients
• 2 kV level 3 IEC 61000-4-4
• Resistance To Electrostatic Discharge
• 4 kV contact) level 3 IEC 61000-4-2
• 8 kV air) level 3 IEC 61000-4-2
• 8 kV air) leve
• Carbon Footprint Of The Distribution Phase A4
• 0.0401263582
• 0 kg CO2 eq.
• Tightening Torque
• 0.6 N.m flat Ø 3.5 mm
• Shock Resistance
• 15 gn 11 ms IEC 60068-2-27
• Resistance To Incandescent Wire
• 750 °C 30 s IEC 60695-2-11
• Ambient Air Temperature For Operation
• 0-60 °C IEC 61131-2

• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 4/5/2025
• HTML Description : Advantys Telefast ABE7 Connection Sub-base for Counter and Analog ChannelsNumber of Channels: 8Connections - Terminals: Screw Type TerminalsRated Insulation Voltage: 2000 V between terminals/mounting railsDegree of Protection:
• Manufacturer : Schneider Electric
• Device Type : PLC System - PLC Component
• Serviceability : No
• Traceability : No
• Manufacturing Carbon Footprint : 2.750173747
• Distribution Carbon Footprint : 0.040126358
• Installation Carbon Footprint : 0.003918279
• Use Carbon Footprint : 1034.4
• End Of Life Carbon Footprint : 0.080173915
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1212029EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 1845
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Connection To Plc : SUB-D 25
• Package Weight Lbs : 301.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : connection sub-base for counter and analogue channels
• Range Of Product : Modicon ABE7
• Returnability : Yes
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 1 037 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 1037.274392
• Relationship Type : cross-selling relationship
• Pep Code : ENVPEP121229EN
• Pep Verification Date : 8/1/2016
• PCR Version : PCR-ed3-EN-2015 04 02
• Type Of Verification For The Pep : Independent external review
• Product Weight In G : 311
• Functional Unit Description : The functional unit is to connect I/O to channels which have HE10 and SUB-D connectors for 10 years, 100% of the time
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 10
• Energy Consumption On Product Lifetime In Kwh : 1752
• Energy Model Manufacturing A1 A3 : Energy model used: Latvia
• Energy Model Installation A5 : Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
• Energy Model Use B6 : Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
• Energy Model End Of Life C1 C4 : Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.000135225
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 8.81001E-05
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 1.6E-09
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 1E-10
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.000047122
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 9E-10
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 10695.89578
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 38.88293132
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.56373803
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.055528477
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 10656
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 0.393577874
• Exported Energy Mj By Energy Vector Total Life Cycle : 0
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
• Hazardous Waste Disposed Of Kg Total Life Cycle : 1.491300724
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.946795387
• Hazardous Waste Disposed Of Kg Distribution A4 : 0
• Hazardous Waste Disposed Of Kg Installation A5 : 0.044504449
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.500000889
• Materials For Energy Recovery Kg Total Life Cycle : 0.018723962
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0.001328267
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0.017395696
• Materials For Recycling Kg Total Life Cycle : 0.114990891
• Materials For Recycling Kg Manufacturing A1 A3 : 0.01406147
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0.039915539
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 0.061013883
• Net Use Of Fresh Water M3 Total Life Cycle : 2.734141145
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.036080871
• Net Use Of Fresh Water M3 Distribution A4 : 3.5911E-06
• Net Use Of Fresh Water M3 Installation A5 : 4.7899E-06
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 2.698
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 5.18923E-05
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 3870.430874
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 1.127987759
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.001425694
• Non Hazardous Waste Disposed Of Kg Installation A5 : 0.000188254
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 3869.3
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.001272491
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.000251451
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 1.577E-07
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 1E-10
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 3E-10
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.00025129
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 2.8E-09
• Radioactive Waste Disposed Of Kg Total Life Cycle : 3.15437821
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.000274649
• Radioactive Waste Disposed Of Kg Distribution A4 : 1.0154E-06
• Radioactive Waste Disposed Of Kg Installation A5 : 2.882E-07
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 3.1541
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 2.2571E-06
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 19519.39888
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 61.289177
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.566593307
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.067522686
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 19457
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.475582645
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 21019.10937
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 61.99839087
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.56735062
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.067591253
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 20956
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 0.47603294
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1500.209808
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.708528185
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.000756096
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 6.84918E-05
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 1499.5
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.000455299
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 5.917381618
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 5.917381618
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 19513.4816
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 55.37189773
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.566593307
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.067522686
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 19457
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.475582645
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.616361085
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.616361085
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1499.593451
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.092171194
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.000756096
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 6.84918E-05
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 1499.5
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.000455299
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0.02630641
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.02630641
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Air Pollution M3 Total Life Cycle : 44625.84906
• Air Pollution M3 Manufacturing A1 A3 : 257.5684623
• Air Pollution M3 Distribution A4 : 1.706923229
• Air Pollution M3 Installation A5 : 0.430819277
• Air Pollution M3 Operational Energy Use B6 : 44363
• Air Pollution M3 End Of Life C1 C4 : 3.142851032
• Water Pollution M3 Total Life Cycle : 43708.57247
• Water Pollution M3 Manufacturing A1 A3 : 292.8756458
• Water Pollution M3 Distribution A4 : 6.598656751
• Water Pollution M3 Installation A5 : 0.459822337
• Water Pollution M3 Operational Energy Use B6 : 43404
• Water Pollution M3 End Of Life C1 C4 : 4.638340518
• Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 7.827570697
• Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 0.370318009
• Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 0.29497973
• Acidification Of Soil And Water Kg Equivalent So2 Manufacturing A1 A3 : 0.004882932
• Acidification Of Soil And Water Kg Equivalent So2 Distribution A4 : 0.000183209
• Acidification Of Soil And Water Kg Equivalent So2 Installation A5 : 1.20884E-05
• Acidification Of Soil And Water Kg Equivalent So2 Operational Energy Use B6 : 7.8224
• Acidification Of Soil And Water Kg Equivalent So2 End Of Life C1 C4 : 0.000092468
• Global Warming Kg Equivalent Co2 Total Life Cycle : 1037.274392
• Global Warming Kg Equivalent Co2 Manufacturing A1 A3 : 2.750173747
• Global Warming Kg Equivalent Co2 Distribution A4 : 0.040126358
• Global Warming Kg Equivalent Co2 Installation A5 : 0.003918279
• Global Warming Kg Equivalent Co2 Operational Energy Use B6 : 1034.4
• Global Warming Kg Equivalent Co2 End Of Life C1 C4 : 0.080173915
• Photochemical Ozone Formation Kg Equivalent C2h4 Manufacturing A1 A3 : 0.000574627
• Photochemical Ozone Formation Kg Equivalent C2h4 Distribution A4 : 1.30739E-05
• Photochemical Ozone Formation Kg Equivalent C2h4 Installation A5 : 1.3094E-06
• Photochemical Ozone Formation Kg Equivalent C2h4 Operational Energy Use B6 : 0.36972
• Photochemical Ozone Formation Kg Equivalent C2h4 End Of Life C1 C4 : 0.000008999
• Water Eutrophication Kg Equivalent P04 3 Manufacturing A1 A3 : 0.001682157
• Water Eutrophication Kg Equivalent P04 3 Distribution A4 : 4.21977E-05
• Water Eutrophication Kg Equivalent P04 3 Installation A5 : 2.8461E-06
• Water Eutrophication Kg Equivalent P04 3 Operational Energy Use B6 : 0.29322
• Water Eutrophication Kg Equivalent P04 3 End Of Life C1 C4 : 3.25287E-05
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : connection sub-base for counter and analogue channels
• Range Of Product : Modicon ABE7
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=1451793&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0%
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 1037.274392
• Circularity Profile : ENVEOLI1212029EN
• Environmental Disclosure : ENVPEP121229EN
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP121229EN
• Pep Verification Date : 8/1/2016
• PCR Version : PCR-ed3-EN-2015 04 02
• Type Of Verification For The Pep : Independent external review
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Latvia
