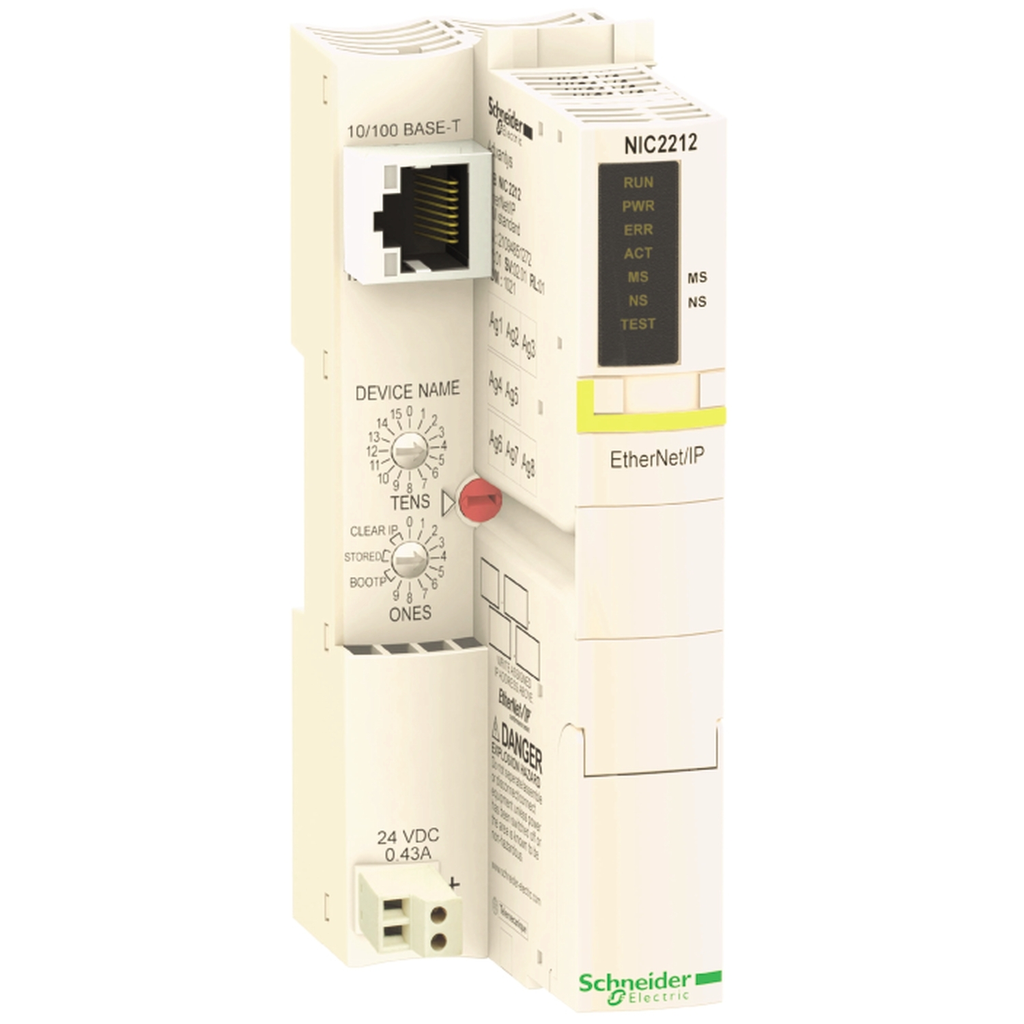

network interface module, Modicon STB, standard, Ethernet/IP, 10-100Mbit/s

ETHERNET/IP NIM STANDARD

SQDSTBNIC2212 STBNIC2212 3595863987812
575.41 / EA
http://schema.org/OutOfStock
Mayer-DDS-network interface module, Modicon STB, standard, Ethernet/IP, 10-100Mbit/s-1
  • Depth: 70 mm
  • Output Voltage: 0.21 %, 5.25 V
  • Warranty Length: 18 mth
This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard network interface module has 1 primary, maximum 6 extensions segments. It is an interface module with a rated supply voltage of 24V DC, a maximum supply current of 700A, an output voltage of 5.25V DC and an output current of 1.2A. Communication services are embedded web, BootP/DHCP protocol and SNMP agent. This product is compatible with most major fieldbus networks. It works with SELV power supply. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 40mm (height) and weighs 0.145kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, CSA, ATEX category 3G, ODVA, C-Tick, UL, it meets IEC 61131-2 2003 and FM Class 1 division 2, groups A, B, C and D T4A standards. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard network interface module has 1 primary, maximum 6 extensions segments. It is an interface module with a rated supply voltage of 24V DC, a maximum supply current of 700A, an output voltage of 5.25V DC and an output current of 1.2A. Communication services are embedded web, BootP/DHCP protocol and SNMP agent. This product is compatible with most major fieldbus networks. It works with SELV power supply. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 40mm (height) and weighs 0.145kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, CSA, ATEX category 3G, ODVA, C-Tick, UL, it meets IEC 61131-2 2003 and FM Class 1 division 2, groups A, B, C and D T4A standards. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Communications & Management Attributes
    • Communication Service : embedded web (configuration,diagnostics and access to variable), BootP/DHCP protocol, SNMP agent
  • Conformance Attributes
    • Product Certifications : UL, ODVA, C-tick, CSA
  • Complementary Attributes
    • Integrated Connection Type : Ethernet/IP IEEE 802.3 female RJ45 double shielded twisted pair via Ethernet network), Ethernet/IP IEEE 802.3 HE-13 RS232 port), Ethernet/IP IEEE 802.3 8-way female RS232 port)
  • Important Information Attributes
    • Persona Type Ids : EU, OM8, SI
    • Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
    • Local Signalling : 1 LED ACT, 1 LED island state (RUN), 1 LED module error (ERR), 1 LED MS, 1 LED NS, 1 LED power supply (PWR), 1 LED test mode (TEST)
    • Vibration Resistance : +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz), 3 gn 58-150 Hz) on 35 mm DIN rail, 5 gn 58-150 Hz) on 35 mm DIN rail, +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz)
    • Medium Desc : network interface module, Modicon STB, standard, Ethernet/IP, 10-100Mbit/s
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-02-24
    • Global Commercial Status : Commercialised
    • Html Descr : Standard Network Interface Module STB, Ethernet/IP, 10...100 Mbit/s
    • Return Indicator : N
    • Stocking Flag : Y
    • Manufacturer : Schneider Electric
    • Device Type : Automation - Distributed inputs/ouputs
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Legacy Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Bearing Track Assembly Possible : true
    • Exchange Mode : half or full duplex
    • Front Installation Possible : false
    • Io Link Master Present : false
    • Marking : CE
    • Network Type : DC
    • Number Of Addressable I O Module : 0-32 per island
    • Number Of Devices Per Segment : 0-256
    • Number Of Segments : 1 primary, maximum 6 extensions
    • Power Supply Type : SELV
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : standard Network Interface Module
    • Rack Assembly Possible : true
    • Radio Standard Bluetooth : false
    • Radio Standard Gprs : false
    • Radio Standard Gsm : false
    • Radio Standard Umts : false
    • Range Of Product : Modicon STB distributed I/O solution
    • Returnability : No
    • Shock Resistance : 30 gn 11 msIEC 88 reference 2-27
    • Supporting Protocol For As Interface Safety At Work : false
    • Supporting Protocol For Asi : false
    • Supporting Protocol For Can : false
    • Supporting Protocol For Data Highway : false
    • Supporting Protocol For Devicenet : false
    • Supporting Protocol For Devicenet Safety : false
    • Supporting Protocol For Ethercat : false
    • Supporting Protocol For Ethernet Ip : false
    • Supporting Protocol For Foundation Fieldbus : false
    • Supporting Protocol For Interbus : false
    • Supporting Protocol For Knx : false
    • Supporting Protocol For Lon : false
    • Supporting Protocol For Modbus : false
    • Supporting Protocol For Other Bus Systems : false
    • Supporting Protocol For Profibus : false
    • Supporting Protocol For Profinet Cba : false
    • Supporting Protocol For Profinet Io : false
    • Supporting Protocol For Profisafe : false
    • Supporting Protocol For Safetybus P : false
    • Supporting Protocol For Sercos : false
    • Supporting Protocol For Suconet : false
    • Supporting Protocol For Tcp Ip : false
    • Sustainable Packaging : No
    • Transmission Rate : 10/100 Mbit/s
    • Wall Mounting Direct Mounting Possible : false
    • Certified For Ul Hazardous Location Class I : false
    • Certified For Ul Hazardous Location Class Ii : false
    • Certified For Ul Hazardous Location Class Iii : false
    • Certified For Ul Hazardous Location Division 1 : false
    • Certified For Ul Hazardous Location Division 2 : false
    • Dc Supply Voltage : 24-24 V
    • Radio Standard Wi Fi 802 11 : false
    • Supporting Protocol For Interbus Safety : false
    • Performance Level According To En Iso 13849 1 : none
    • Potential Separation Present : true
    • System Accessory : true
    • Radio Standard Egprs : false
    • Radio Standard Lte : false
    • Appendant Operation Agent Ex Ia : false
    • Appendant Operation Agent Ex Ib : false
    • Certified For Ul Hazardous Location Group A Acetylene : false
    • Certified For Ul Hazardous Location Group B Hydrogen : false
    • Certified For Ul Hazardous Location Group C Ethylene : false
    • Certified For Ul Hazardous Location Group D Propane : false
    • Certified For Ul Hazardous Location Group E Metal Dusts : false
    • Certified For Ul Hazardous Location Group F Carbonaceous Dust : false
    • Certified For Ul Hazardous Location Group G Non Conductive Dust : false
    • Pep Code : ENVPEP0808003EN
    • Height Nominal : 40 mm
    • Width Nominal : 128.3 mm
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : -25-70 °C with derating factor, -25-70 °C with derating factor, 0-60 °C without derating, -25-70 °C with derating factor, -25-70 °C with derating factor
    • Ambient Air Temperature For Storage : -40-85 °C, -40-85 °C
    • Operating Altitude : <= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP0808003EN
    • Eu Rohs Directive : Compliant By Exemption
    • Ip Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 95-95 % 60-60 °C without condensation
    • Pep Code : ENVPEP0808003EN
  • General Attributes
    • Product Or Component Type : standard Network Interface Module
    • Range Of Product : Modicon STB distributed I/O solution
  • ETIM
    • ETIM 8 : EC001604
    • ETIM 9 : EC001604
  • Output Attributes
    • Nominal Output Current : 0.575 A 60-70 °C, 1.2 A
    • Output Voltage : 5.25 V DC +/- 0.21 %)logic bus
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Input Attributes
    • Input Current : 430 mA supply circuit
  • Specifications
    • Depth : 70 mm
