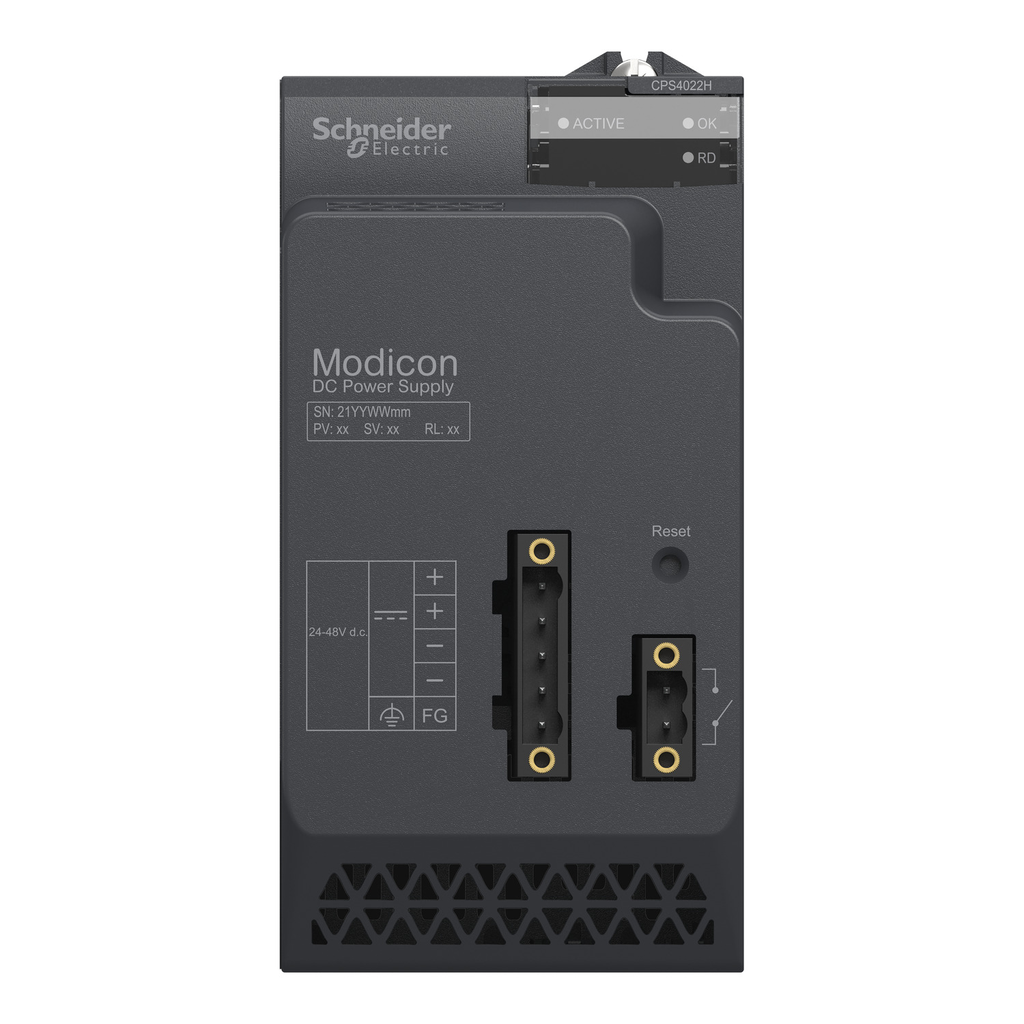

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This redundant power supply module has a primary voltage of 24V to 48V DC for severe environments. It is a power supply module with a secondary power of 40W at 24V DC, a current at secondary voltage of 5.5A at 3.3V DC and a maximum power dissipation of 8.5W. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection. Advanced diagnostics available via networks are temperature sensing, redundancy test, uptime duration, redundancy information and remaining lifetime. It is an IP20 rated product. It weighs 0.81kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with all backplane. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

• Features
• For redundancy
• Performing even in hostile environments
• Internal fuse not accessible for primary circuit
• Overload and overvoltage protection for secondary circuit
• Short circuit protection for secondary circuit
• Modularity and scalability
• Robustness and reliability
• Common safety
• IP20 protection for harshest environments
• Wide range of operating temperature from 0°C to 60°C
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Maximum Cable Distance Between Devices : 10 m, 15 m
• Maximum Power Dissipation In W : 8.5 W
• Important Information Attributes
• Persona Type Ids : EU, OM8, SI
• Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
• Current At Secondary Voltage : 5.5 A 3.3 V DC I/O module logic power supply, 1.67 A 24 V DC I/O module power supply and processor
• Dielectric Strength : 1500 V primary/ground, 1500 V primary/secondary
• Environmental Characteristic : gas resistant class Gx ISA S71.04gas resistant class 3C4 IEC 60721-3-3dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant level 2 IEC 68252mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3hazardous location class I division 2
• Function Available : temperature sensing, uptime duration, redundancy test, remaining lifetime, redundancy information
• Inrush Current : 60 A 48 V, 60 A 24 V
• Insulation Resistance : >= 100 MOhm primary/ground, >= 100 MOhm primary/ground, >= 100 MOhm primary/secondary, >= 100 MOhm primary/secondary>= 100 MOhm primary/ground, >= 100 MOhm primary/ground, >= 100 MOhm primary/secondary
• Protection Type : internal fuse not accessible primary circuitoverload protection secondary circuit, overvoltage protection secondary circuit, short-circuit protection secondary circuit
• Status Led : 1 LED (Green) presence of voltages (OK), 1 LED (Green) redundancy OK, 1 LED (Green) power supply status
• Certificate Agency : CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22IECEx zone 2/22
• Carbon Footprint Of The Distribution Phase A4 : 0.9470359136739728, 0.9 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 1 kg CO2 eq., 1.4414198113750236
• Carbon Footprint Of The Installation Phase A5 : 0.005922770498387473, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 26 kg CO2 eq., 25.55447502170535
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 467 kg CO2 eq., 467.2337794379028
• Local Data Status : Publishable
• Local Publishable Date : 2026-07-27
• Return Indicator : Y
• Device Type : PLC System - PLC Component
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 20 year(s)
• Weee Scope : Out
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2410045EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1940
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 5
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Product Kit Identifier : N
• Control Type : RESET push-button cold restart
• Electrical Connection : 1 connector 2 alarm relay1 connector 5 line supply, protective earth
• Immunity To Microbreaks : 1 ms
• It On Activation : 0.3 A.s 24 V0.4 A.s 48 V
• Mtbf Reliability : 752000 H
• Primary Voltage : 24...48 V
• Primary Voltage Limit : 18...62.4 V
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : power supply module
• Product Specific Application : for severe environments
• Protective Treatment : conformal coating
• Range Of Product : Modicon X80
• Returnability : Yes
• Secondary Power : 18 W 3.3 V DC -25-70 °C I/O module logic power supply40 W 24 V DC -25-70 °C I/O module power supply and processor if 3.3 V not loaded
• Software Version : v6.1
• Supply Circuit Type : DC
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 495 kg CO2 eq.
• Database Version : 2023-02
• Data Source : extrapolated product
• I²T On Activation : 1 A².s 24 V3 A².s 48 V
• Nbr. Of Units In Pkg. : 1
• Customs Code : 8504409510
• Warranty In Months : 18
• Packaging Weight In G : 153.5
• Functional Unit Description : To provide power to a Modicon X80 controller during 10 years and at 90% use rate, in accordance with relevant safety and performance standards.To provide power to a Modicon X80 platform during 10 years with a 90% use rate, in accordance with relevant safety and performance standards.
• Functional Unit Quantity : 1
• Functional Unit Unit : Unit
• Reference Lifetime In Y : 10
• Energy Consumption On Product Lifetime In Kwh : 670.14
• Environment Attributes Main
• Ambient Air Temperature For Operation : -25-70 °C, -25-70 °C
• Ambient Air Temperature For Storage : -40-85 °C, -40-85 °C
• Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 495.1826329551555
• Circularity Profile : ENVEOLI2410045EN
• Environmental Disclosure : ENVPEP2410045EN
• Eu Rohs Directive : Compliant By Exemption
• Ip Degree Of Protection : IP20
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Product Compatibility : all backplane
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 10-95 % without condensation
• Pep Code : ENVPEP2410045EN
• Pep Verification Date : 2024-12-01
• Pcr Version : PCR-4-ed4-EN-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : power supply module
• Range Of Product : Modicon X80
• ETIM
• ETIM 8 : EC000599
• ETIM 9 : EC000599
• ETIM 10 : EC000599
• Input Attributes
• Input Current : 1.9 A 24 V1 A 48 V
• Specifications
• Country of Origin : United States
• Weight : 640 g
