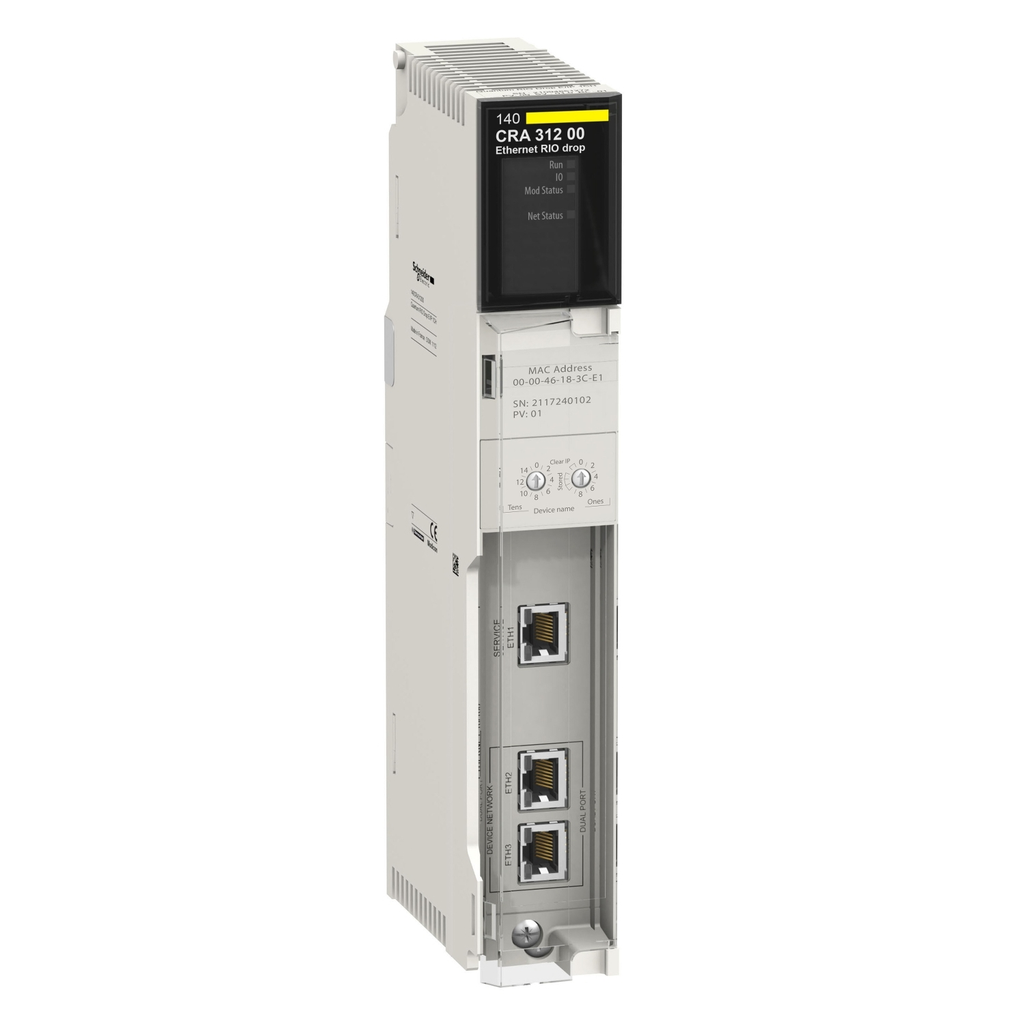

Quantum RIO Drop E/IP 1CH

QUANTUM RIO DROP E/IP 1CH

SQD140CRA31200 140CRA31200 3595864117201
2396.06 / EA
http://schema.org/OutOfStock
Mayer-DDS-Quantum RIO Drop E/IP 1CH-1
  • Certifications: CE, C-tick, UL 508
  • Height: 50 mm
  • Net Weight: 0.554 kg
  • Standard: CSA C22.2 No 142, IEC 55011, IEC 61000-4-16
  • Storage Temperature: -40-85 °C IEC 60068-2-1, -40-85 °C IEC 60068-2-2
  • Warranty Length: 18 mth
  • Width: 167 mm
QTY
  • Specifications
  • Environment
    • Product Certifications : CE || UL 508 || C-tick
    • Standards : IEC 55011 || CSA C22.2 No 142 || IEC 61000-4-16
    • Ambient Air Temperature For Operation : 0-60 °C IEC 60068-2-1 || 0-60 °C IEC 60068-2-2
    • Vibration Resistance : 3.5 mm constant amplitude 0.5-8.4 Hz)IEC 61131-2 || 1 gn constant acceleration 8.4-150 Hz)IEC 61131-2
    • Ip Degree Of Protection : IP20 conforming to IEC 61131-2 || IP20 conforming to IEC 60527
    • Ambient Air Temperature For Storage : -40-85 °C IEC 60068-2-1 || -40-85 °C IEC 60068-2-2
    • Overvoltage Category : class I IEC 61131-2
    • Relative Humidity : 93-93 % conforming to IEC 60068
    • Maximum Altitude Transport : 3000 m
    • Operating Altitude : 6561.68 ft (2000 m)
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP071201EN
    • Sustainable Offer Status : Green Premium product
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI0712001EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Height : 50 mm
    • Environmental Characteristic : standard environment || hazardous location class I division 2 EN/IEC 61131-1
    • Net Weight : 0.554 kg
    • Topology : daisy chain loop
    • Local Signalling : for module status (Mod Status) 1 LED (green/red) || for network communication status (Net Status) 1 LED (green/red) || for RUN 1 LED (green) || for I/O 1 LED (red)
    • Width : 167 mm
    • Product Compatibility : 140CRP31200
  • Specifications
    • Range Of Product : Modicon Quantum
    • Communication Service : the input data are collected and published to the remote I/O head adaptor || output modules are updated with the data received from remote I/O head adaptor
    • Product Or Component Type : Ethernet RIO drop adaptor
    • Communication Port Protocol : Ethernet IP/Modbus TCP
    • Number Of Port : 3
    • Integrated Connection Type : Ethernet IP/Modbus TCP service port || Ethernet IP/Modbus TCP device network
