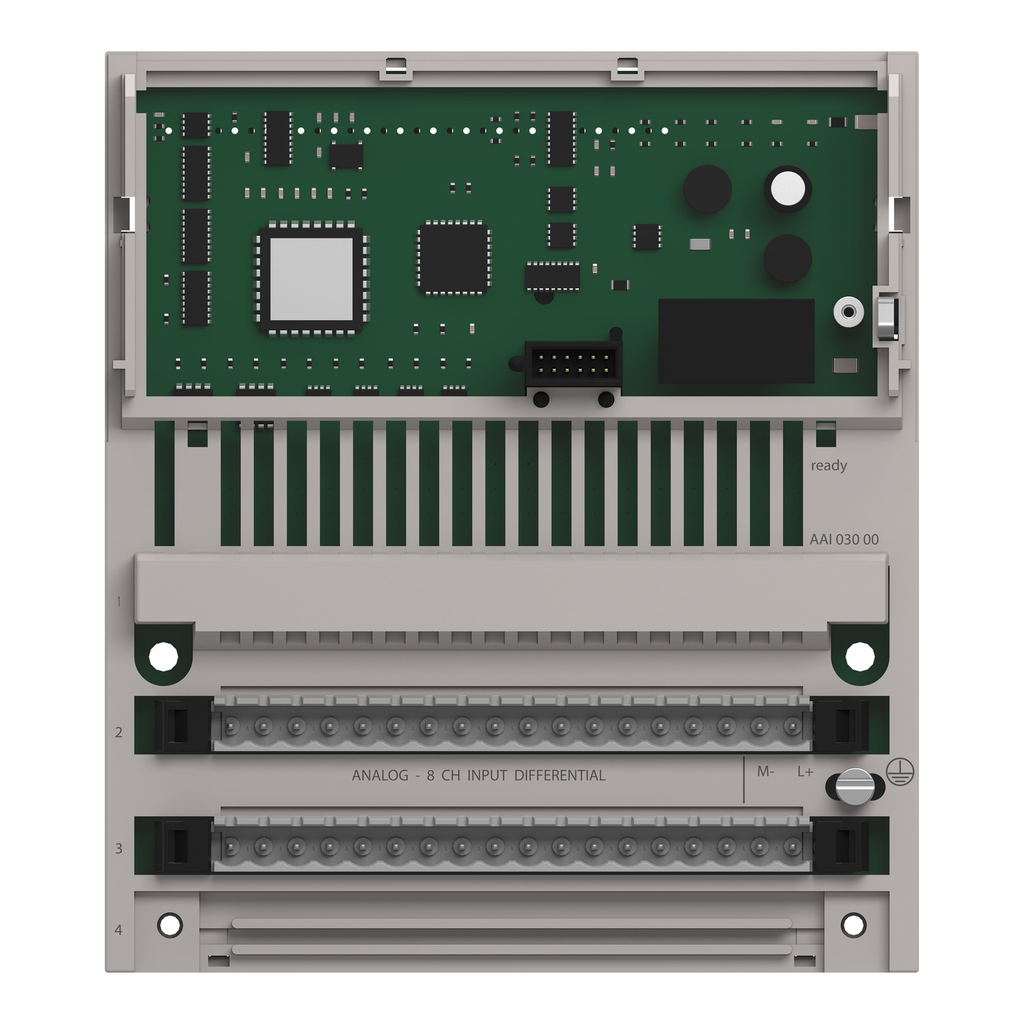

distributed analog input Modicon Momentum - 8 Input

ANALOG INPUT 8 CH.DIFF

SQD170AAI03000 170AAI03000 3595861147683
1599.67 / EA
http://schema.org/OutOfStock
Mayer-DDS-distributed analog input Modicon Momentum - 8 Input-2
  • Country of Origin: Indonesia
  • Depth: 47.5 mm
  • Height: 125 mm
  • Net Weight: 0.215 kg
  • Warranty Length: 18 mth
  • Weight: 0.215 kg
  • Width: 141.5 mm
This input base is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This analog input base offers 8 inputs with a full 16bit signed resolution. It offers differential analog input ranges from ±20mA, 4mA to 20mA, ±10V, ±5V and 1V to 5V. There is an isolation between channels and bus, channels and ground at 500V AC. It is furnished with 2 removable terminal blocks for electrical connection. It features 1 LED for ready and 8 LEDs for channel status signaling. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height). It weighs 0.215kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It meets EN 50081-2 and IEC 1131 standards. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.
QTY
  • Product Description
  • Features
  • Specifications
This input base is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This analog input base offers 8 inputs with a full 16bit signed resolution. It offers differential analog input ranges from ±20mA, 4mA to 20mA, ±10V, ±5V and 1V to 5V. There is an isolation between channels and bus, channels and ground at 500V AC. It is furnished with 2 removable terminal blocks for electrical connection. It features 1 LED for ready and 8 LEDs for channel status signaling. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height). It weighs 0.215kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It meets EN 50081-2 and IEC 1131 standards. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : FM Class 1 Division 2 || CSA || UL
    • Ambient Air Temperature For Operation : 0-60 °C
    • Resistance To Electromagnetic Fields : 10 V/m 80...1000 MHz IEC 801-3
    • Standards : EN 50081-2 || IEC 1131
    • Ambient Air Temperature For Storage : -40-85 °C
    • Relative Humidity : 95-95 % without condensation
    • Resistance To Electrostatic Discharge : 4 kV contact IEC 801-2 || 8 kV on air IEC 801-2
    • Protective Treatment : TC
    • Operating Altitude : <= 16404.2 ft (5000 m)
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1403005EN
    • Packaging Without Single Use Plastic : No
    • Scip Number : 441d5619-6318-4bbf-ac83-96d05888ee7e
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI1403005EN
    • Take-Back : No
    • Sustainable Packaging : No
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Electrical Connection : 2 connectors for removable terminal blocks
    • Height : 125 mm
    • Isolation Between Channels And Ground : 500 V AC for 1 minute
    • Data Format : full 16 bits signed
    • Marking : CE
    • External Power Requirement : < 382 mA DC || 20.4...28.8 V DC || 24 V DC
    • Net Weight : 0.215 kg
    • Isolation Between Channels : +/- 200 V DC for 1 minute
    • Permissible Common Mode Voltage : 100 V 47...63 Hz DC between channels to ground || 250 V 47...63 Hz AC between channels to ground
    • Absolute Accuracy Error : +/- 0.13 % full scale 25 °C 1...5 V || +/- 0.41 % full scale 60 °C +/- 20 mA || +/- 0.19 % full scale 60 °C 1...5 V || +/- 0.21 % full scale 25 °C +/- 5 V || +/- 0.26 % full scale 60 °C +/- 5 V || +/- 0.27 % full scale 25 °C +/- 10 V || +/- 0.27 % full scale 25 °C 4...20 mA || +/- 0.32 % full scale 25 °C +/- 20 mA || +/- 0.32 % full scale 60 °C +/- 10 V || +/- 0.38 % full scale 60 °C 4...20 mA
    • Local Signalling : 1 LED (green) for ready || 8 LEDs for channel status
    • Common Mode Rejection : > 80 dB between channels to ground
    • Conversion Time : 12 ms 8
    • Width : 141.5 mm
    • Depth : 47.5 mm
    • Isolation Between Channels And Bus : 500 V AC for 1 minute
    • Reverse Polarity Protection : internal
  • Specifications
    • Country of Origin : Indonesia
    • Width : 141.5 mm
    • Height : 125 mm
    • Weight : 0.215 kg
    • Range Of Product : Modicon Momentum automation platform
    • Analogue Input Range : +/- 20 mA 14 bits + sign 250 kOhm || 4...20 mA 15 bits + sign 250 kOhm || +/- 10 V 14 bits + sign > 0.1 kOhm || +/- 5 V 14 bits + sign > 0.1 kOhm || 1...5 V 15 bits + sign > 0.1 kOhm
    • Analogue Input Type : differential
    • Product Or Component Type : analogue input base
    • Analogue Input Number : 8
