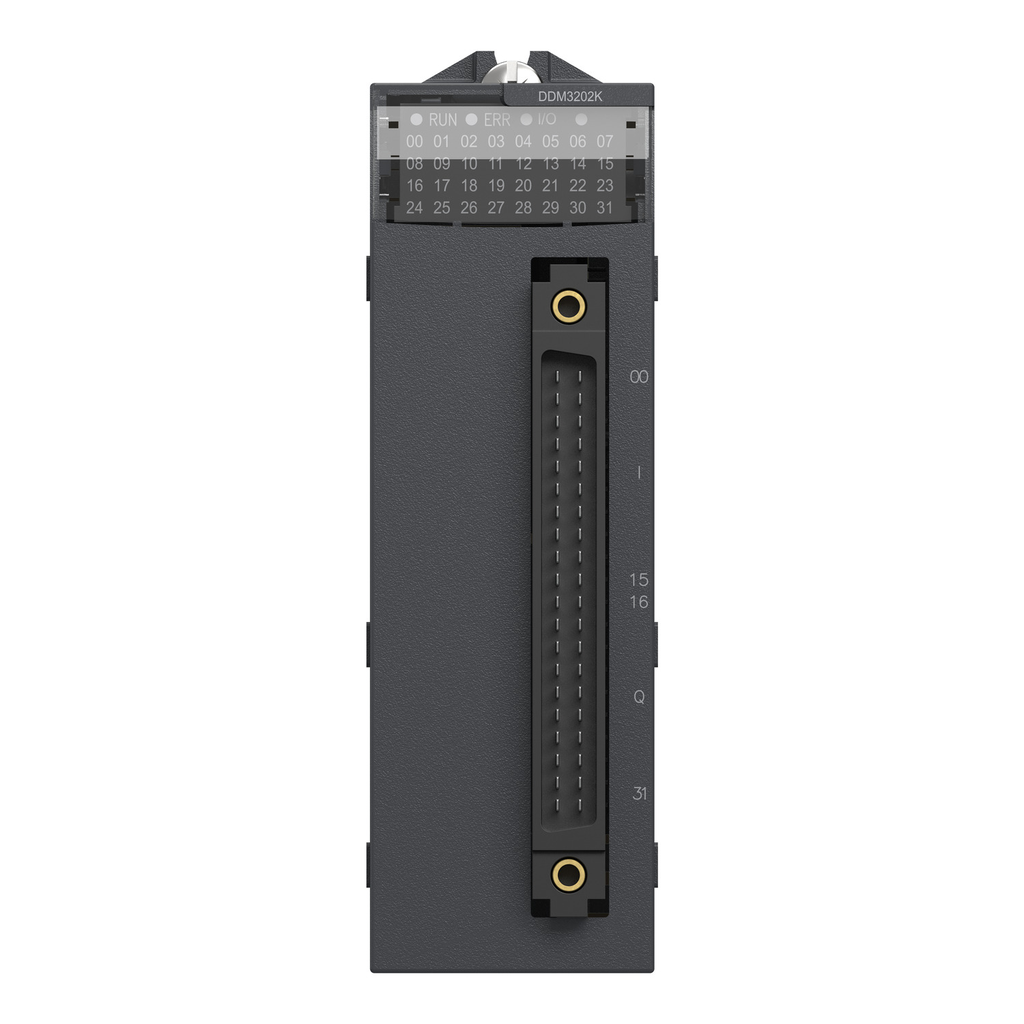

discrete mixed IO module, Modicon X80, 16 inputs, 16 outputs, 24V DC positive

DIG 16I 24VDC 16Q SOUR TR

SQDBMXDDM3202K BMXDDM3202K 3595863910636
764.77 / EA
http://schema.org/OutOfStock
Mayer-DDS-discrete mixed IO module, Modicon X80, 16 inputs, 16 outputs, 24V DC positive-2
  • Country of Origin: France
  • Dielectric Strength: 1500 V, 50/60 Hz, 500 V
  • Net Weight: 0.11 kg
  • Warranty Length: 18 mth
  • Weight: 0.11 kg
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete I/O module has 16 input channels, 16 solid state output channels. It is a discrete I/O module with a discrete input/output voltage of 24V DC, an output current of 0.1A, a maximum power dissipation of 4W and current consumption of 104mA at 24V DC, 166mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It offers 432904 hours of MTBF. It is an IP20 rated product. It weighs 0.11kg. It is suitable for medium to large process applications. This product is certified by Merchant Navy, RCM, CSA, EAC, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This input compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete I/O module has 16 input channels, 16 solid state output channels. It is a discrete I/O module with a discrete input/output voltage of 24V DC, an output current of 0.1A, a maximum power dissipation of 4W and current consumption of 104mA at 24V DC, 166mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It offers 432904 hours of MTBF. It is an IP20 rated product. It weighs 0.11kg. It is suitable for medium to large process applications. This product is certified by Merchant Navy, RCM, CSA, EAC, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This input compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Ambient Air Temperature For Operation : 0-60 °C
    • Shock Resistance : 30 gn
    • Dielectric Strength : 1500 V AC 50/60 Hz 1 minute, output/ground || 1500 V AC 50/60 Hz 1 minute, output/internal logic || 1500 V AC 50/60 Hz 1 minute, primary/secondary || 500 V DC 1 minute, between group of inputs and outputs
    • Vibration Resistance : 3 gn
    • Directives : 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
    • Ambient Air Temperature For Storage : -40-85 °C
    • Relative Humidity : 5-95 % 55-55 °C without condensation
    • Operating Altitude : 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
    • Ip Degree Of Protection : IP20
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2311046EN
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI2311046EN
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 20.5516634815
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 17.1211393939
    • Carbon Footprint Of The Distribution Phase [A4] : 0 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq.
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 38 kg CO2 eq.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.2377728485
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 37.9637794088
  • Complementary
    • Mtbf Reliability : 430000 H
    • Voltage Range : 19...30 V
    • Maximum Current Per Module : 3.2 A
    • Switching Frequency : 0.5/LI² Hz
    • Maximum Overload Time : 15 ms
    • Status Led : 1 LED (Green) module operating (RUN) || 1 LED per channel (Green) channel diagnostic || 1 LED (Red) module error (ERR) || 1 LED (Red) module I/O
    • Voltage Detection Threshold : < 14 V DC preactuator fault || < 14 V DC sensor fault || > 18 V DC preactuator OK || > 18 V DC sensor OK
    • Current Per Channel : 0.125 A
    • Maximum Voltage Drop : <1.5 V at state 1
    • Current Consumption : <= 104 mA 24 V DC || <= 166 mA 3.3 V DC
    • Insulation Resistance : > 10 MOhm 500 V DC
    • Current State 1 Guaranteed : >= 2 mA
    • Protection Type : 1 external fuse per group of input channel 0.5 A fast blow || overvoltage protection on output || reverse polarity protection on input || reverse polarity protection on output
    • Power Dissipation In W : 4 W
    • Net Weight : 0.11 kg
    • Maximum Leakage Current : 0.1 mA at state 0
    • Load Impedance Ohmic : <= 220 Ohm
    • Paralleling Of Outputs : yes : 3 maximum
    • Dc Typical Filtering Time : 4 ms
    • Input Compatibility : with 2-wire/3-wire proximity sensors IEC 60947-5-2 || with 2-wire/3-wire proximity sensors IEC 61131-2 Type 1
    • Typical Current Consumption : 69 mA 24 V DC || 125 mA 3.3 V DC
    • Current State 0 Guaranteed : <= 0.5 mA
    • Output Overvoltage Protection : with transil diode
    • Output Short-Circuit Protection : with 2 A external fuse
    • Output Overload Protection : with electronic circuit breaker 0.125 A < Id < 0.185 A || with current limiter
    • Input Impedance : 9600 Ohm
    • Maximum Tungsten Load : 1.2 W
    • Reverse Polarity Protection : reverse mounted diode
    • Dc Maximum Filtering Time : 7 ms
    • Response Time On Output : 1.2 ms
  • Specifications
    • Country of Origin : France
    • Weight : 0.11 kg
    • Discrete Output Type : solid state
    • Range Of Product : Modicon X80
    • Discrete Output Number : 16
    • Discrete Input Voltage : 24 V DC positive
    • Discrete Output Voltage : 24 V 19...30 V DC
    • Product Or Component Type : discrete I/O module
    • Discrete Output Current : 0.1 A
    • Input Type : current sink (logic positive)
    • Discrete Input Number : 16
    • Discrete Input Current : 2.5 mA
