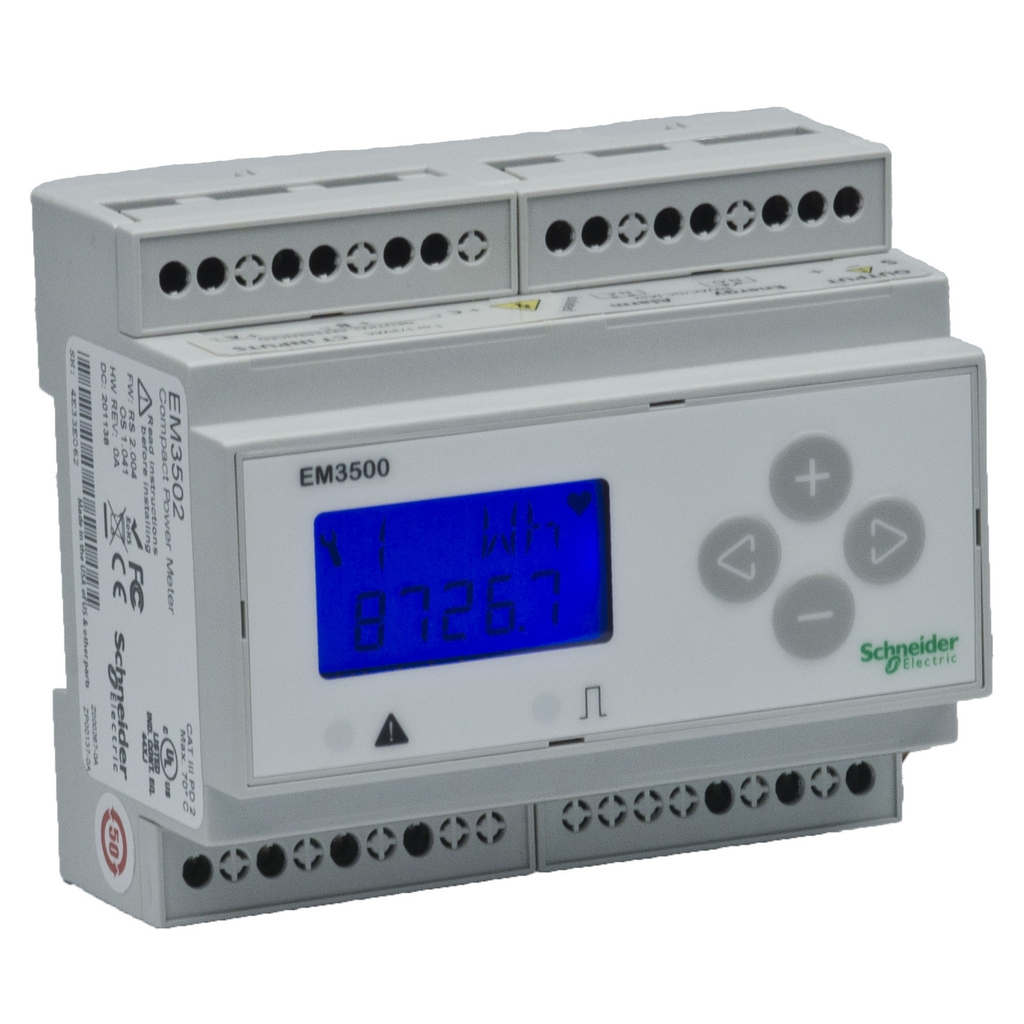

The EM3500 series offer a three-phases DIN rail-mounted energy meters fitted for accurate cost allocation and sub-metering. EM35xx models are designed for use with Low Votage Current Transducers 1/3Volt or 1Volt output. Current input from 5A to 32000A, a

• Power Consumption In W
• 3 W 300-300 V
• Data Recording
• energy consumption logs
• time stamping
• Analogue Input Type
• low voltage current transformer 0.333 V or 1 V
• Ride Through Time
• 100 ms 120 V AC
• Mounting Mode
• clip-on
• by screws
• Function Available
• external synchronisation to communication
• fixed or rolling block
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Metering Type
• peak demand power PM, QM, SM
• current I1, I2, I3, Iavg
• active, reactive, apparent energy (signed, four quadrant)
• demand power P, Q, S
• voltage U21, U32, U13, V1, V2, V3
• Communication Service
• total cumulated active energy
• total cumulated energy
• Carbon Footprint Of The Installation Phase A5
• 0.007375080016090249
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.9 kg CO2 eq.
• 0.8889475602366841
• Standards
• CSA C22.2 No 14-05
• UL 508
• IEC 61010-1
• Ue Rated Operational Voltage
• 90...347 V AC 50/60 Hz between phase and neutral UL
• 90...347 V AC 50/60 Hz between phase and neutr
• Communication Port Support
• screw terminal block RS485
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 11 kg CO2 eq.
• 11.42747762397304
• Device Application
• partial meter
• sub billing
• Communication Port Protocol
• Modbus RTU 1200…38400 bps - 2-wire
• Communication Of Data
• instantaneous and demand values
• lifetime energy production
• Type Of Measurement
• active and reactive power total
• active and reactive power per phase
• apparent power total
• apparent power per phase
• power factor total
• power f
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 71 kg CO2 eq.
• 71.20224000463229
• Number Of Outputs
• 1 alarm output
• 1 pulse
• Buffer Size
• 16-bit 10
• Measurement Accuracy
• power +/- 0.2 %
• energy +/- 0.2 %
• Carbon Footprint Of The Distribution Phase A4
• 0.1844264326882299
• 0.2 kg CO2 eq.
• Network Frequency
• 60 Hz
• 50 Hz
• Information Displayed
• status and alert
• communication with system
• input/output status
• error
• Tx activity
• Rx activity
• instant power per usage
• Local Signalling
• Red LED threshold reached
• Green flashing LED output signal
• Power Consumption In Va
• 5-5 VA 347 V AC between phase and neutral)
• 5-5 VA 600 V AC between phases)
• 5-5 VA 600 V AC be
• Product Certifications
• CE conforming to IEC 61010
• cULus conforming to UL 508

• Physical Attributes
• Color : dark grey
• Complementary Attributes
• Rated Voltage : 90-347 V
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-09-25
• Html Descr : EM3500 BAC NET METER
• Manufacturer : Schneider Electric
• Device Type : Relay, Control & Measurement - measuring, monitoring device
• Serviceability : No
• Traceability : Yes
• Field Service Division : DPIBS
• Average Life Duration : 15 year(s)
• Manufacturing Carbon Footprint : 11.427477623973
• Distribution Carbon Footprint : 0.18442643268823
• Installation Carbon Footprint : 7.37508001609025e-03
• Use Carbon Footprint : 71.2022400046323
• End Of Life Carbon Footprint : 0.888947560236684
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 2031
• ROHS Eur Full Compliance Status : Compliant with Exemptions
• ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : Yes
• China ROHS Label : 5
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : A - SELECTED - PCE ONLY (Migration)
• Device Short Name : EM3555
• Display Digits : 5
• Display Type : Backlit LCD
• Measurement Current : 5-32000 A
• Mounting Support : DIN rail
• Package Weight Lbs : 3.629 kg
• Poles Description : 3P + N
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : energy meter
• Range : PowerLogic
• Returnability : Yes
• Sustainable Packaging : No
• Tamperproof Of Settings : protected by access code
• Technology Type : electronic
• Total Lifecycle Carbon Footprint : 84 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 83.71046670154634
• General Attributes
• Product Or Component Type : energy meter
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=403771891&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 83.7104667015463
• 9 MM Pitches : 12
• Ambient Air Temperature For Operation : -30-70 °C
• Ambient Air Temperature For Storage : -40-85 °C
• Eu Rohs Directive : Compliant with Exemptions
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 0-95 %
• Specifications
• Country of Origin : United States
• Height : 3.58 in
• Width : 4.21 in
• Depth : 2.32 in
