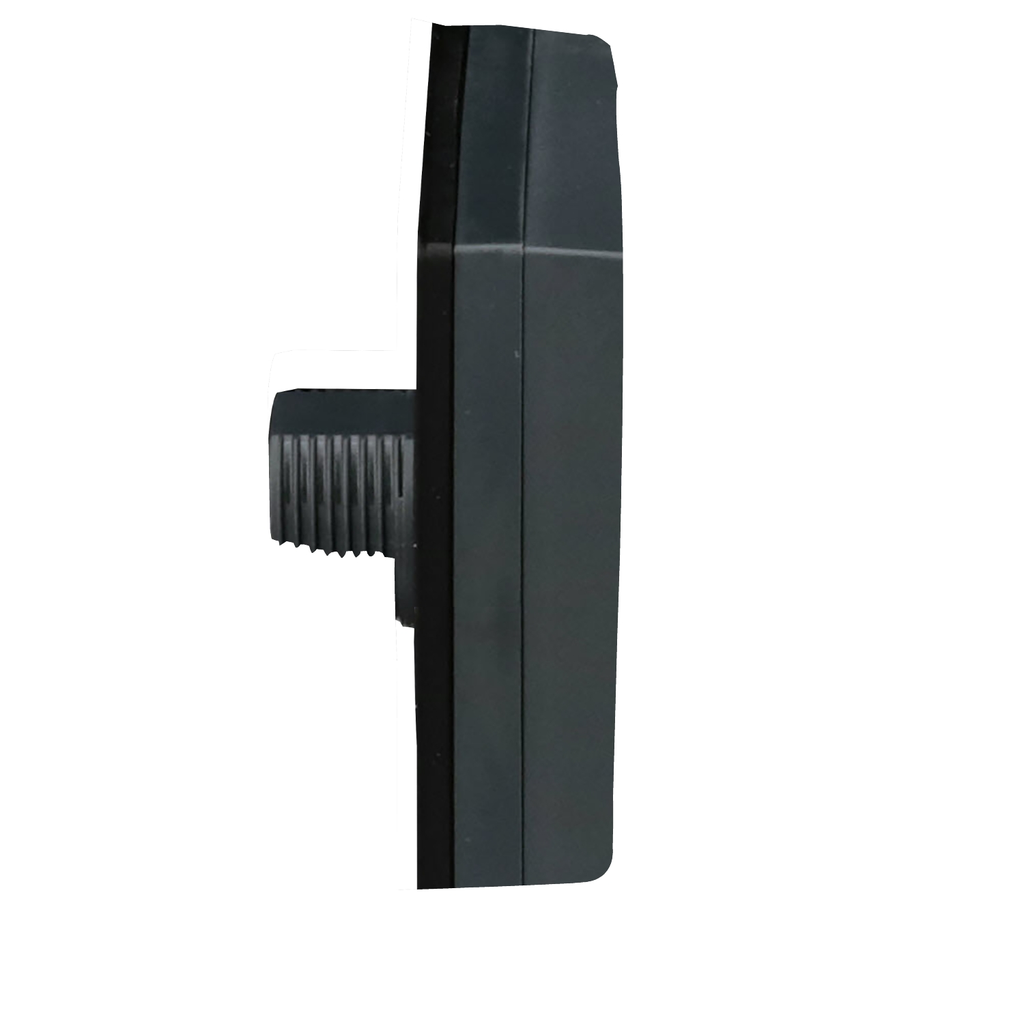

This device is a DIN-mount energy meter with an additional 96mm by 96mm backlit LCD remote display. The meter provides Class 0.2S accuracy per IEC 62053-22 standard and 128 samples per cycle. The meter will measure Energy, Active and Reactive Power, Volt

• Data Recording
• time stamping
• data logs
• maintenance logs
• event logs
• alarm logs
• min/max of instantaneous values
• Connections Terminals
• voltage circuit screw terminal block4
• control circuit screw terminal block2
• current transformer screw
• Ethernet Service
• SNTP client
• SNMP-Traps
• Analogue Input Type
• voltage (impedance 5 MOhm)
• current (impedance <= 0.3 mOhm)
• Ride Through Time
• 35 ms 120 V AC typical
• 129 ms 230 V AC typical
• 50 ms 125 V DC typical
• 50 ms 125 V DC typic
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Metering Type
• measured neutral current
• calculated ground current
• Carbon Footprint Of The Installation Phase A5
• 0 kg CO2 eq.
• 0.04421092926151829
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 1.2006731281890972
• 1 kg CO2 eq.
• Standards
• EN 50470-3
• EN 50470-1
• IEC 62053-22:2020
• IEC 60529
• UL 61010-1
• IEC 62053-24
• IEC 61557-12:2015
• ANSI C12.20
• IEC 62053-23:2020
• IEC 62052-11:2020
• IEC 62052-31:2015
• Communication Port Support
• RS485
• ETHERNET
• Ip Degree Of Protection
• IP54 display: conforming to IEC 60529
• IP30 rear: conforming to IEC 60529
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 33 kg CO2 eq.
• 33.22408228090151
• Device Application
• gateway
• power monitoring
• WAGES metering
• multi-tariff
• Accessories
• METSEPM55HK
• METSEPM55HKRD
• METSEPM55RSK
• Communication Port Protocol
• Modbus RTU and ASCII 9.6, 19.2 and 38.4 kbauds even/odd or none - 2 wires 2500 V
• Modbus RTU
• Number Of Inputs
• 4 digital
• Web Services
• diagnostic via predefined web pages
• real time viewing of data
• web server
• alarm notification by e-mail
• Type Of Measurement
• current
• voltage
• frequency
• power factor
• energy
• active and reactive power
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 7 kg CO2 eq.
• 7.352530784746031
• Electromagnetic Compatibility
• limits for harmonic current emissions class A conforming to IEC 61000-3-2
• conducted RF disturbances level
• Number Of Outputs
• 2 digital
• Line Rated Current
• 1 A
• 5 A
• Relative Humidity
• 5-95 % 50-50 °C non-condensing
• Us Rated Supply Voltage
• 100...300 V DC
• 90...528 V AC 45...65 Hz
• Measurement Accuracy
• apparent power +/- 0.5 %
• frequency +/- 0.05 %
• active energy +/- 0.2 %
• reactive energy +/- 1 %
• active power +/- 0.2 %
• voltage +/- 0.1 %
• vo
• Carbon Footprint Of The Distribution Phase A4
• 0.24020635933459739
• 0.2 kg CO2 eq.
• Measurement Voltage
• 20-400 V AC 45...65 Hz between phase and neutral
• 20-828 V AC 45...65 Hz between phases
• 20-828 V AC 45...65
• Network Frequency
• 50 Hz
• 60 Hz
• Poles Description
• 1P + N
• 3P
• 3P + N
• Market Segment
• buildings small building cost management: billing: main incomer
• buildings small building cost management: billing: main income
• Maximum Power Consumption In Va
• 16 VA 480 V
• Information Displayed
• tariff 8)
• Product Certifications
• CE conforming to IEC 61010-1
• cULus conforming to UL 61010-1
• BTL

• Communications & Management Attributes
• Communication Gateway : Ethernet/serial
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-06-18
• Html Descr : The PowerLogic PM5000 series power meters are the new benchmark in affordable, precision metering. It is the ideal fit for high-end cost management applications, providing the measurement capabilities needed to allocate energy. The PM5563 provides basic
• Manufacturer : Schneider Electric
• Device Type : Relay, Control & Measurement - measuring, monitoring device
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : DPIBS
• Manufacturing Carbon Footprint : 33.2240822809015
• Distribution Carbon Footprint : 0.240206359334597
• Installation Carbon Footprint : 4.42109292615183e-02
• Use Carbon Footprint : 7.35253078474603
• End Of Life Carbon Footprint : 1.2006731281891
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1310016_V2
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 2004
• ROHS Eur Full Compliance Status : Compliant
• ROHS Eur Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : Yes
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Dangerous Goods Code : LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
• Compatibility Code : PM5563
• Device Short Name : PM5563
• Display Resolution : 128 x 128 pixels
• Display Type : remote LCD display
• Frequency Measurement Range : 45-65 Hz
• Measurement Current : 50-10000 mA
• Memory Capacity : 1.1 MB
• Mounting Mode : clip-on
• Mounting Support : DIN rail
• Package Weight Lbs : 949.000 g
• Power Quality Analysis : up to the 63rd harmonic
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : power meter
• Range : PowerLogic
• Returnability : Yes
• Sampling Rate : 128 samples/cycle
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 42 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 42.061703482432755
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : power meter
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=460098301&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 42.0617034824328
• Ambient Air Temperature For Operation : -25-70 °C
• Ambient Air Temperature For Storage : -40-85 °C
• Circularity Profile : ENVEOLI1310016_V2
• Environmental Disclosure : ENVPEP1310016_V2
• Eu Rohs Directive : Compliant
• Operating Altitude : <= 9842.52 ft (3000 m)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Specifications
• Country of Origin : India
• Height : 3.78 in
• Width : 3.78 in
• Depth : 2.83 in
