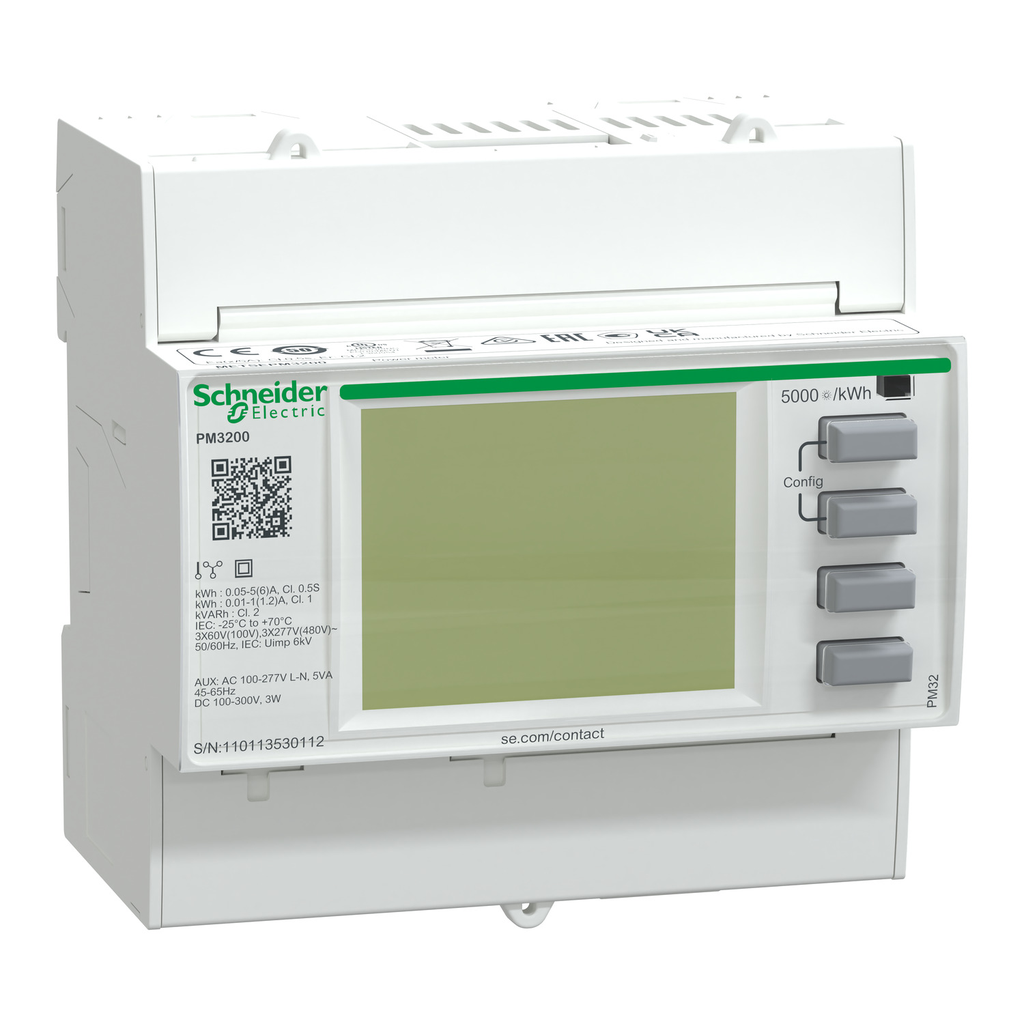

PM3200 DIN mount energy meter with a 128 by 96 pixel backlit, LCD display. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 32 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor, Apparent Power and up to 15th Harmonic. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 277VAC, 173 to 480VAC and 100 to 300VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase, Single Phase and Neutral or Three Phase configurations. Direct measurement range is 50 to 570VAC, with an external VT 570 to 999000VAC. The range of measurement voltage between Phases is 80 to 570VAC at 45 to 65 Hz. Measurement range between Phase and Neutral is 50 to 330VAC at 45 to 65 Hz. This meter has no communication input or output capability. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.76in (70 mm), height 3.74 in (95 mm) and product weight 9.17 oz (260 g).

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environment
• Ambient Air Temperature For Operation : -25-70 °C
• Electromagnetic Compatibility : electrostatic discharge level 4 conforming to IEC 61000-4-2 || susceptibility to electromagnetic fields level 3 conforming to IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 || surge immunity test level 4 conforming to IEC 61000-4-5 || conducted RF disturbances level 3 conforming to IEC 61000-4-6 || magnetic field at power frequency - test level: 0.5 mT conforming to IEC 61000-4-8 || conducted and radiated emissions class B conforming to EN 55022
• Pollution Degree : 2
• Ambient Air Temperature For Storage : -40-85 °C
• Relative Humidity : 5-95 % 50-50 °C
• Ip Degree Of Protection : IP40 front panel: conforming to IEC 60529 || IP20 body: conforming to IEC 60529
• Compatibility Code : PM3200
• Overvoltage Category : III
• Operating Altitude : < 9842.52 ft (3000 m)
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Packaging Made With Recycled Cardboard : No
• Environmental Disclosure : ENVPEP111275EN
• Packaging Without Single Use Plastic : No
• Scip Number : 97b2464b-a770-4df3-ae2e-dece74cced54
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Minimum Percentage Of Recycled Plastic Content : 0
• Circularity Profile : ENVEOLI111258EN
• Take-Back : No
• Complementary
• Network Frequency : 50 Hz || 60 Hz
• Communication Port Support : -
• Power Quality Analysis : up to the 15th harmonic
• Height : 95 mm
• Measurement Voltage : 50-330 V AC 45...65 Hz direct || 50-330 V AC 45...65 Hz phase to neutral || 80-570 V AC 45...65 Hz direct || 80-570 V AC 45...65 Hz phase to phase || 570-999000 V AC 45...65 Hz with external VT
• Sampling Rate : 32 samples/cycle
• Standards : BS EN 61557-12 || IEC 61557-12 || EN 61557-12 || BS EN 61326-1 || IEC 61326-1 || EN 61326-1 || BS EN 62052-11 || IEC 62052-11 || EN 62052-11 || BS EN 62053-21 || IEC 62053-21 || EN 62053-21 || BS EN 62053-22 || IEC 62053-22 || EN 62052-22 || BS EN 62053-23 || IEC 62053-23 || EN 62052-23 || BS EN 61010-1 || EN 61010-1 || IEC 61010-1 || UL 61010-1 || BS EN 61010-2-30 || IEC 61010-2-30 || EN 61010-2-30 || UL 61010-2-30 || ANSI C12.20
• Number Of Outputs : 0
• Type Of Measurement : active and reactive power || apparent power || current || voltage || energy || power factor || frequency
• Communication Port Protocol : -
• Frequency Measurement Range : 45-65 Hz
• Power Consumption In Va : 5 VA
• Display Resolution : 128 x 96 pixels
• Product Certifications : CE IEC 61010-1 safety) || CE EN 61557-12 power monitor) || CE EN/IEC 61326-1 EMC) || UKCA BS EN 61010-1 safety) || UKCA BS EN 61557-12 power monitor) || UKCA BS EN 61326-1 EMC) || cULus EN 61010-1 safety) || cULus UL 61010-1 safety) || EAC sub-meter) || RCM
• Number Of Inputs : 0
• Net Weight : 0.26 kg
• Depth : 70 mm
• Measurement Current : 0.05-6 A || 0.02-1.2 A
• Information Displayed : tariff 4)
• [Us] Rated Supply Voltage : 100...277 V AC 45...65 Hz || 173...480 V AC 45...65 Hz || 100...300 V DC
• Mounting Mode : clip-on
• Measurement Accuracy : current 0.3 % 0.5...6 A || current 0.5 % 0.1...1.2 A || voltage 0.3 % 50...330 V || voltage 0.3 % 80...570 V
• Mounting Support : DIN rail
• Poles Description : 3P + N || 3P || 1P + N
• Data Recording : min/max of instantaneous values
• Line Rated Current : 5 A || 1 A
• Analogue Input Type : current 0...5 A || current 0...1 A
• Width : 90 mm
• Display Type : Backlit LCD
• Market Segment : residential || small commercial
• Device Application : multi-tariff || sub billing || power monitoring
• Accuracy Class : class 0.5S active energy IEC 62053-22 || class 1 active energy IEC 62053-21 || class 2 reactive energy IEC 62053-23 || class C active energy EN 50470-3
• Specifications
• Country of Origin : China
• Width : 90 mm
• Height : 95 mm
• Weight : 0.26 kg
• Product Or Component Type : power meter
• Market Segment : buildings small building cost management: billing: sub feeder || buildings medium building cost management: billing: sub feeder || buildings large building cost management: billing: sub feeder || buildings multi-site cost management: billing: sub feeder || data center cost management: billing: sub feeder || healthcare cost management: billing: sub feeder || industry cost management: billing: sub feeder || buildings small building cost management: cost allocation: sub feeder || buildings medium building cost management: cost allocation: sub feeder || buildings large building cost management: cost allocation: sub feeder || buildings multi-site cost management: cost allocation: sub feeder || data center cost management: cost allocation: sub feeder || healthcare cost management: cost allocation: sub feeder || industry cost management: cost allocation: sub feeder
• Product Name : PowerLogic PM3000
• Range : PowerLogic
• Device Short Name : PM3200
