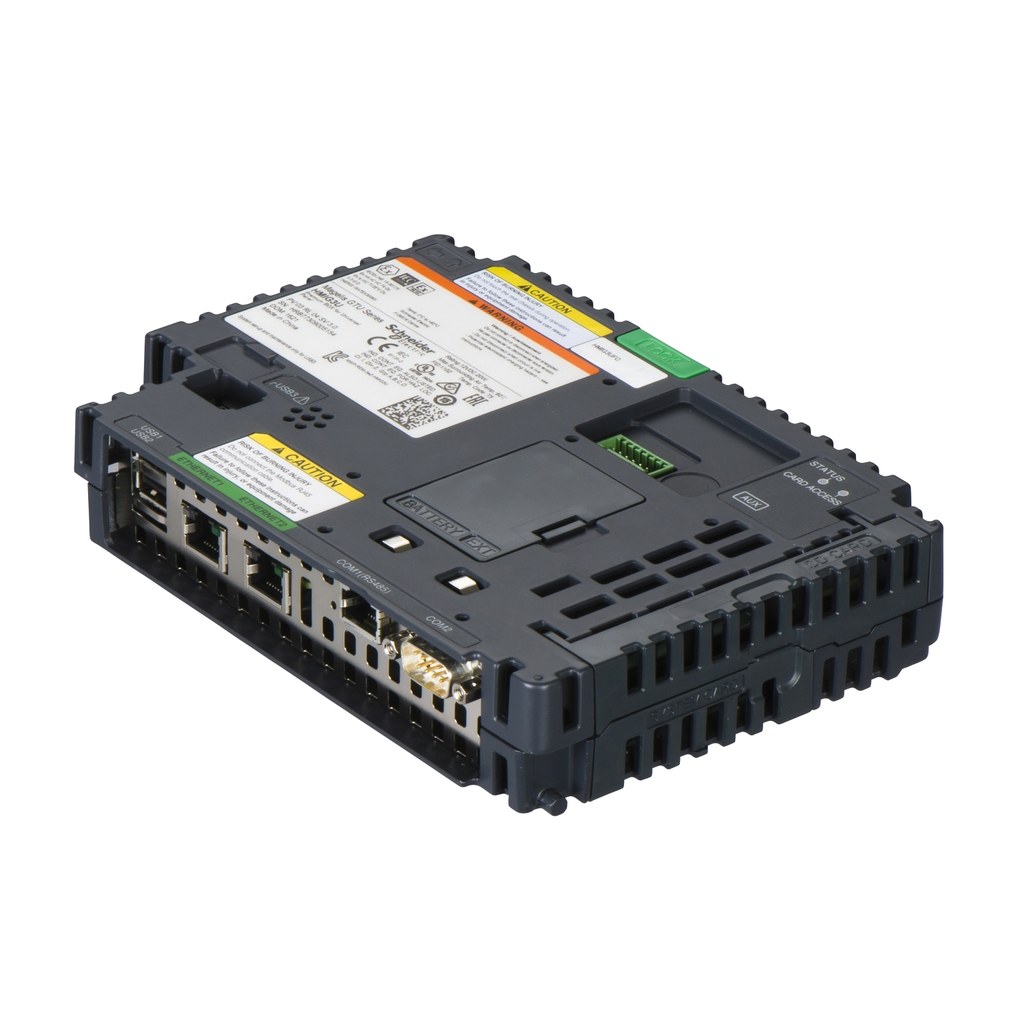

Base unit, Harmony GTU, Premium BOX for Universal Panel

HMIG3U Conformal Coated

SQDHMIG3UFC HMIG3UFC 3606480841620
2148.08 / EA
http://schema.org/OutOfStock
Mayer-DDS-Base unit, Harmony GTU, Premium BOX for Universal Panel-1
  • Country of Origin: China
  • Depth: 45 mm
  • Height: 131 mm
  • Net Weight: 0.9 kg
  • Operating System: Harmony
  • Weight: 0.9 kg
  • Width: 188 mm
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Ambient Air Temperature For Operation : 0-60 °C
    • Standards : CSA C22.2 No 142 || ANSI/ISA 12-12-01 || UL 508 || class I division 2 CSA C22.2 No 213 || IEC 61132-2
    • Product Certifications : CE || cULus || ATEX || IEC-Ex || RCM || GL || KC || cUL || EAC || ABS || BV || CCS || DNV || LR || RINA || UKCA || UKEX
    • Electromagnetic Compatibility : electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
    • Vibration Resistance : 3.5 mm constant amplitude 5-9 Hz) IEC 61131-2 || 9.8 m/s² 9-150 Hz) IEC 61131-2
    • Pollution Degree : 2 IEC 61131-2 ed.3
    • Ambient Air Temperature For Storage : -20-60 °C
    • Relative Humidity : 10-90 % non-condensing
    • Operating Altitude : 6561.68 ft (2000 m)
  • Environmental data
    • Packaging Made With Recycled Cardboard : Yes
    • Environmental Disclosure : ENVPEP1403023EN
    • Packaging Without Single Use Plastic : No
    • Scip Number : a905f611-0f0f-4059-8d6d-22e0091b08d1
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : ENVEOLI1403023EN
    • Take-Back : No
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 1292.7523214285711
  • Complementary
    • Height : 131 mm
    • Software Package : Vijeo Designer run time
    • Communication Port Protocol : Modbus || Uni-Telway || Modbus TCP/IP
    • Net Weight : 0.9 kg
    • Memory Description : 256 MB RAM internal || 512 KB NVRAM backup memory
    • Processor Name : CPU RISC 600 MHz
    • Integrated Connection Type : Ethernet TCP/IP 2 RJ45 || COM1 serial link RJ45 RS485 110...115200 bit/s || COM1 serial link RJ45 RS485 187.5 kbit/s || COM2 serial link SUB-D 9 RS232C/RS422/RS485 110...115200 bit/s || COM2 serial link SUB-D 9 RS232C/RS422/RS485 187.5 kbit/s || auxiliary port terminal block || expansion unit fieldbus card || USB 2.0 port 2 USB type A || USB 2.0 port mini B USB
    • Port Ethernet : 10BASE-T/100BASE-TX/1000BASE-T
    • Width : 188 mm
    • Depth : 45 mm
    • Type Of Cooling : natural convection
    • Data Storage Equipment : 1 GB SD card
    • Operating System : Harmony
  • Specifications
    • Country of Origin : China
    • Width : 188 mm
    • Height : 131 mm
    • Weight : 0.9 kg
    • Range Of Product : Harmony GTU
    • [Us] Rated Supply Voltage : 12...24 V DC power supply
    • Product Or Component Type : base unit
    • Range Compatibility : Harmony GTU
    • Device Short Name : Premium Box
