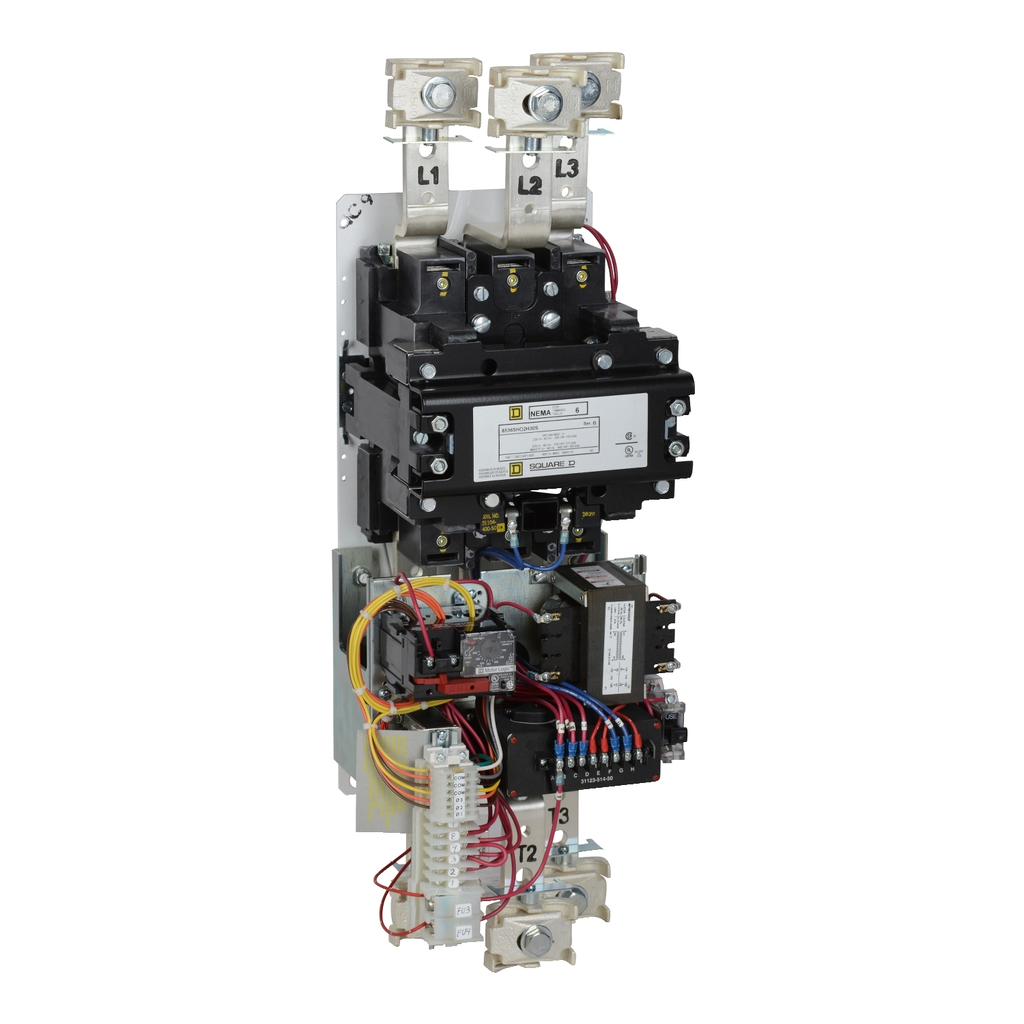

NEMA motor starter, Type S, nonreversing, Size 6, 540A, 400HP at 460VAC, up to 100kA SCCR, 3 phase, 3 pole, Motor Logic, 120VAC coil, open [TAA]

STARTER 600VAC 540AMP NEMA +OP

SQD8536SHO2V02H30S 8536SHO2V02H30S 785901924609
23091.53 / EACH
http://schema.org/OutOfStock
Mayer-DDS-NEMA motor starter, Type S, nonreversing, Size 6, 540A, 400HP at 460VAC, up to 100kA SCCR, 3 phase, 3 pole, Motor Logic, 120VAC coil, open [TAA]-1
  • Depth: 253 mm
  • Warranty Length: 18 mth
  • Weight: 38825 g
Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 6 non-reversing starter has a 540 ampere rating. This NEMA Size 6 motor starter has 3 phase ratings of 150 HP at 200 VAC, 200 HP at 230 VAC and 400 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a Motor Logic overload relay with a 180A to 540A range to sense over current conditions. This NEMA starter has a 100 kA maximum SCCR per UL508A when protected by an appropriate fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This NEMA starter is an open device without an enclosure. This starter is 28.06 inches tall, 12.34 inches wide and 9.00 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified. This NEMA starter has a 65 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker.
QTY
  • Product Description
  • Features
  • Specifications
Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 6 non-reversing starter has a 540 ampere rating. This NEMA Size 6 motor starter has 3 phase ratings of 150 HP at 200 VAC, 200 HP at 230 VAC and 400 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a Motor Logic overload relay with a 180A to 540A range to sense over current conditions. This NEMA starter has a 100 kA maximum SCCR per UL508A when protected by an appropriate fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This NEMA starter is an open device without an enclosure. This starter is 28.06 inches tall, 12.34 inches wide and 9.00 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified. This NEMA starter has a 65 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker.
  • Features
    • Flexible with four overload relays types
    • Customizable with hundreds of combinations
    • Streamlines installation, wiring, maintenance and field modifications
    • Reliable build for long mechanical life and electrical endurance
    • This product is TAA compliant.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Rated Power In Hp : 150 HP 200 V AC200 HP 230 V AC400 HP 460 V AC, 400 HP 575 V AC
    • Control Circuit : control circuit transformer
    • Line Rated Current : 540 A
    • Uc Control Circuit Voltage : 110 V AC 50 Hz120 V AC 60 Hz
    • Ue Rated Operational Voltage : 600 V AC
  • Important Information Attributes
    • Persona Type Ids : EU, LC, OM, OM8, PB
    • Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Certificate Agency : UL Listed, CSA, NEMA
    • Carbon Footprint Of The Distribution Phase A4 : 32.23173627821903, 32 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 67 kg CO2 eq., 67.18178762264391
    • Carbon Footprint Of The Installation Phase A5 : 4.196023602129774, 4 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 277 kg CO2 eq., 277.1006397055811
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 9 455 kg CO2 eq., 9455.472352161385
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-08-25
    • Return Indicator : N
    • Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : Outside of Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • China Rohs Label : 7
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Control Type : no control units
    • Electrical Connection : screw clamp terminals
    • Energy Efficiency Optimized : False
    • Local Signalling : without pilot light
    • Motor Starter Type : non reversing
    • Number Of Poles : 3P
    • Phase : 3 phase
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : motor starter
    • Provided Equipment : 2 fuses (primary), 2 fuses (secondary)
    • Range Of Product : S
    • Returnability : No
    • Software Version : v6.2.4
    • Sustainable Packaging : No
    • Thermal Overload Type : solid state Motor Logic class 10/20
    • Total Lifecycle Carbon Footprint : 9 836 kg CO2 eq.
    • Database Version : 2024-01
    • Data Source : extrapolated product
    • Height Nominal : 713 mm
    • Width Nominal : 268 mm
    • Nbr. Of Units In Pkg. : 1
    • Customs Code : 8536504000
    • Warranty In Months : 18
    • Functional Unit Description : When a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functionsTo control, regulate, and protect the installation from overload and short circuits in a circuit with the rated voltage Ue and rated current In during the reference service life of the product of 20 years.
    • Functional Unit Quantity : 1
    • Functional Unit Unit : unit
    • Reference Lifetime In Y : 20
    • Recyclability Potential In % : 73
  • Environment Attributes Main
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 9836.182539369958
    • Environmental Disclosure : ENVPEP2506062EN
    • Eu Rohs Directive : Compliant By Exemption
    • Nema Degree Of Protection : not rated (open device)
    • Nema Size : 6
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2506062EN
    • Pep Verification Date : 2025-09-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Phase : 3 phase
    • Product Or Component Type : motor starter
    • Provided Equipment : 2 fuses (primary), 2 fuses (secondary)
    • Range Of Product : S
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico, United States
    • Compliance : TAA Compliant
    • Weight : 38825 g
    • Depth : 253 mm
