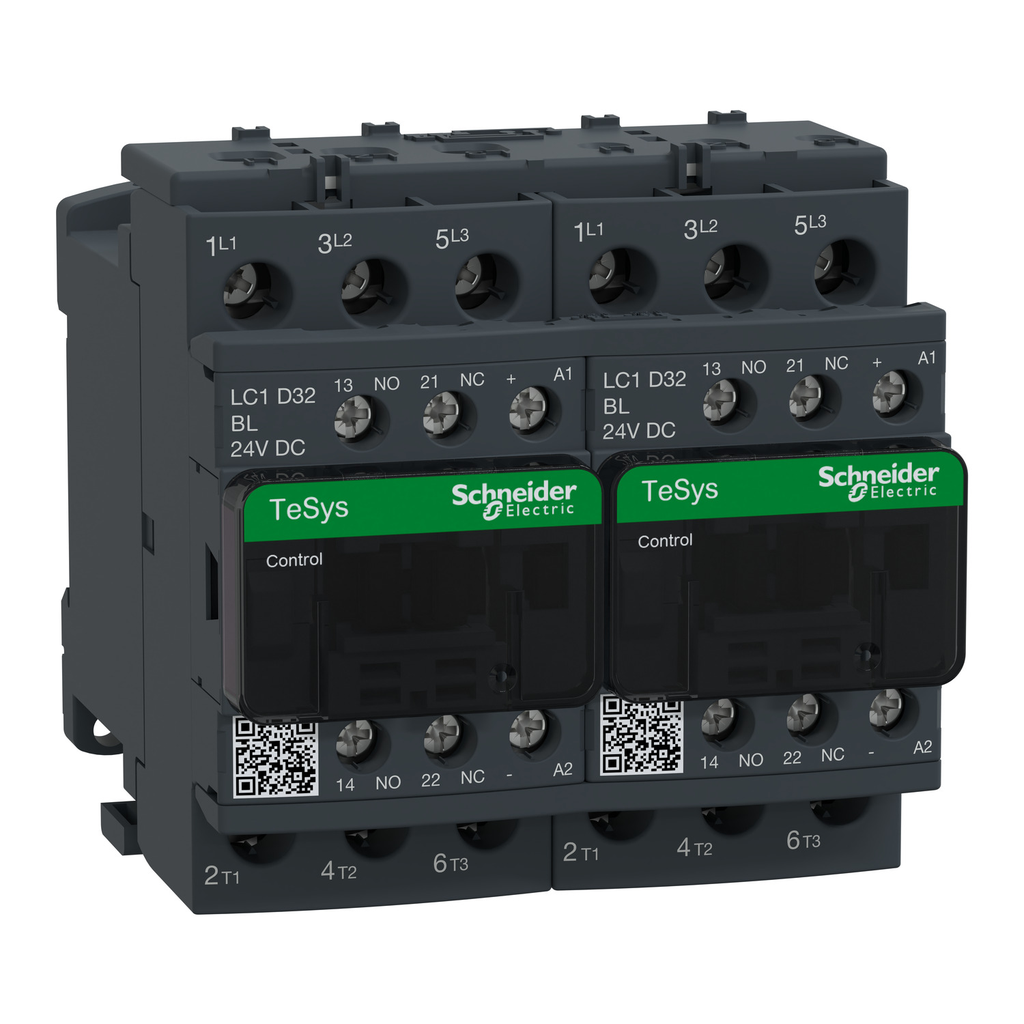

TeSys Deca reversing contactor, 3 poles (3NO),for motor control applications 32A/440V,AC-3/3e 15kW@400V. Pre-wired power connections, with mechanical interlock,without electrical interlocking. It provides a low consumption 12V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures reliability and durability to standard applications. Compact (90mm width), with DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EN).

• Environment
• Mechanical Robustness : vibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor closed15 Gn for 11 ms || shocks contactor open8 Gn for 11 ms
• Ambient Air Temperature For Operation : -40-60 °C || 60-70 °C with derating
• Height : 85 mm
• Climatic Withstand : IACS E10 || IEC 60947-1 Annex Q category D
• Pollution Degree : 3
• Net Weight : 1.127 kg
• Flame Retardance : V1 conforming to UL 94
• Ambient Air Temperature For Storage : -60-80 °C
• Protective Treatment : TH IEC 60068-2-30
• Ip Degree Of Protection : IP20 front face IEC 60529
• Operating Altitude : 0...9842.52 ft (0...3000 m)
• Fire Resistance : 850 °C IEC 60695-2-1
• Width : 90 mm
• Depth : 101 mm
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP110230EN
• Packaging Without Single Use Plastic : Yes
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Scip Number : 50ae7612-fd2e-41e4-a369-50d0dea6e592
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Circularity Profile : ENVEOLI1102030EN
• Take-Back : No
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 45.65318918918919
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 6.476393994052206
• Carbon Footprint Of The Distribution Phase [A4] : 0.3 kg CO2 eq.
• Carbon Footprint Of The Installation Phase [A5] : 0.1 kg CO2 eq.
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 56 kg CO2 eq.
• Eu Rohs Directive : Compliant with Exemptions
• Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 2.98829058251628
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 55.55297896543043
• Complementary
• Non-Overlap Time : 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
• Minimum Switching Current : 5 mA for signalling circuit
• Control Circuit Voltage Limits : 0.1...0.3 Uc (-40-70 °C):drop-out DC || 0.8...1.25 Uc (-40-60 °C):operational DC || 1...1.25 Uc (60-70 °C):operational DC
• Hold-In Power Consumption In W : 2.4-2.4 W 20 °C
• Insulation Resistance : > 10 MOhm for signalling circuit
• Coil Technology : built-in bidirectional peak limiting diode suppressor
• Time Constant : 40 ms
• Minimum Switching Voltage : 17 V for signalling circuit
• Signalling Circuit Frequency : 25...400 Hz
• Inrush Power In W : 2.4-2.4 W 20 °C)
• Auxiliary Contacts Type : mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
• Specifications
• Country of Origin : France
• Width : 90 mm
• Height : 85 mm
• Weight : 1.127 kg
• Product Certifications : RINA || GOST || CCC || UL || LROS (Lloyds register of shipping) || CSA || DNV || GL || BV || CB
• Interlocking Type : mechanical
• [Uc] Control Circuit Voltage : 12 V DC
• [Ue] Rated Operational Voltage : power circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC
• Power Dissipation Per Pole : 2 W AC-3 || 5 W AC-1
• Average Impedance : 2 mOhm - Ith 50 A 50 Hz for power circuit
• Auxiliary Contact Composition : 1 NO + 1 NC
• [Ith] Conventional Free Air Thermal Current : 10 A (at 60 °C) for signalling circuit || 50 A (at 60 °C) for power circuit
• Mounting Support : rail || plate
• Control Circuit Type : DC low consumption
• Standards : CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508
• Safety Reliability Level : B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
• Contactor Application : resistive load || motor control
• Rated Breaking Capacity : 550 A at 440 V for power circuit conforming to IEC 60947
• Product Or Component Type : reversing contactor
• Irms Rated Making Capacity : 140 A AC for signalling circuit conforming to IEC 60947-5-1 || 250 A DC for signalling circuit conforming to IEC 60947-5-1 || 550 A at 440 V for power circuit conforming to IEC 60947
• Product Name : TeSys D
• Associated Fuse Rating : 10 A gG for signalling circuit conforming to IEC 60947-5-1 || 63 A gG at <= 690 V coordination type 1 for power circuit || 63 A gG at <= 690 V coordination type 2 for power circuit
• [Uimp] Rated Impulse Withstand Voltage : 6 kV IEC 60947
• Connections - Terminals : control circuit screw clamp terminals 1 1-4 mm²flexible without cable end || control circuit screw clamp terminals 2 1-4 mm²flexible without cable end || control circuit screw clamp terminals 1 1-4 mm²flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end || control circuit screw clamp terminals 1 1-4 mm²solid || control circuit screw clamp terminals 2 1-4 mm²solid || power circuit screw clamp terminals 1 2.5-10 mm²flexible without cable end || power circuit screw clamp terminals 2 2.5-10 mm²flexible without cable end || power circuit screw clamp terminals 1 1-10 mm²flexible with cable end || power circuit screw clamp terminals 2 1.5-6 mm²flexible with cable end || power circuit screw clamp terminals 1 1.5-10 mm²solid || power circuit screw clamp terminals 2 2.5-10 mm²solid
• Range : TeSys
• Pole Contact Composition : 3 NO
• Device Presentation : preassembled with reversing power busbar
• Utilisation Category : AC-3 || AC-1
• [Ie] Rated Operational Current : 32 A (at <60 °C) at <= 440 V AC AC-3 for power circuit || 50 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
• Maximum Operating Rate : 3600 cyc/h 60 °C
• Tightening Torque : control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || power circuit 2.5 N.m screw clamp terminals flat Ø 6 mm || power circuit 2.5 N.m screw clamp terminals Philips No 2
• Electrical Durability : 1.65 Mcycles 32 A AC-3 <= 440 V || 1.4 Mcycles 50 A AC-1 <= 440 V
• Mechanical Durability : 30 Mcycles
• Poles Description : 3P
• Operating Time : 65.45...88.55 ms closing || 20...30 ms opening
• Overvoltage Category : III
• Motor Power Kw : 7.5 kW at 220...230 V AC 50 Hz || 15 kW at 380...400 V AC 50 Hz || 15 kW at 415...440 V AC 50 Hz || 18.5 kW at 500 V AC 50 Hz || 18.5 kW at 660...690 V AC 50 Hz
• Maximum Horse Power Rating : 2 hp at 115 V AC 60 Hz for 1 phase motors || 5 hp at 230/240 V AC 60 Hz for 1 phase motors || 7.5 hp at 200/208 V AC 60 Hz for 3 phase motors || 10 hp at 230/240 V AC 60 Hz for 3 phase motors || 20 hp at 460/480 V AC 60 Hz for 3 phase motors || 30 hp at 575/600 V AC 60 Hz for 3 phase motors
• [Ui] Rated Insulation Voltage : power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || signalling circuit 690 V IEC 60947-1 || signalling circuit 600 V CSA || signalling circuit 600 V UL
• Device Short Name : LC2D
• [Icw] Rated Short-Time Withstand Current : 60 A 40 °C - 10 min for power circuit || 138 A 40 °C - 1 min for power circuit || 260 A 40 °C - 10 s for power circuit || 430 A 40 °C - 1 s for power circuit || 100 A - 1 s for signalling circuit || 120 A - 500 ms for signalling circuit || 140 A - 100 ms for signalling circuit
• Protective Cover : with
