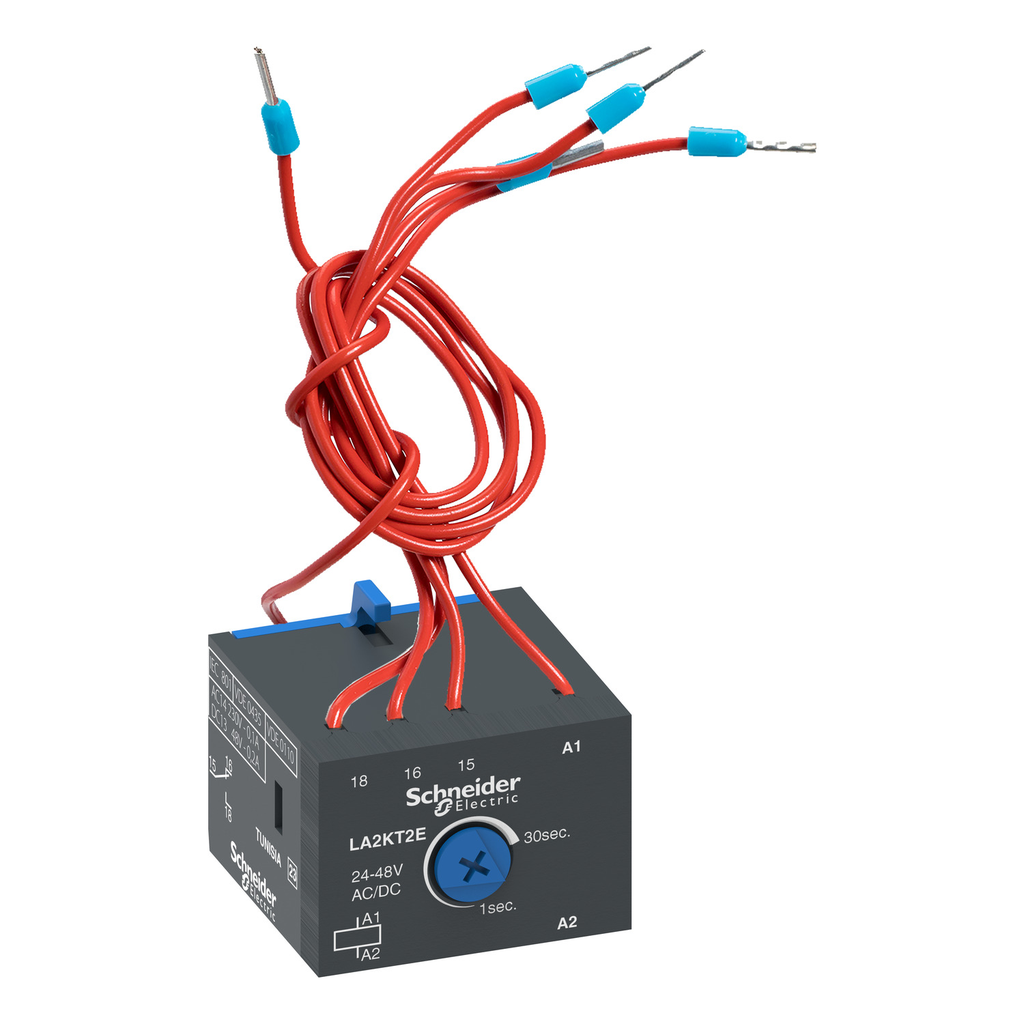

TeSys K electronic time delay contact block, for contactors LC.K, LP.K, CA.K. It provides 1C/O contact rated up to 2A 240V AC, with an on-delay setting range 1-30s. To be used for contactors with 24-48V AC/DC coils (B7 to E7, BD to ED). Front mounting by clip-on, connections by attached wires to the contactor. It conforms to RoHS/REACh regulation.

• Conformance Attributes
• Standards : EN/IEC 60947-5-1
• Complementary Attributes
• UE Rated Operational Voltage : 24...48 V AC/DC control circuit, 240 V AC signalling circuit
• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB, SI
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Range Compatibility : TeSys K LC1K, TeSys K CA2K, TeSys K CA3K, TeSys K CA4K
• Range Of Product : TeSys K control relay, TeSys K
• Reset Time : 1.5 s during time delay, 0.5 s after time delay
• Carbon Footprint Of The Distribution Phase A4 : 0.0052306666666666665, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.10090666666666666
• Carbon Footprint Of The Installation Phase A5 : 0.0038499555555555555, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.8 kg CO2 eq., 0.8185244444444444
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 3 kg CO2 eq., 3.1606
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-24
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Compatibility Code : LA1
• Device Short Name : LA1
• Energy Efficiency Optimized : False
• Insulation Resistance : > 10 MOhm
• Package Weight Lbs : 40.000 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : time delay auxiliary contact block
• Protective Treatment : TC IEC 60068
• Range : TeSys
• Returnability : No
• Shielding Continuity Terminal : without
• Sustainable Packaging : Yes
• Timer Type : on delay
• Total Lifecycle Carbon Footprint : 4 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• ITH Conventional Free Air Thermal Current : 2 A for signalling circuit
• Connections Terminals : slip-on terminals
• Pep Code : ENVPEP2106022EN
• Pep Verification Date : 2025-06-17
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : To add instantaneous auxiliary contact blocks in front face on TeSys k contactors as NO and/or NC contacts for 20 years.
• Functional Unit Unit : unit
• Product Kit Identifier : N
• Product Manager : NANNAN YAN
• Environment Attributes Main
• EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Carbon Footprint : 4.0891117333333336
• Environmental Disclosure : ENVPEP2106022EN
• IP Degree Of Protection : IP20 conforming to IEC 60529
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2106022EN
• Pep Verification Date : 2025-06-17
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Range Of Product : TeSys K control relay, TeSys K
• Product Or Component Type : time delay auxiliary contact block
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
